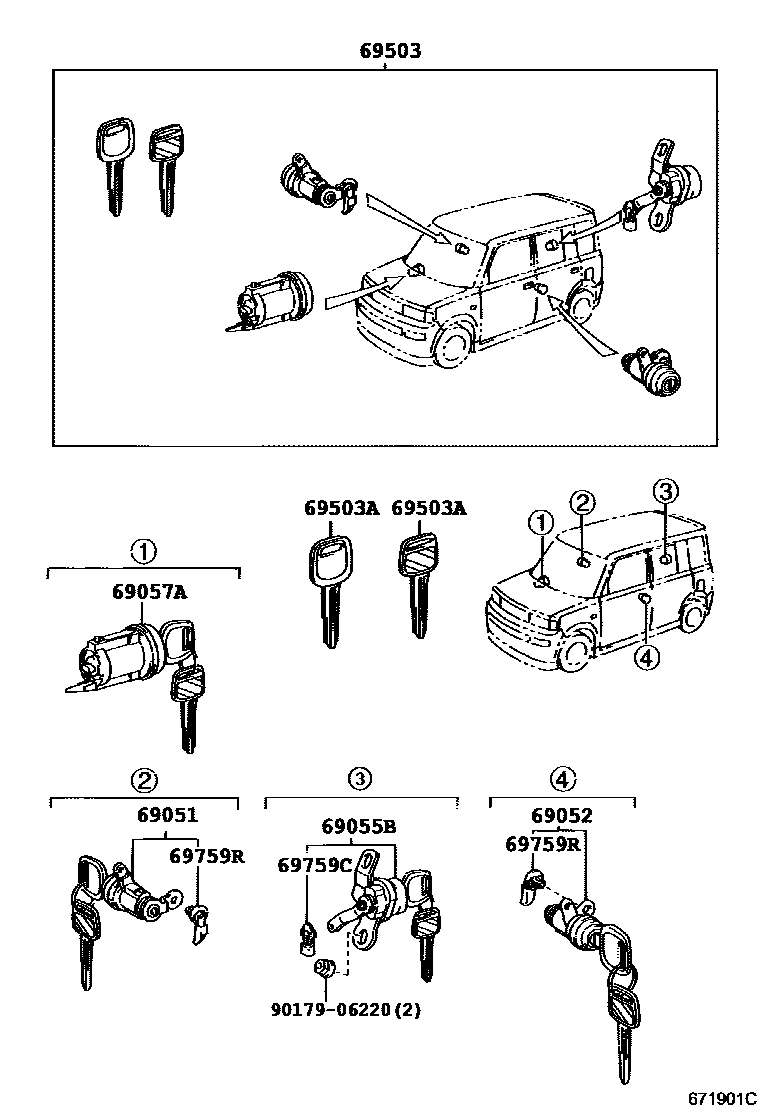

Toyota BB/OPEN DECK — LOCK CYLINDER SET

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-52050i200001-200208

main69051-52060i200001-200208

main69051-52060i200208-200303

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-52050i200001-200208

main69052-52060i200001-200208

main69052-52060i200208-200303

69055BCYLINDER & KEY SET, BACK DOOR LOCK

main69055-52050i200001-200208

main69055-52110i200001-200208

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-52010i200001-200208

69503CYLINDER SET, LOCK

main69005-52120i200001-200208

main69005-52680i200208-200304

69503AKEY, BLANK

main90999-00166i200001-200208

main90999-00167i200001-200303

main90999-00186i200208-200512

main90999-00199i200208-200512

69759CSNAP, BACK DOOR LOCK CYLINDER

main69759-30050i200001-200304

69759RSNAP, FRONT DOOR LOCK CYLINDER

main69759-32090i200001-200512

main69759-32100i200001-200512

9017906220

main90179-06220

9 parts on this diagram · 3 diagrams in section

LOCK CYLINDER SET for Toyota BB/OPEN DECK

This section contains 17 genuine Toyota parts for the LOCK CYLINDER SET system of the Toyota BB/OPEN DECK. Key components include: CYLINDER & KEY SET, DOOR LOCK, RH, CYLINDER & KEY SET, DOOR LOCK, LH, CYLINDER & KEY SET, BACK DOOR LOCK, CYLINDER & KEY SET, IGNITION SWITCH LOCK.
