Toyota BB/OPEN DECK — INTERIOR LAMP

81240LAMP ASSY, ROOM, NO.1

main81240-12060-P0i200001-200208

LT.GRAY,TRIM92,93

main81240-12060-P0i200106-200208

LT.GRAY,TRIM96,97

main81240-12060-P0i200208-200303

LT.GRAY,TRIM16,17

main81240-12060-P0i200208-200512

LT.GRAY,TRIM9#

81240BBULB, ROOM LAMP, NO.1

main90981-14011i200001-200512

main90981-14011i200208-200512

81240DLAMP ASSY, ROOM, NO.2

main81240-52010-B0i200001-200208

main81240-52010-B0i200208-200512

81240EBULB, ROOM LAMP, NO.2

main90981-14011i200001-200208

81241LENS, ROOM LAMP, NO.1

main81241-12020i200001-200512

81241ALENS, ROOM LAMP, NO.2

main81241-44010i200001-200208

81250LAMP ASSY, ROOM, NO.2

main81250-52020-B0i200001-200208

LT.GRAY,TRIM92,93

81250BBULB, ROOM LAMP, NO.2

main90981-12029i200001-200208

main90981-14002i200001-200208

81253BODY, REAR ROOM LAMP

main81253-52010-B0i200001-200208

LT.GRAY,TRIM92,93

81367BATTERY, ROOM LAMP

main81367-52020i200001-200208

81398BRACKET, REAR LOOM LAMP

main81398-52020i200001-200208

9015960594

main90159-60594

9016430008

main90164-30008

9354014516

main93540-14516

9356054010

main93560-54010

15 parts on this diagram · 1 diagram in section

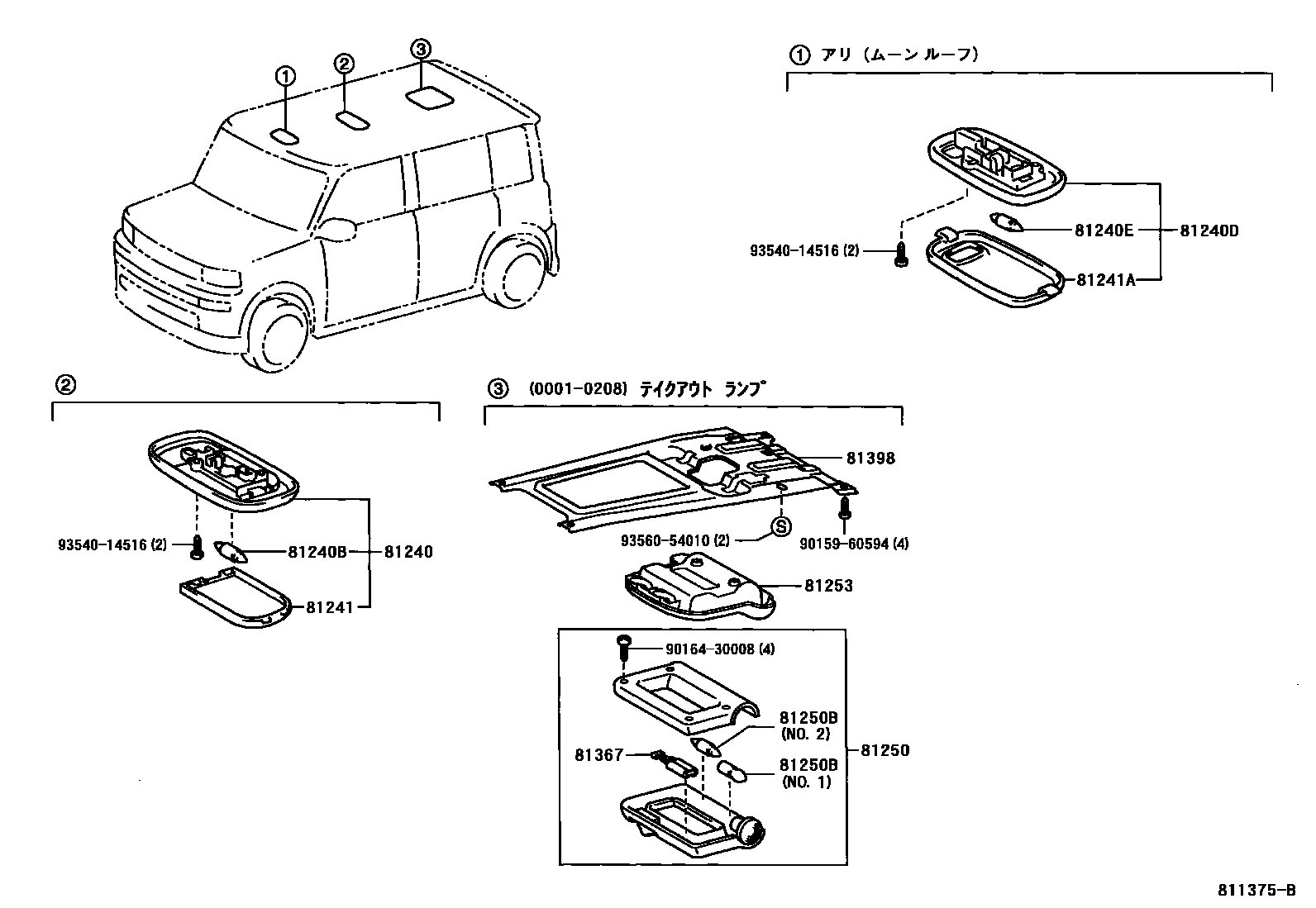

INTERIOR LAMP for Toyota BB/OPEN DECK

This section contains 15 genuine Toyota parts for the INTERIOR LAMP system of the Toyota BB/OPEN DECK. Key components include: LAMP ASSY, ROOM, NO.1, BULB, ROOM LAMP, NO.1, LAMP ASSY, ROOM, NO.2, BULB, ROOM LAMP, NO.2, LENS, ROOM LAMP, NO.1.
