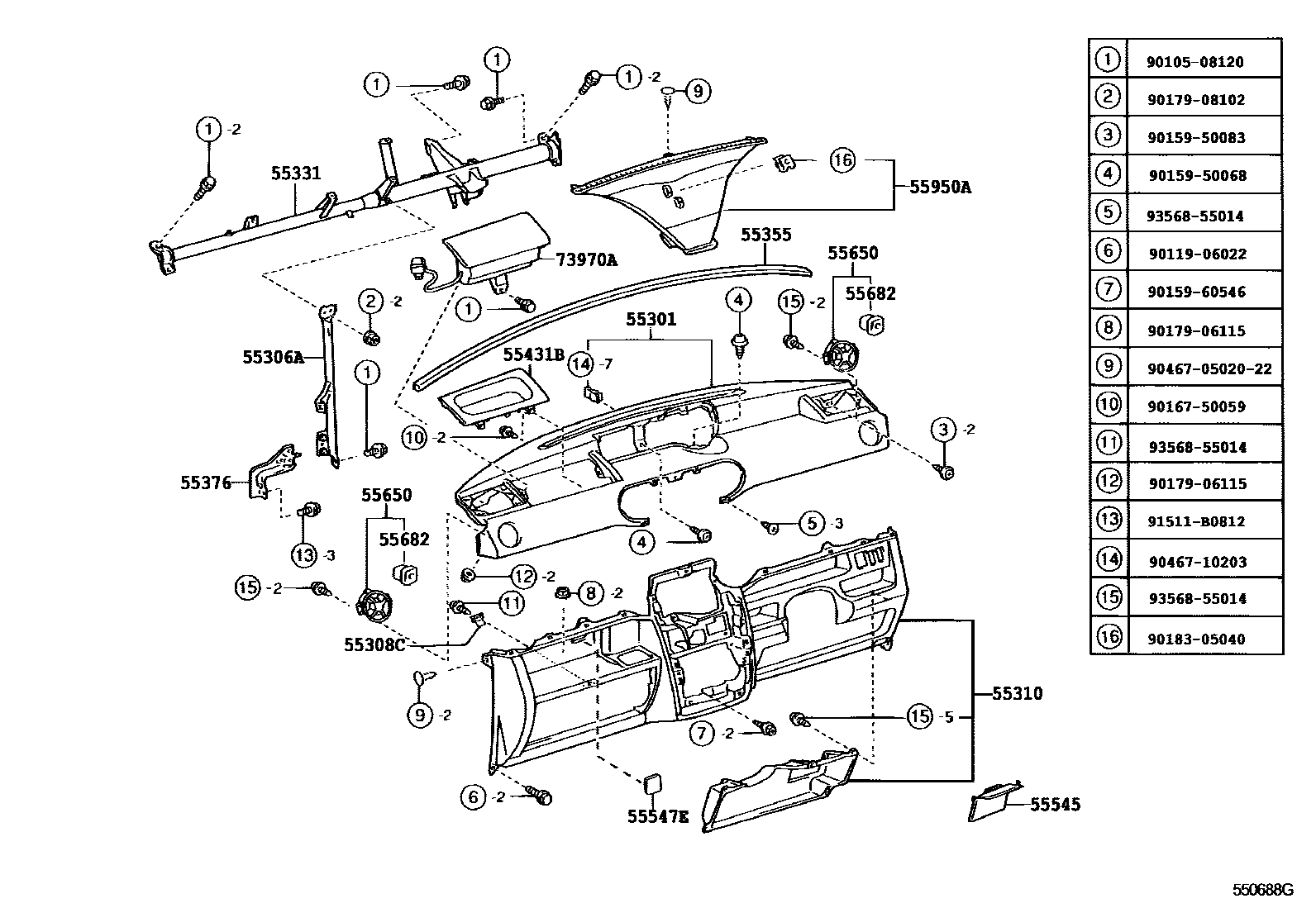

Toyota BB/OPEN DECK — INSTRUMENT PANEL & GLOVE COMPARTMENT
55301PANEL SUB-ASSY, INSTRUMENT
DK.GRAY,TRIM9#
DK.GRAY,TRIM92,93
DK.GRAY,TRIM96,97
DK.GRAY,TRIM16,17
55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER
55310PANEL ASSY, INSTRUMENT, LOWER
DK.GRAY,TRIM9#
DK.GRAY,TRIM92,93
LT.GRAY,TRIM96,97
LT.GRAY,TRIM16,17
55331REINFORCEMENT, INSTRUMENT PANEL
55355CUSHION, INSTRUMENT PANEL, NO.1
55376BRACKET, INSTRUMENT PANEL MOUNTING, NO.1
55431BPANEL, INSTRUMENT PANEL FINISH, UPPER
DK.GRAY,TRIM92,93
55545COVER, FUSE BOX OPENING
DK.GRAY,TRIM92,93
DK.GRAY,TRIM9#
LT.GRAY,TRIM96,97
LT.GRAY,TRIM16,17
55547ECOVER, INSTRUMENT PANEL HOLE, NO.3
DK.GRAY,TRIM9#
DK.GRAY,TRIM92,93
LT.GRAY,TRIM16,17
LT.GRAY,TRIM96,97
55650REGISTER ASSY, INSTRUMENT PANEL, NO.1
DK.GRAY,TRIM16,17
DK.GRAY,TRIM96,97
BLACK,TRIM92,93
BLACK,TRIM9#
55682SPRING, INSTRUMENT PANEL REGISTER SUPPORT
55950ANOZZLE ASSY, DEFROSTER
73970AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER
DK.GRAY,TRIM92,93
DK.GRAY,TRIM96,97
DK.GRAY,TRIM92,93
DK.GRAY,TRIM16,17
DK.GRAY,TRIM9#
9010508120
main90105-08120
9011906022
main90119-06022
9015950068
main90159-50068
9015950083
main90159-50083
9015960546
main90159-60546
9016750059
main90167-50059
9017906115
main90179-06115
9017908102
main90179-08102
9018305040
main90183-05040
904670502022
main90467-0502022
9046710203
main90467-10203
91511B0812
main91511-B0812
9356855014
main93568-55014
27 parts on this diagram · 7 diagrams in section
INSTRUMENT PANEL & GLOVE COMPARTMENT for Toyota BB/OPEN DECK
This section contains 62 genuine Toyota parts for the INSTRUMENT PANEL & GLOVE COMPARTMENT system of the Toyota BB/OPEN DECK. Key components include: REGISTER SUB-ASSY, INSTRUMENT PANEL, NO.1, PANEL SUB-ASSY, INSTRUMENT, BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1, BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER, PANEL ASSY, INSTRUMENT, LOWER.
