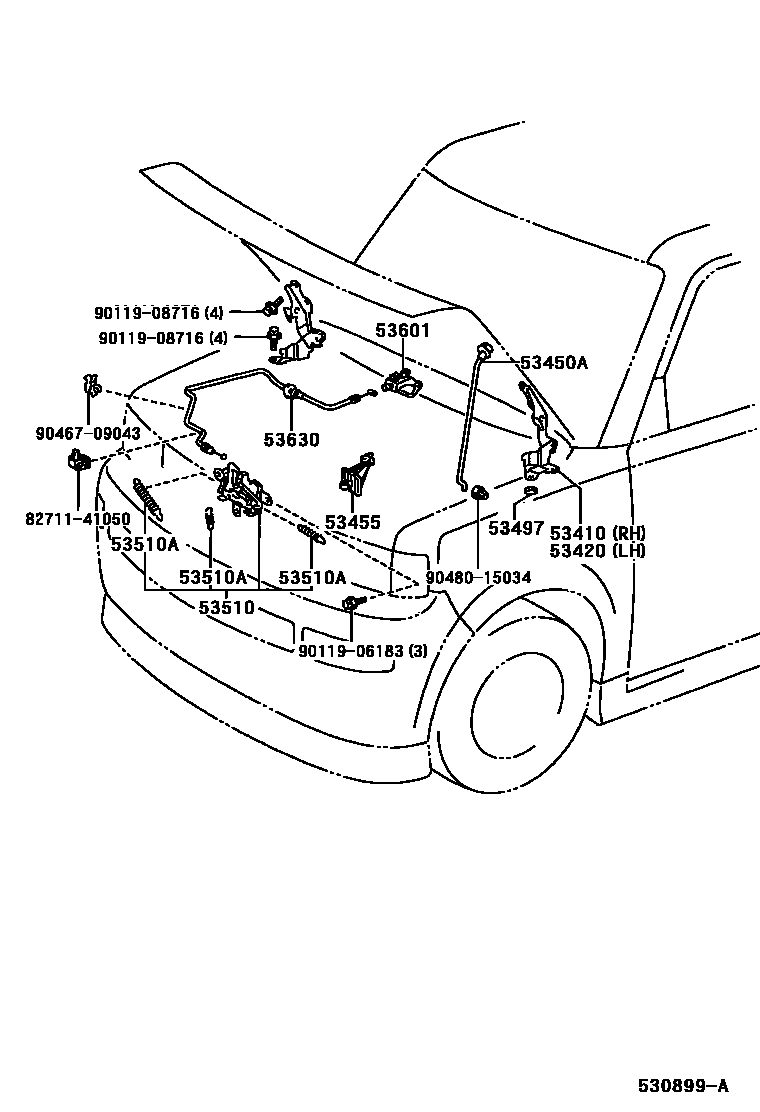

Toyota BB/OPEN DECK — HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-52040i200001-200208

53420HINGE ASSY, HOOD, LH

main53420-52040i200001-200208

53450ASUPPORT ASSY, HOOD, LH

main53440-52030i200001-200208

53455CLAMP, HOOD SUPPORT ROD

main53455-52050i200001-200208

53497PAD, HOOD HINGE, NO.1

main53497-10020×4i200001-200208

main53497-12050×4i200001-200208

main53497-42010×4i200208-200512

53510LOCK ASSY, HOOD

main53510-52020i200001-200208

main53510-52240i200208-200512

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09052i200208

main90506-12063i200001-200208

main90506-16077i200003-200208

main90506-18067i200001-200003

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-52010-B3i200208-200303

DK.GRAY,TRIM16,17

main53601-52010-C0i200001-200208

BLACK,TRIM92,93

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-52010i200001-200208

main53630-52090i200208-200512

8271141050WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-41050

9011906183

main90119-06183

9011908716

main90119-08716

9046709043

main90467-09043

9048015034

main90480-15034

14 parts on this diagram · 1 diagram in section

HOOD LOCK & HINGE for Toyota BB/OPEN DECK

This section contains 14 genuine Toyota parts for the HOOD LOCK & HINGE system of the Toyota BB/OPEN DECK. Key components include: HINGE ASSY, HOOD, RH, HINGE ASSY, HOOD, LH, SUPPORT ASSY, HOOD, LH, CLAMP, HOOD SUPPORT ROD, PAD, HOOD HINGE, NO.1.
