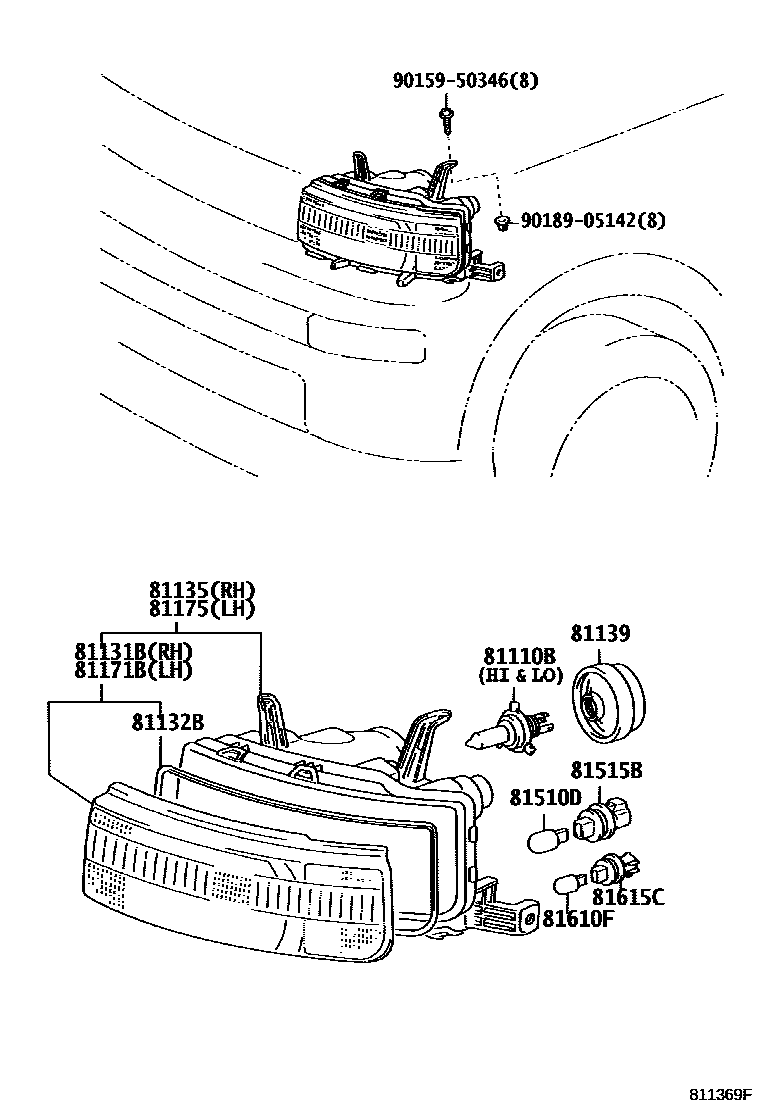

Toyota BB/OPEN DECK — HEADLAMP

0001 1 0002 1

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13046×2iNCP3#200304-200512

main90981-13058×2iNCP3#200208-200512

main90981-22004×2iNCP3#200001-200208

sub90981-13055

81131BHEAD LAMP LENS, RH

main81131-52090iNCP3#200001-200208

81132BGASKET, HEADLAMP LENS

main81132-52090×2iNCP3#200001-200208

81135UNIT ASSY, HEADLAMP, RH

main81130-52090iNCP3#200001-200208

main81145-52500iNCP3#200304-200512

81139COVER, HEADLAMP SOCKET

main90075-65002×2iNCP3#200001-200208

81171BHEAD LAMP LENS, LH

main81171-52090iNCP3#200001-200208

81175UNIT ASSY, HEADLAMP, LH

main81170-52090iNCP3#200001-200208

main81185-52500iNCP3#200304-200512

81510DBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15011×2iNCP3#200001-200208

81515BSOCKET, FRONT TURN SIGNAL LAMP

main90075-60028×2iNCP3#200001-200208

81610FBULB(FOR CLEARANCE LAMP)

main99132-12050×2iNCP3#200001-200208

81615CSOCKET & WIRE, CLEARANCE LAMP

main90075-60001×2iNCP3#200001-200208

9015950346

main90159-50346

9018905142

main90189-05142

13 parts on this diagram · 2 diagrams in section
