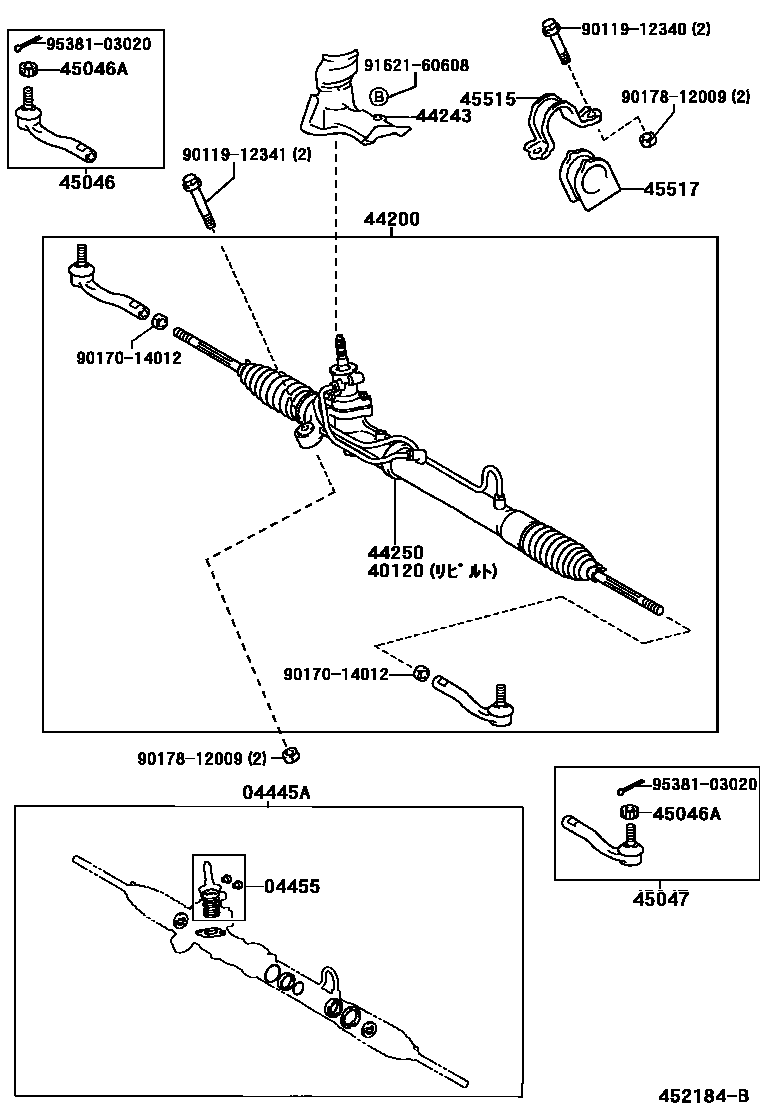

Toyota BB/OPEN DECK — FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

04445AGASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)

main04445-52010iNCP35200001-200512

main04445-52020iNCP30,31,34200001-200512

04455GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE

main04455-52010iNCP30,31,34200001-200512

40120GEAR ASSY,POWER STEERING,REBUILT

main40120-52080iNCP30,31,34200001-200512

main40120-52090iNCP35200001-200512

main40120-52130iNCP30,31200106-200512

main40120-52140iNCP35..S200106-200512

44200LINK ASSY, POWER STEERING

main44200-52110iNCP30,31,34200001-200512

main44200-52120iNCP35200001-200512

sub44250-52090

sub45046-19175

sub90170-14012

main44200-52250iNCP30,31200208-200512

main44200-52260iNCP35..S200208-200512

sub44250-52140

sub45046-19175

sub90170-14012

44243INSULATOR, POWER STEERING RACK HOUSING HEAT

main44243-52020iNCP35200001-200208

main44243-52030iNCP30,31,34200001-200109

sub44243-52031

main44243-52031iNCP30,31,34200109-200208

sub44243-52032

main44243-52032iNCP30,31,34200208-200512

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-52080iNCP30,31,34200001-200208

sub44200-52110

main44250-52090iNCP35200001-200208

main44250-52130iNCP30,31200106-200208

sub44200-52250

main44250-52140iNCP35..S200106-200208

45046END SUB-ASSY, TIE ROD, RH

main45046-19175iNCP3#200001-200512

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iNCP3#200001-200512

45047END SUB-ASSY, TIE ROD, LH

main45046-19175iNCP3#200001-200512

45515BRACKET, STEERING RACK HOUSING, NO.2

main45515-52010iNCP30,31,34200001-200512

main45515-52020iNCP35200001-200208

45517GROMMET, STEERING RACK HOUSING, NO.2

main45517-52010iNCP30,31,34200001-200512

main45517-52030iNCP35200001-200208

9011912340

main90119-12340

9011912341

main90119-12341

9017014012

main90170-14012

9017812009

main90178-12009

9162160608

main91621-60608

9538103020

main95381-03020

17 parts on this diagram · 6 diagrams in section
