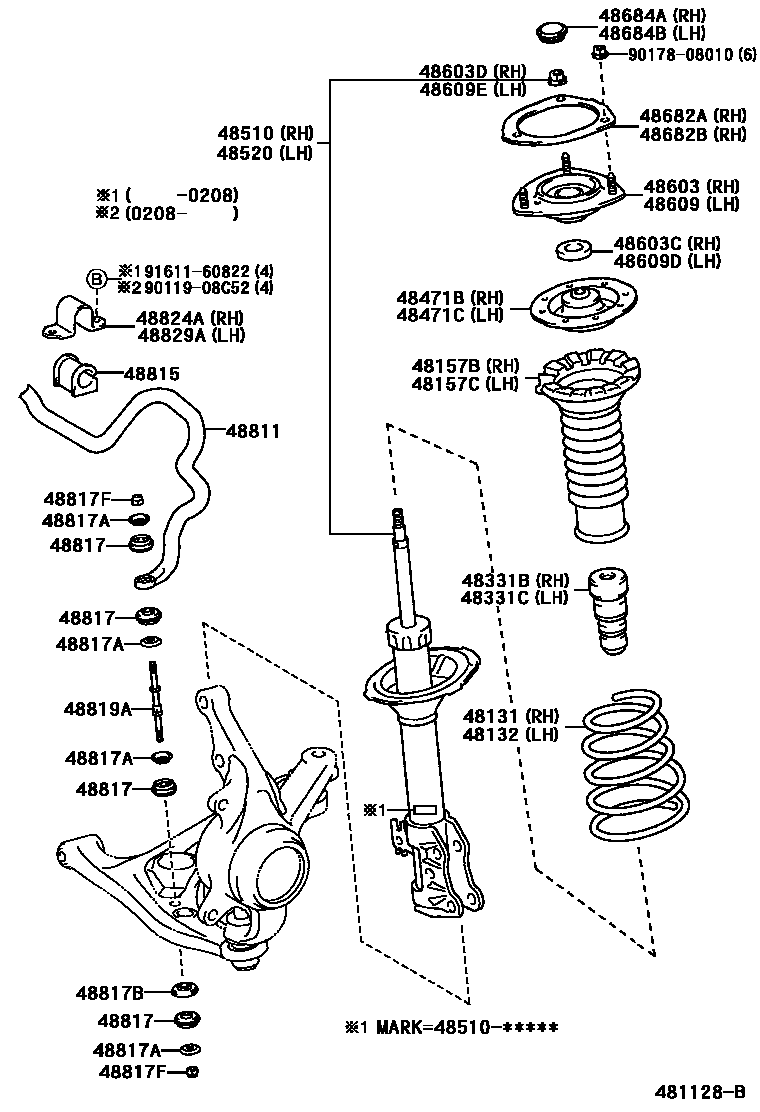

Toyota BB/OPEN DECK — FRONT SPRING & SHOCK ABSORBER
48131SPRING, FRONT COIL, RH
48132SPRING, FRONT COIL, LH
48157BINSULATOR, FRONT COIL SPRING, UPPER RH
48157CINSULATOR, FRONT COIL SPRING, UPPER LH
48331BBUMPER, FRONT SPRING, RH
48331CBUMPER, FRONT SPRING, LH
48471BSEAT, FRONT COIL SPRING, UPPER RH
48471CSEAT, FRONT COIL SPRING, UPPER LH
48510ABSORBER ASSY, SHOCK, FRONT RH
48520ABSORBER ASSY, SHOCK, FRONT LH
48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
48603CSEAL, DUST(FOR FRONT SUSPENSION SUPPORT RH)
48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)
48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
48609DSEAL, DUST(FOR FRONT SUSPENSION SUPPORT LH)
48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)
48682ASUPPORT, FRONT SUSPENSION, NO.2 RH
48682BSUPPORT, FRONT SUSPENSION, NO.2 LH
48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH
48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH
48811BAR, STABILIZER, FRONT
48815BUSH, FRONT STABILIZER BAR, NO.1
48817CUSHION, FRONT STABILIZER
sub48817-52011
48817ARETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
48817BRETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR)
48817FNUT(FOR FRONT STABILIZER BAR)
48819ABOLT, FRONT STABILIZER
48824ABRACKET, FRONT STABILIZER, NO.1 RH
48829ABRACKET, FRONT STABILIZER, NO.1 LH
9011908C52
main90119-08C52
9017808010
main90178-08010
9161160822
main91611-60822
32 parts on this diagram · 1 diagram in section
