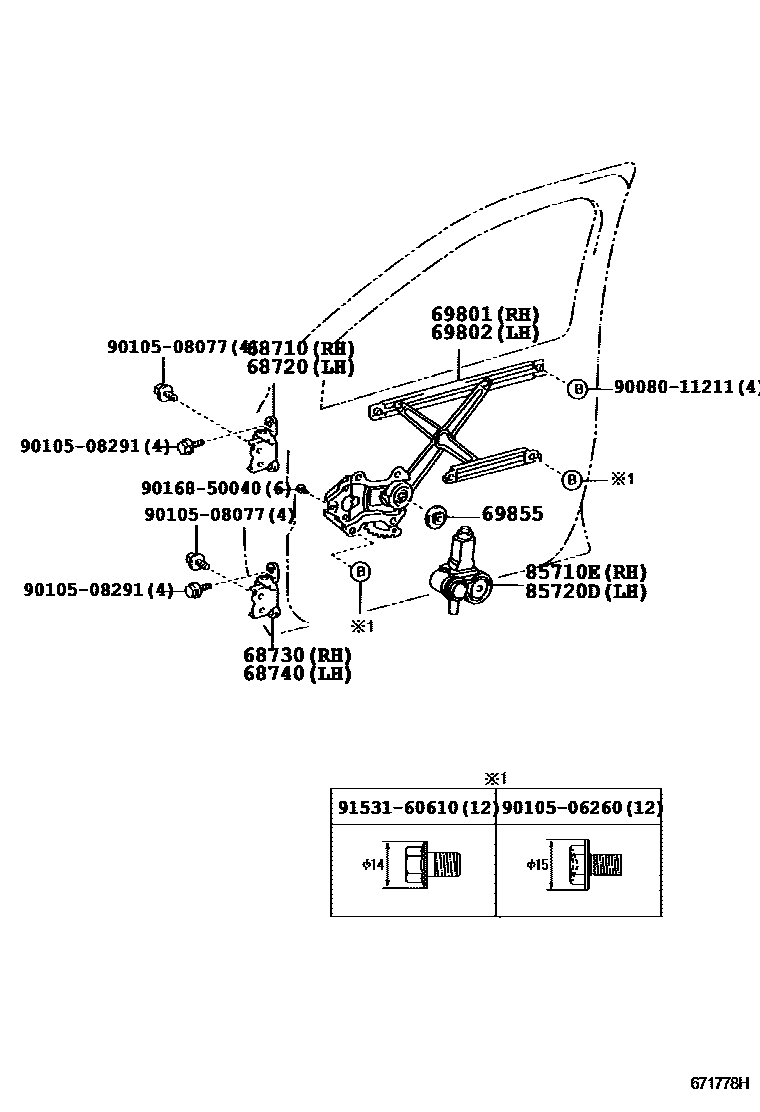

Toyota BB/OPEN DECK — FRONT DOOR WINDOW REGULATOR & HINGE

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-12101iNCP3#200001-200208

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-12101iNCP3#200001-200208

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68720-12101iNCP3#200001-200208

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68710-12101iNCP3#200001-200208

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-52030iNCP3#200001-200208

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-52030iNCP3#200001-200208

69855COVER, DOOR WINDOW REGULATOR GEAR

main69855-20010×2iNCP3#200001-200208

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-52050iNCP3#200001-200208

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-32160iNCP3#200001-200208

9008011211

main90080-11211

9010506260

main90105-06260

9010508077

main90105-08077

9010508291

main90105-08291

9016850040

main90168-50040

9153160610

main91531-60610

15 parts on this diagram · 1 diagram in section
