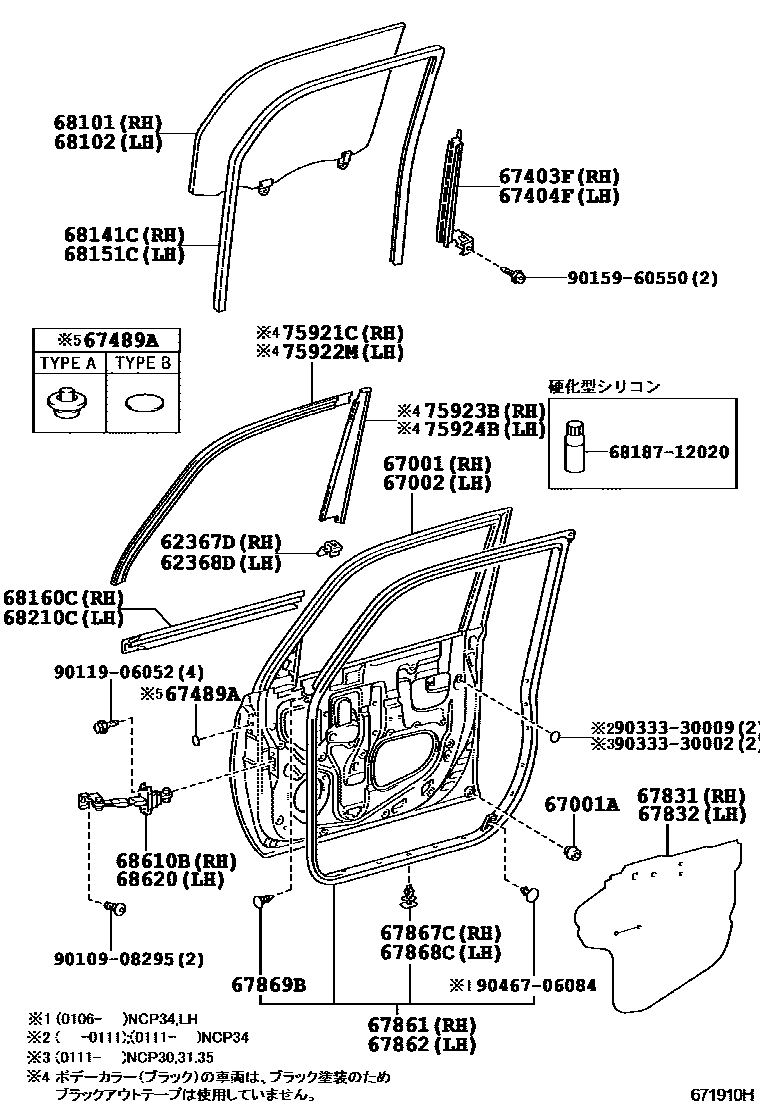

Toyota BB/OPEN DECK — FRONT DOOR PANEL & GLASS

0001 1 0002 1 0003 1 0004 1

62367DCLIP, DOOR WINDOW GLASS, RH

main62367-60030iNCP3#200001-200208

62368DCLIP, DOOR WINDOW GLASS, LH

main62367-60030iNCP3#200001-200208

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-52040iNCP3#200001-200008

main67001-52041iNCP3#200008-200208

main67001-52042iNCP3#200304-200512

67001ACUSHION, FRONT DOOR PANEL

main90541-09091×2iNCP3#200001-200208

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-52040iNCP3#200001-200008

main67002-52041iNCP30,31,35200008-200208

main67002-52042iNCP3#200304-200512

main67002-52170iNCP34200106-200208

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-52030iNCP3#200001-200005

main67403-52031iNCP3#200005-200208

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-52030iNCP3#200001-200005

main67404-52031iNCP3#200005-200208

67489ASEAL, FRONT DOOR FRONT LOWER FRAME COVER

main67489-52020×2iNCP3#200304-200512

main90950-06105×2iNCP3#200408-200512

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-52060iNCP3#200001-200208

main67831-52090iNCP30,31,35200208-200512

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67831-52060iNCP3#200208-200512

main67831-52090iNCP30,31,35200208-200512

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-52040iNCP3#200001-200106

main67861-52041iNCP30,31,35200106-200111

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-52040iNCP3#200001-200106

main67862-52041iNCP30,31,35200106-200208

main67862-52070iNCP34200106-200208

main67862-52071iNCP34200208-200303

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-12150×16iNCP3#200208-200512

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-12150×16iNCP30,31,35200001-200208

67869BCLIP, FRONT DOOR WEATHERSTRIP

main67869-32020×2iNCP3#200001-200208

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68110-52070iNCP3#200001-200208

main68110-52071iNCP3#200304-200512

sub68110-52072

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68120-52070iNCP3#200001-200208

main68120-52071iNCP3#200304-200512

sub68120-52072

68141CRUN, FRONT DOOR GLASS, RH

main68141-52040iNCP3#200001-200007

main68141-52041iNCP3#200007-200008

main68141-52042iNCP34200208-200303

main68141-52070iNCP30,31,35200208-200512

68151CRUN, FRONT DOOR GLASS, LH

main68151-52040iNCP3#200001-200007

main68151-52041iNCP3#200007-200008

main68151-52042iNCP3#200008-200208

main68151-52070iNCP30,31,35200208-200512

68160CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH

main68160-52040iNCP3#200001-200208

main68160-52100iNCP31,35..Z200201-200207

68210CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH

main68210-52040iNCP3#200208-200512

main68210-52100iNCP31,35..Z200208-200303

68610BCHECK ASSY, FRONT DOOR, RH

main68630-13010iNCP3#200001-200208

68620CHECK ASSY, FRONT DOOR, LH

main68640-13010iNCP3#200001-200208

75921CTAPE, BLACK OUT, NO.1 RH

main75921-52030iNCP3#200001-200208

75922MTAPE, BLACK OUT, NO.1 LH

main75922-52030iNCP3#200001-200208

75923BTAPE, BLACK OUT, NO.2 RH

main75923-52020iNCP3#200001-200208

75924BTAPE, BLACK OUT, NO.2 LH

main75924-52020iNCP3#200001-200208

6818712020WEATHERSTRIP, SIDE WINDOW GLASS

main68187-12020

9010908295

main90109-08295

9011906052

main90119-06052

9015960550

main90159-60550

9033330002

main90333-30002

9033330009

main90333-30009

9046706084

main90467-06084

34 parts on this diagram · 4 diagrams in section
