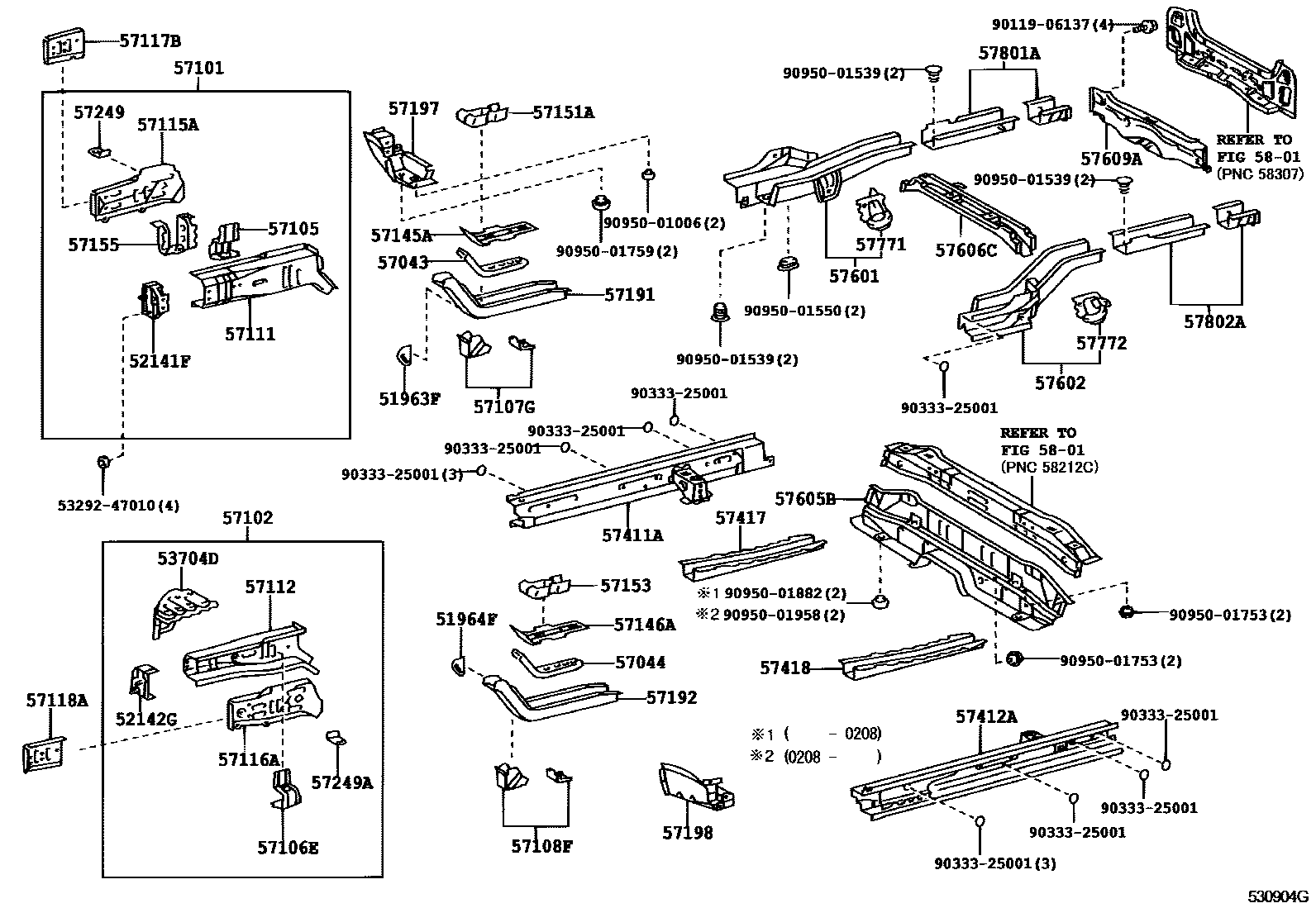

Toyota BB/OPEN DECK — FLOOR SIDE MEMBER
52141FARM, FRONT BUMPER, RH
52142GARM, FRONT BUMPER, LH
53704DSUPPORT SUB-ASSY, BATTERY, LH
57043REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH
57044REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH
57101MEMBER SUB-ASSY, FRONT SIDE, RH
57102MEMBER SUB-ASSY, FRONT SIDE, LH
57105BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT RH
57106EBRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT LH
57107GBRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, REAR RH
57108FBRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, REAR LH
57111MEMBER, FRONT SIDE, RH
57112MEMBER, FRONT SIDE, LH
57115APLATE, FRONT SIDE MEMBER, OUTER RH
57116APLATE, FRONT SIDE MEMBER, OUTER LH
57117BREINFORCEMENT, FRONT BUMPER MOUNTING, RH
57118AREINFORCEMENT, FRONT BUMPER MOUNTING, LH
57145AREINFORCEMENT, FRONT SIDE MEMBER, REAR RH
57146AREINFORCEMENT, FRONT SIDE MEMBER, REAR LH
57151AREINFORCEMENT, FRONT SIDE MEMBER, NO.1 RH
57153REINFORCEMENT, FRONT SIDE MEMBER, NO.2 RH
57155REINFORCEMENT, FRONT SIDE MEMBER, NO.3, RH
57191PLATE, FRONT SIDE MEMBER, OUTER REAR RH
57192PLATE, FRONT SIDE MEMBER, OUTER REAR LH
57197BOX, TORQUE, FRONT RH
57198BOX, TORQUE, FRONT LH
57249BRACKET, FLEXIBLE HOSE, NO.1
57249ABRACKET, FREXIBLE HOUSE, NO.1, LH
57411AMEMBER, FLOOR SIDE, INNER RH
57412AMEMBER, FLOOR SIDE, INNER LH
57417REINFORCEMENT, FRONT FLOOR UNDER, RH
57418REINFORCEMENT, FRONT FLOOR UNDER, LH
57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1
57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2
57609AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.5
57771PLATE, REAR SPRING, RH
57772PLATE, REAR SPRING, LH
57801AREINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, RH
57802AREINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, LH
5801FLOOR PAN & LOWER BACK PANEL
5329247010SEAL, RADIATOR SUPPORT TO FRAME, LH
main53292-47010
9011906137
main90119-06137
9033325001
main90333-25001
9095001006
main90950-01006
9095001539
main90950-01539
9095001550
main90950-01550
9095001753
main90950-01753
9095001759
main90950-01759
9095001882
main90950-01882
9095001958
main90950-01958
54 parts on this diagram · 5 diagrams in section
FLOOR SIDE MEMBER for Toyota BB/OPEN DECK
This section contains 66 genuine Toyota parts for the FLOOR SIDE MEMBER system of the Toyota BB/OPEN DECK. Key components include: HOOK, TRANSPORT, REAR LH, HOOK, TRANSPORT, HOOK, TRANSPORT, LH, ARM, FRONT BUMPER, RH.
