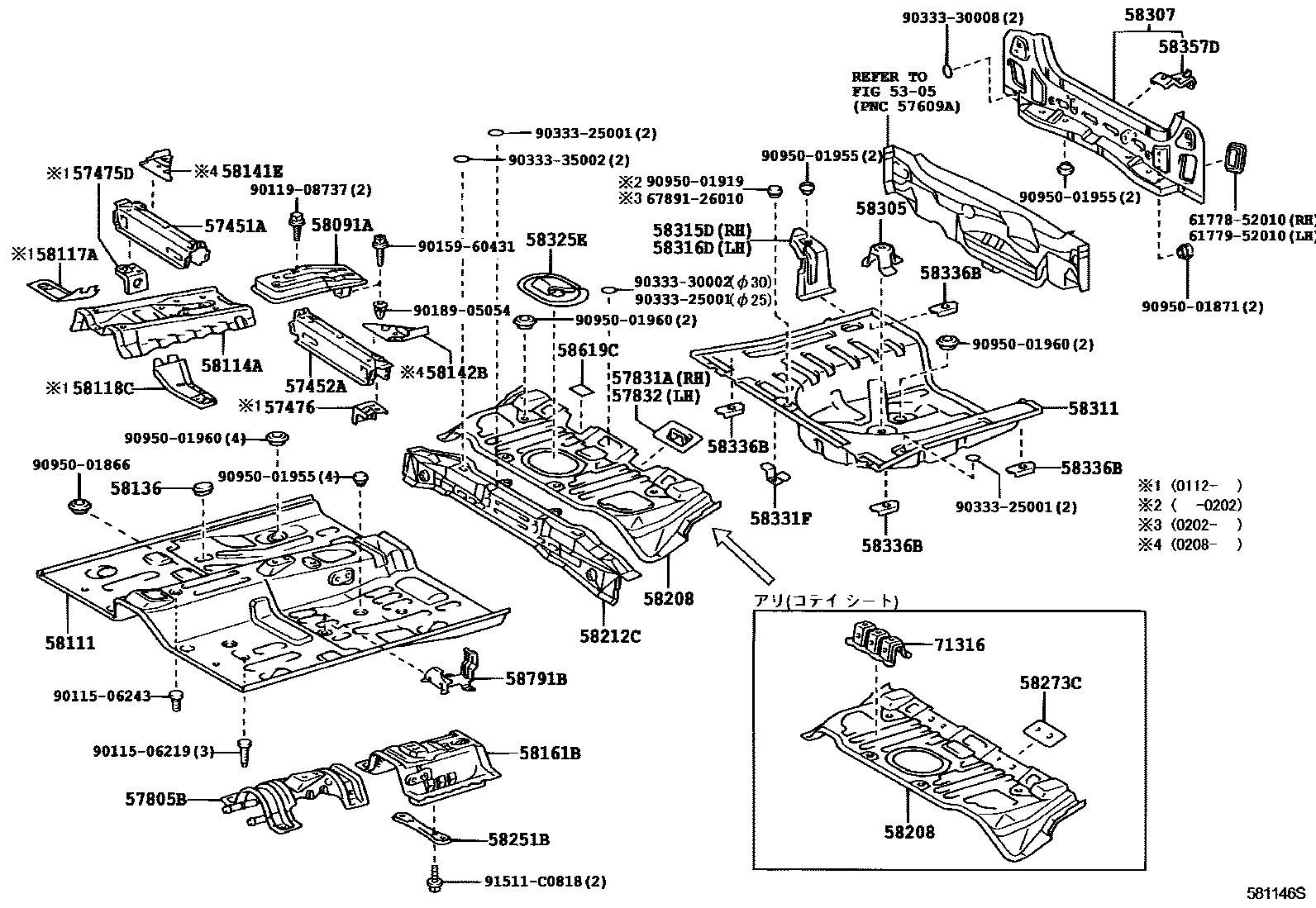

Toyota BB/OPEN DECK — FLOOR PAN & LOWER BACK PANEL

0001 1 0002 1 0003 1 0004 1 0005 1

5305

57451AMEMBER, FRONT FLOOR CROSS, RH

main57451-52020iNCP35200001-200005

main57451-52021iNCP35200208-200512

main57451-52030iNCP30,31200001-200005

main57451-52031iNCP34200208-200303

main57451-52070iNCP30,31200212-200303

main57451-52100iNCP30,31200208-200212

57452AMEMBER, FRONT FLOOR CROSS, NO.2

main57452-52020iNCP30,31200001-200005

main57452-52021iNCP30,31,34200005-200112

main57452-52022iNCP34200209-200303

main57452-52030iNCP35200208-200512

main57452-52080iNCP30,31200112-200208

main57452-52081iNCP30,31200209-200512

57475DPLATE, FRONT FLOOR CROSSMEMBER, RH

main57475-52010iNCP30,31200112-200208

57476PLATE, FRONT FLOOR CROSSMEMBER, LH

main57476-52010iNCP30,31200112-200208

57805BREINFORCEMENT SUB-ASSY, BELT ANCHOR, RH

main57805-52021iNCP30,31200001-200008

main57805-52022iNCP34200112-200208

main57805-52040iNCP35200208-200512

main57805-52070iNCP30,31200112-200208

main57805-52120iNCP30,31200212-200512

57831AREINFORCEMENT, REAR NO.1 SEAT LEG, FRONT NO.1

main57831-52010iNCP30,31200001-200208

57832REINFORCEMENT, REAR NO.1 SEAT LEG, FRONT NO.2

main57832-52010iNCP30,31200001-200208

58091AREINFORCEMENT SET, BODY FITTING

main58091-52010iNCP35200001-200208

main58091-52020iNCP30,31,34200001-200208

58111PAN, FRONT FLOOR

main58111-52902iNCP30,31200001-200005

main58111-52904iNCP35200208-200307

main58111-52907iNCP30,31,34200005-200208

main58111-52915iNCP30,31200308-200512

main58111-52917iNCP35200307-200512

58114AREINFORCEMENT, FRONT FLOOR PANEL

main58103-52010iNCP30,31,34200203-200208

main58103-52011iNCP30,31,34200208-200512

sub58103-52013

main58103-52020iNCP35200203-200208

main58103-52021iNCP35200208-200512

sub58103-52022

main58114-52010iNCP30,31,34200001-200203

sub58114-52011

main58114-52020iNCP35200001-200203

sub58114-52021

58117AREINFORCEMENT, FRONT FLOOR SIDE, RH

main58117-52040iNCP30,31200112-200208

58118CREINFORCEMENT, FRONT FLOOR SIDE, LH

main58118-52030iNCP30,31200112-200208

58136COVER, FRONT FLOOR HOLE

main58136-52010×2iNCP3#200001-200208

58141EREINFORCEMENT, FRONT SIDE MEMBER TO FLOOR PAN, RH

main58141-52010iNCP30,31200208-200512

58142BREINFORCEMNET, FRONT SIDE MEMBER TO FLOOR PAN, LH

main58142-52010iNCP30,31200208-200512

58161BREINFORCEMENT, BELT ANCHOR TO FLOOR PAN

main58161-52030iNCP30,31,34200001-200208

58208PAN, CENTER FLOOR

main58211-10152iNCP35200001-200101

sub90333-30002

main58211-52011iNCP30,31200001-200009

sub90333-30002

main58211-52012iNCP30,31200208-200505

sub90333-30008

sub90950-01958

main58211-52013iNCP30,31200505-200512

main58211-52021iNCP30,31200001-200009

sub90333-30002

main58211-52022iNCP34200106-200208

sub58211-52023

sub90333-25001

sub90950-01958

main58211-52110iNCP35200101-200208

58212CPAN, CENTER FLOOR, FRONT

main57661-52010iNCP30,31200001-200208

main58202-52010iNCP30,31200001-200208

main58202-52070iNCP34200106-200208

58251BBRACE, FLOOR PANEL, FRONT

main58251-52010iNCP30,31,34200001-200208

58273CREINFORCEMENT, BELT ANCHOR TO CENTER FLOOR

main58273-52010×2iNCP30,31200001-200208

58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP

main58351-52030iNCP30,31200001-200208

main58351-52040iNCP35200208

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-52110iNCP30,31,35200208-200304

58311PAN, REAR FLOOR

main58311-52030iNCP30,31200001-200202

sub67891-26010

main58311-52031iNCP30,31200208-200210

main58311-52032iNCP30,31200210-200406

main58311-52033iNCP30,31200406-200512

main58311-52040iNCP35200208-200505

sub90333-25001

sub90950-01960

main58311-52041iNCP35200505-200512

sub58311-52042

sub90950-01955

main58311-52080iNCP34200106-200208

58315DEXTENSION, REAR FLOOR PAN, RH

main58315-52040iNCP35200001-200208

main58315-52070iNCP30,31200001-200208

58316DEXTENSION, REAR FLOOR PAN, LH

main58316-52070iNCP30,31200001-200208

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-10040iNCP35200001-200208

main58325-52010iNCP30,31,34200001-200208

58331FBRACKET, REAR FLOOR HEAT INSULATOR, NO.3

main58331-10010×2iNCP30,31,34200001-200208

main58331-10011×5iNCP35200001-200208

58336BREINFORCEMENT, REAR FLOOR PAN

main58336-12060×4iNCP30,31200001-200208

58357DSUPPORT, REAR STEP, NO.1

main58357-52020×2iNCP30,31,35200001-200208

58619CSHEET, CENTER FLOOR SILENCER SUB

main58619-52010×2iNCP30,31200001-200208

58791BCARRIER, JACK

main58791-52020iNCP3#200001-200208

main58791-52021iNCP3#200308-200512

71316BRACKET, REAR SEAT SUPPORT

main71316-52010×2iNCP30,31200001-200208

6177852010STRENGTH, QUARTER PANEL HORIZONTAL, LOWER REAR RH

main61778-52010

6177952010STRENGTH, QUARTER PANEL HORIZONTAL, LOWER REAR LH

main61779-52010

6789126010WEATHERSTRIP, REAR DOOR PANEL

main67891-26010

9011506219

main90115-06219

9011506243

main90115-06243

9011908737

main90119-08737

9015960431

main90159-60431

9018905054

main90189-05054

9033325001

main90333-25001

9033330002

main90333-30002

9033330008

main90333-30008

9033335002

main90333-35002

9095001866

main90950-01866

9095001871

main90950-01871

9095001919

main90950-01919

9095001955

main90950-01955

9095001960

main90950-01960

91511C0818

main91511-C0818

51 parts on this diagram · 5 diagrams in section
