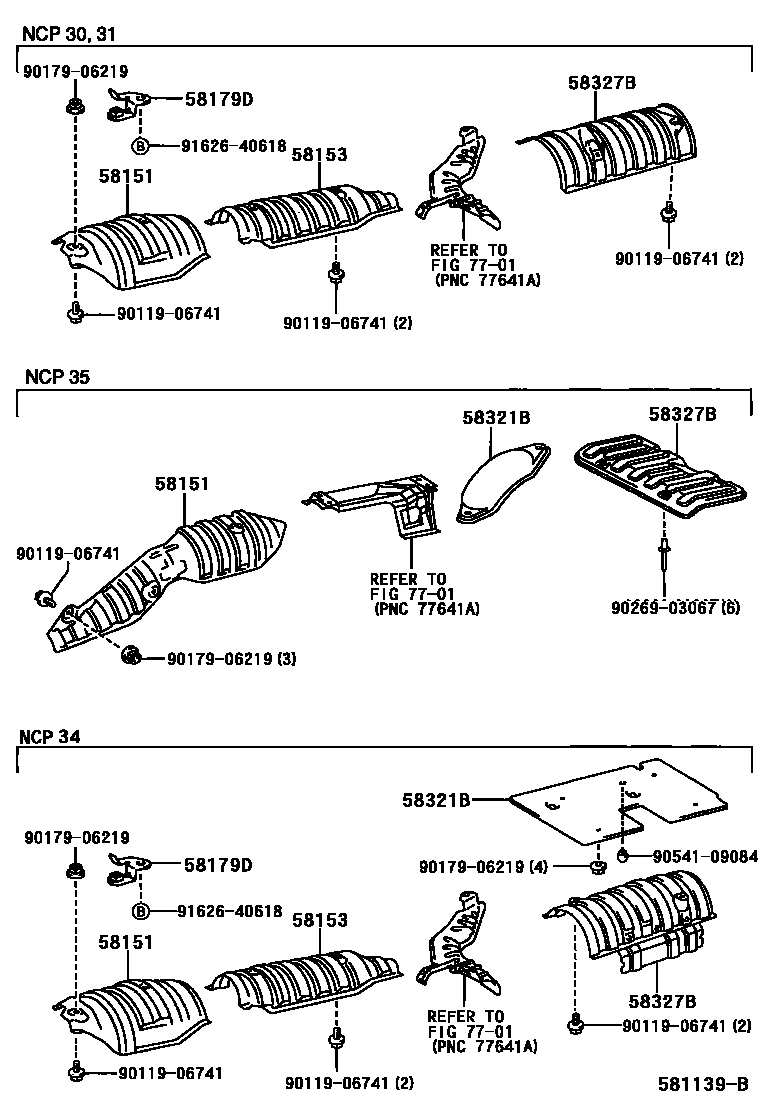

Toyota BB/OPEN DECK — FLOOR INSULATOR

0001 1 0002 1

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-52010iNCP30,31,34200001-200208

main58151-52020iNCP35200001-200512

sub58151-52021

main58151-52030iNCP30,31,34200208-200512

58153INSULATOR, FRONT FLOOR HEAT, NO.2

main58153-52011iNCP30,31,34200001-200208

main58153-52050iNCP30,31,34200208-200512

58179DBRACKET, CLAMP FLOOR

main58179-52010iNCP30,31,34200001-200208

58321BINSULATOR, REAR FLOOR HEAT, NO.1

main58321-10031iNCP35200001-200512

main58321-52010iNCP34200106-200303

58327BINSULATOR, MAIN MUFFLER HEAT

main58031-52010iNCP34200106-200303

main58327-52020iNCP35200001-200512

main58327-52050iNCP30,31200001-200512

7701

9011906741

main90119-06741

9017906219

main90179-06219

9026903067

main90269-03067

9054109084

main90541-09084

9162640618

main91626-40618

11 parts on this diagram · 2 diagrams in section
