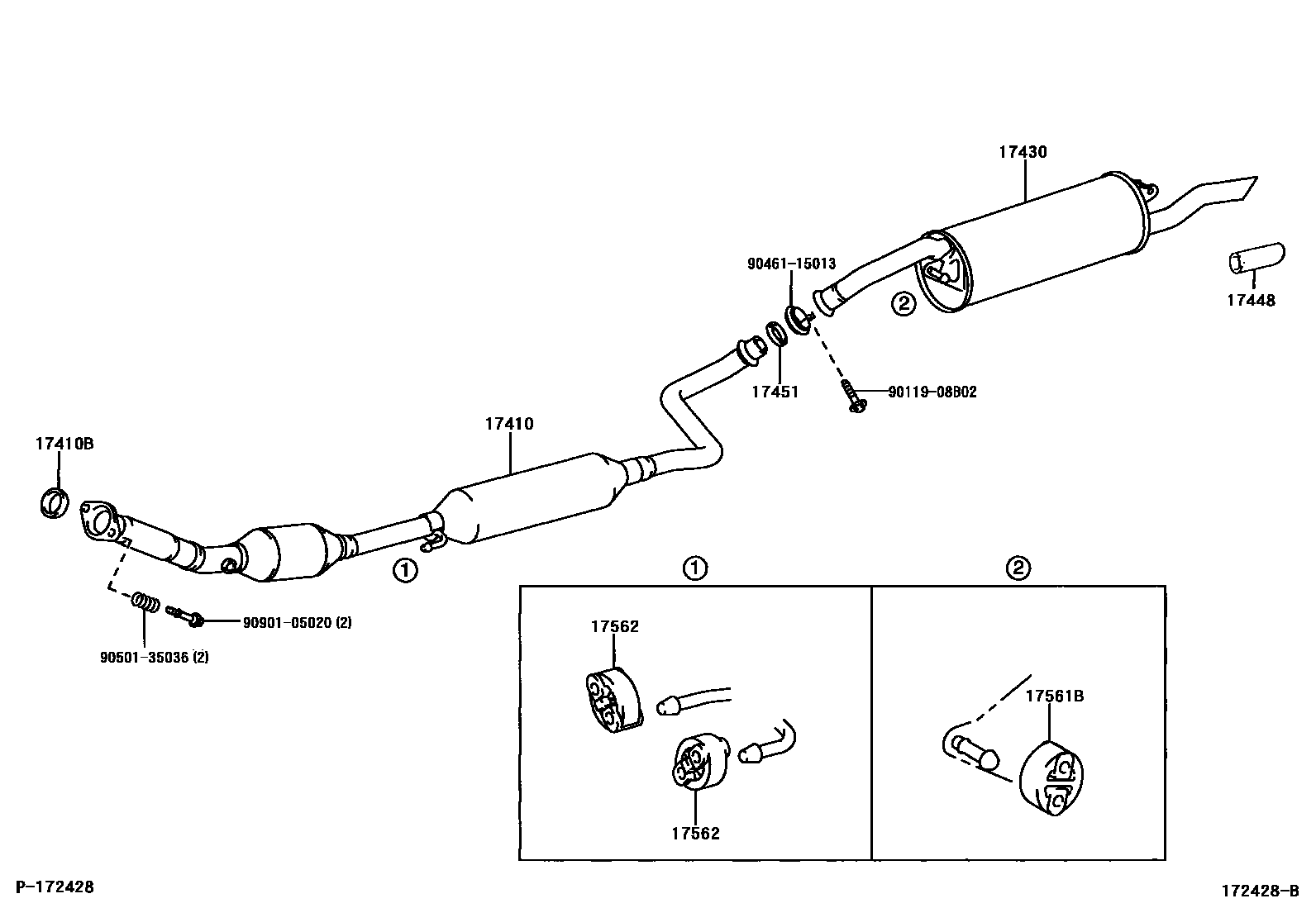

Toyota BB/OPEN DECK — EXHAUST PIPE

0001 1 0002 1

17410PIPE ASSY, EXHAUST, FRONT

main17410-21090i2NZFE..NCP30200001-200008

sub17410-21860

main17410-21091i2NZFE..NCP30200008-200208

sub17410-21092

main17410-21120i1NZFE..NCP31200001-200008

sub17410-21870

main17410-21121i1NZFE..NCP31,34200008-200208

sub17410-21122

main17410-21130i1NZFE..NCP35200001-200208

sub17410-21131

main17410-21400i1NZFE..NCP35200208-200512

sub17410-21401

main17410-21550i1NZFE,2NZFE..NCP30,31,34200208-200512

sub17410-21551

17410BGASKET, EXHAUST PIPE

main17451-21030i1NZFE,2NZFE..NCP3#200001-200512

main17451-22020i1NZFE..NCP35200001-200006

17430PIPE ASSY, EXHAUST, TAIL

main17430-21040i2NZFE..NCP30200001-200208

main17430-21060i1NZFE..NCP35200001-200208

sub17430-21061

main17430-21061i1NZFE..NCP35200208-200512

main17430-21110i1NZFE..NCP31200001-200208

sub17430-21111

main17430-21111i1NZFE..NCP31200208-200304

main17430-21230i1NZFE..NCP34200106-200208

main17430-21400i1NZFE..NCP34200208-200303

main17430-21420i2NZFE..NCP30200208-200512

sub17430-21421

17448BAFFLE, TAILPIPE

main17448-21010i1NZFE..NCP31,34,35200001-200304

main17448-21020i2NZFE..NCP30200001-200208

main17448-21030i1NZFE,2NZFE..NCP3#200304-200512

17451GASKET, EXHAUST PIPE

main90917-06082i1NZFE,2NZFE..NCP3#200001-200512

17561BSUPPORT, EXHAUST PIPE, NO.1

main17565-55050i1NZFE..NCP35200001-200512

main17565-74280i1NZFE,2NZFE..NCP30,31,34200001-200512

17562SUPPORT, EXHAUST PIPE, NO.2

main17562-23040i1NZFE,2NZFE..NCP30,31,34200001-200512

main17565-11160i1NZFE..NCP35200001-200512

9011908B02

main90119-08B02

9046115013

main90461-15013

9050135036

main90501-35036

9090105020

main90901-05020

11 parts on this diagram · 2 diagrams in section
