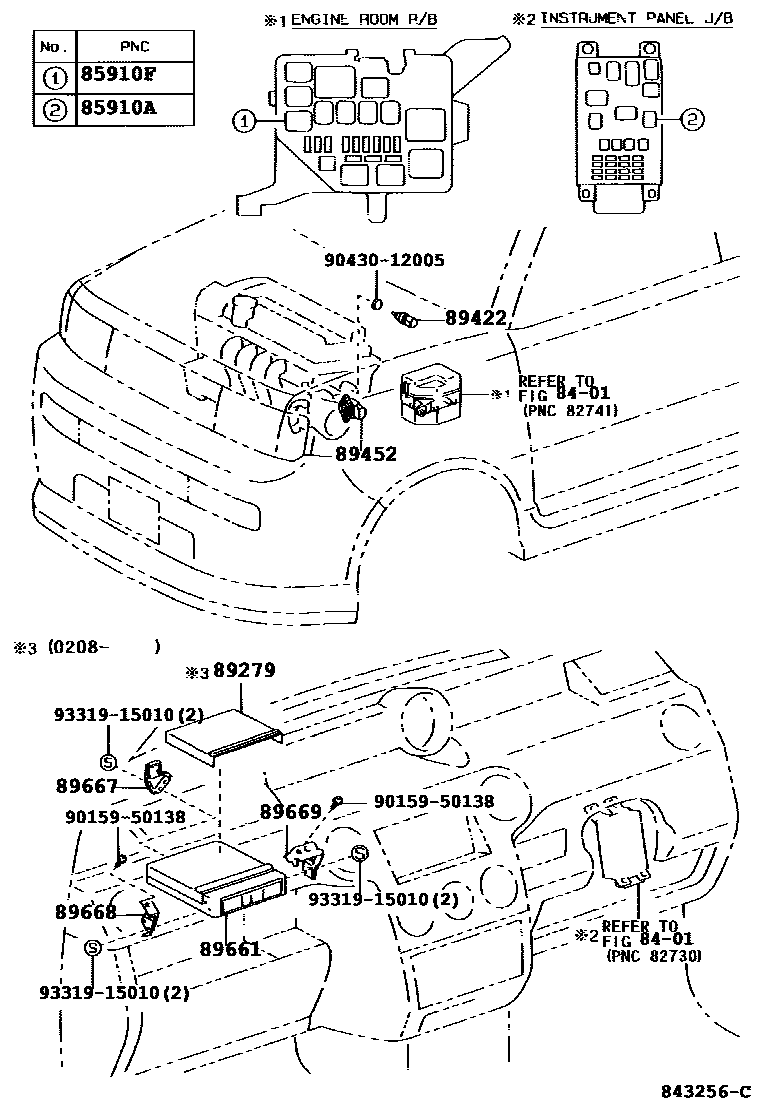

Toyota BB/OPEN DECK — ELECTRONIC FUEL INJECTION SYSTEM

8401

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90987-02012iNCP3#200001-200208

main90987-02027iNCP3#200212-200512

85910FRELAY, COMPUTER (FOR EFI)

main90987-02012iNCP3#200001-200112

main90987-02022iNCP3#200112-200208

main90987-02027iNCP3#200212-200512

89279COVER, ENGINE CONTROL COMPUTER

main89279-52100iNCP3#200208-200512

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-16010iNCP3#200208-200512

main89422-22030iNCP3#200208-200512

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-20130iNCP3#200001-200208

89661COMPUTER, ENGINE CONTROL

main89661-52800iNCP30200001-200008

main89661-52801iNCP30200008-200208

main89661-52810iNCP31200001-200008

main89661-52811iNCP31,34200008-200208

main89661-52820iNCP35200001-200008

main89661-52821iNCP35200008-200208

main89661-52A00iNCP31200304-200512

main89661-52A30iNCP35200304-200512

main89661-52A40iNCP30200304-200512

main89666-52140iNCP31,34200208-200304

main89666-52150iNCP35200208-200304

main89666-52160iNCP30200208-200304

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-52010iNCP3#200208-200512

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-52010iNCP3#200001-200208

main89668-52120iNCP3#200208-200512

89669BRACKET, ENGINE CONTROL COMPUTER, NO.3

main89669-52010iNCP3#200001-200208

main89669-52070iNCP3#200208-200512

9015950138

main90159-50138

9043012005

main90430-12005

9331915010

main93319-15010

13 parts on this diagram · 1 diagram in section
