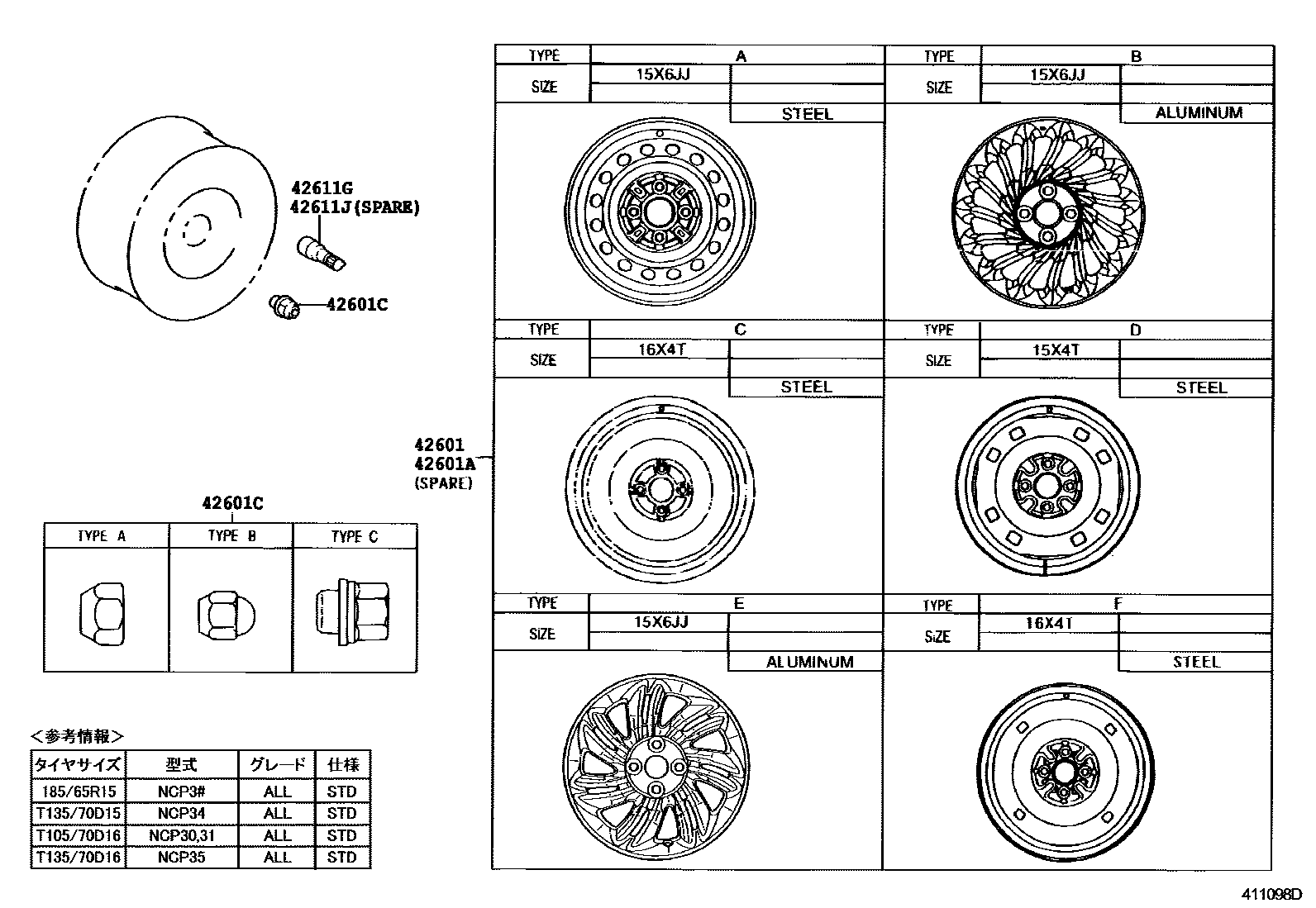

Toyota BB/OPEN DECK — DISC WHEEL & WHEEL CAP

42601WHEEL, DISC

main42611-52120×4i200208-200512

main42611-52130×4i200208-200304

main42611-52350×4i200208-200304

main42611-52430×4i200304-200512

main42611-52550×4i200404

42601AWHEEL, DISC (FOR SPARE)

main42611-10321i200208-200512

main42611-1A010i200208-200303

main42611-1A240i200304-200512

42601CNUT, HUB (FOR AXLE)

main90942-01007×16i200001-200208

main90942-01021×16i200001-200208

main90942-01062×16i200201-200207

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009×4i200208-200512

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009i200001-200208

5 parts on this diagram · 3 diagrams in section

DISC WHEEL & WHEEL CAP for Toyota BB/OPEN DECK

This section contains 74 genuine Toyota parts for the DISC WHEEL & WHEEL CAP system of the Toyota BB/OPEN DECK. Key components include: WHEEL, DISC, WHEEL, DISC (FOR SPARE), NUT, HUB (FOR AXLE), ORNAMENT SUB-ASSY, WHEEL HUB, VALVE (FOR TUBELESS TIRE).
