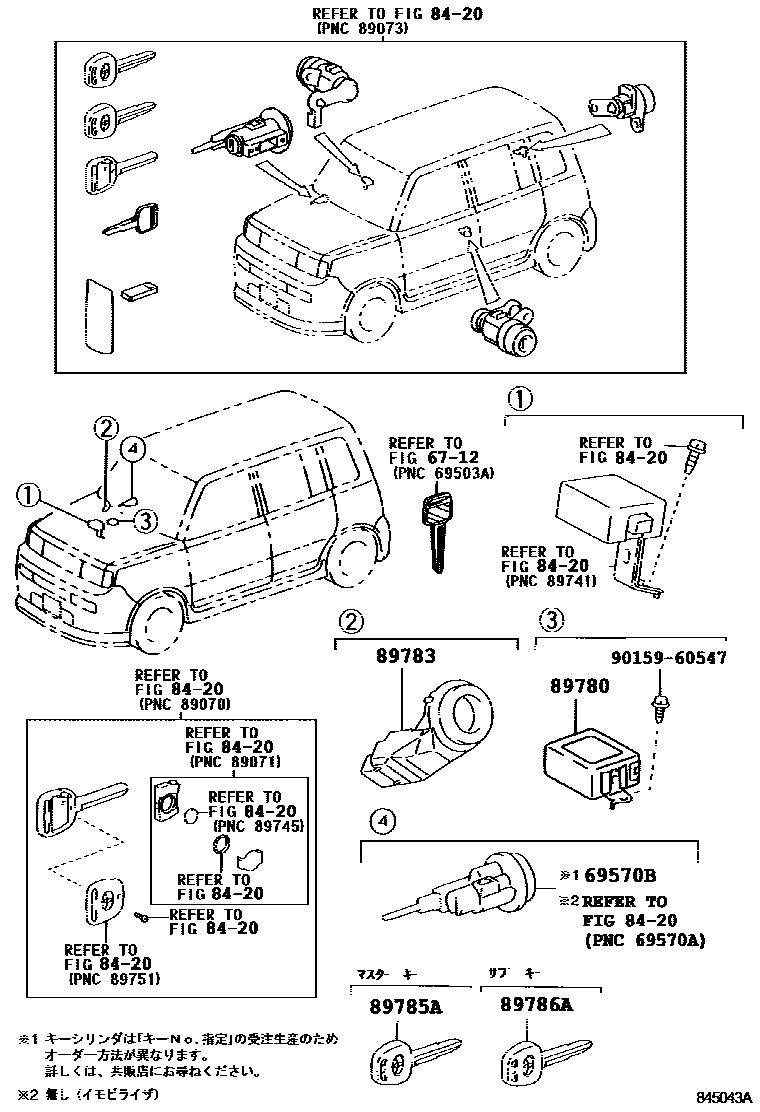

Toyota BB/OPEN DECK — ANTI-THEFT DEVICE

6712LOCK CYLINDER SET

→ Go to FIG 67-12

69570BCYLINDER ASSY, IGNITION SWITCH LOCK

main69570-12250i200208-200512

8420WIRELESS DOOR LOCK

→ Go to FIG 84-20

89780COMPUTER ASSY, TRANSPONDER KEY

main89780-52010i200208-200512

89783AMPLIFIER, TRANSPONDER KEY

main89783-52030i200208-200512

89785ATRANSMITTER, TRANSPONDER CUT KEY MASTER

main89785-60160i200208-200512

89786ATRANSMITTER, TRANSPONDER CUT KEY SUB

main89786-60170i200208-200512

9015960547

main90159-60547

8 parts on this diagram · 1 diagram in section

ANTI-THEFT DEVICE for Toyota BB/OPEN DECK

This section contains 8 genuine Toyota parts for the ANTI-THEFT DEVICE system of the Toyota BB/OPEN DECK. Key components include: LOCK CYLINDER SET, CYLINDER ASSY, IGNITION SWITCH LOCK, WIRELESS DOOR LOCK, COMPUTER ASSY, TRANSPONDER KEY, AMPLIFIER, TRANSPONDER KEY.
