Toyota BB/OPEN DECK — ABS & VSC

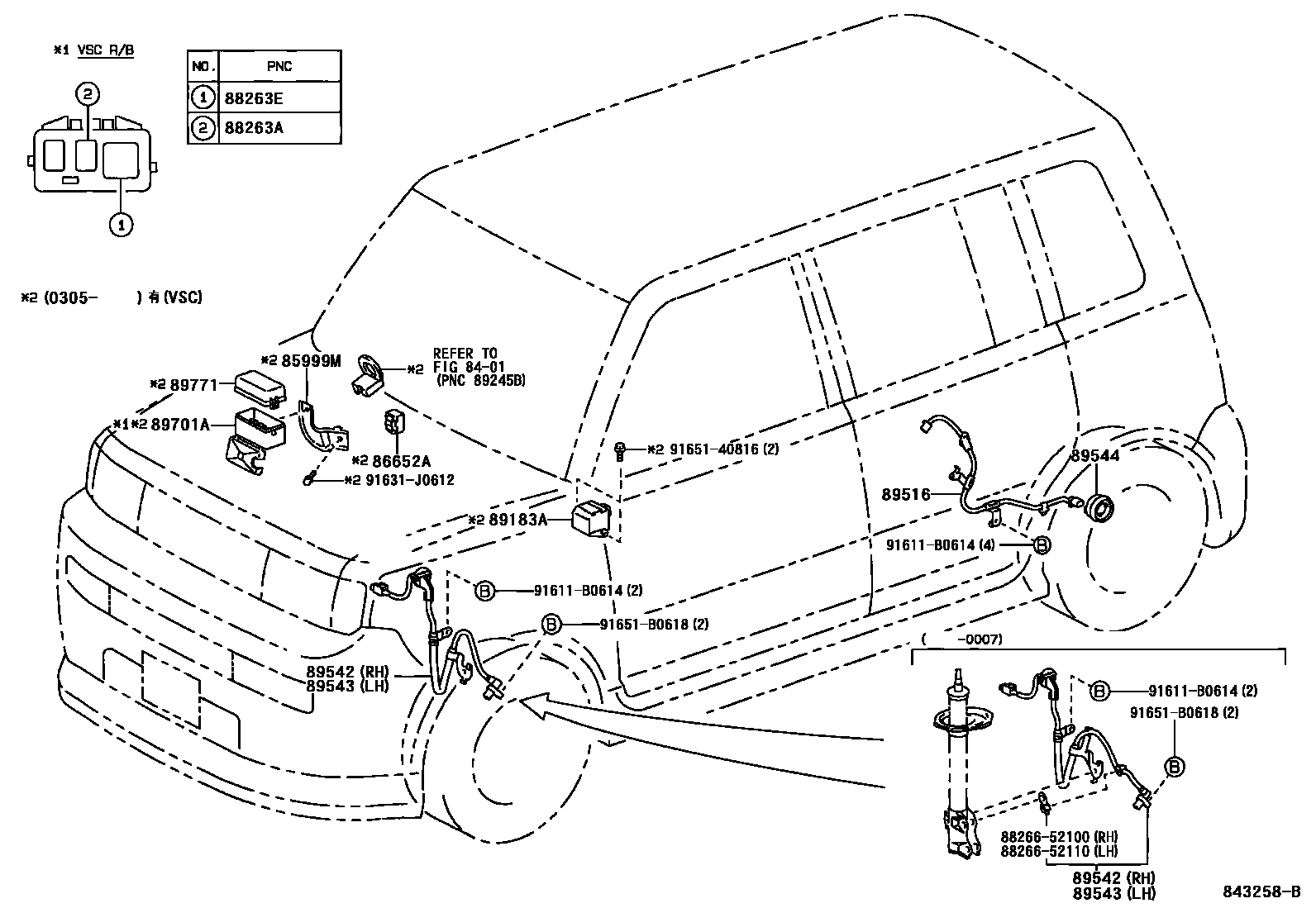

Parts diagram

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

85999MBRACKET, RELAY

main85999-52020i200305-200512

86652ABUZZER ASSY, SKID CONTROL

main86652-48010i200305-200512

88263ARELAY, SKID CONTROL

main88263-32070i200305-200512

88263ERELAY, SKID CONTROL NO.2

main88263-21010i200305-200512

89183ASENSOR, YAWRATE

main89183-48010i200305-200512

89516WIRE, SKID CONTROL SENSOR

main89516-52010i200001-200208

main89516-52020i200208-200512

89542SENSOR, SPEED, FRONT RH

main04895-52010i200001-200007

main89542-52010i200007-200208

89543SENSOR, SPEED, FRONT LH

main04895-52020i200001-200007

main89543-52010i200007-200208

89544SENSOR, SKID CONTROL

main89544-12010×2i200301-200512

main89544-52010×2i200001-200004

main89544-52020×2i200004-200208

main89544-52030×2i200301-200512

89701ABLOCK SUB-ASSY, ABS RELAY

main89701-21020i200305-200512

89771COVER, ABS RELAY BLOCK, UPPER

main89771-21020i200305-200512

8826652100CLAMP, AIR SUSPENSION SENSOR, NO.1

main88266-52100

8826652110CLAMP, AIR SUSPENSION SENSOR, NO.1

main88266-52110

91611B0614

main91611-B0614

91631J0612

main91631-J0612

9165140816

main91651-40816

91651B0618

main91651-B0618

18 parts on this diagram · 2 diagrams in section

ABS & VSC for Toyota BB/OPEN DECK

This section contains 23 genuine Toyota parts for the ABS & VSC system of the Toyota BB/OPEN DECK. Key components include: SWITCH & RELAY & COMPUTER, BRACKET, RELAY, BUZZER ASSY, SKID CONTROL, RELAY, SKID CONTROL, RELAY, SKID CONTROL NO.2.
