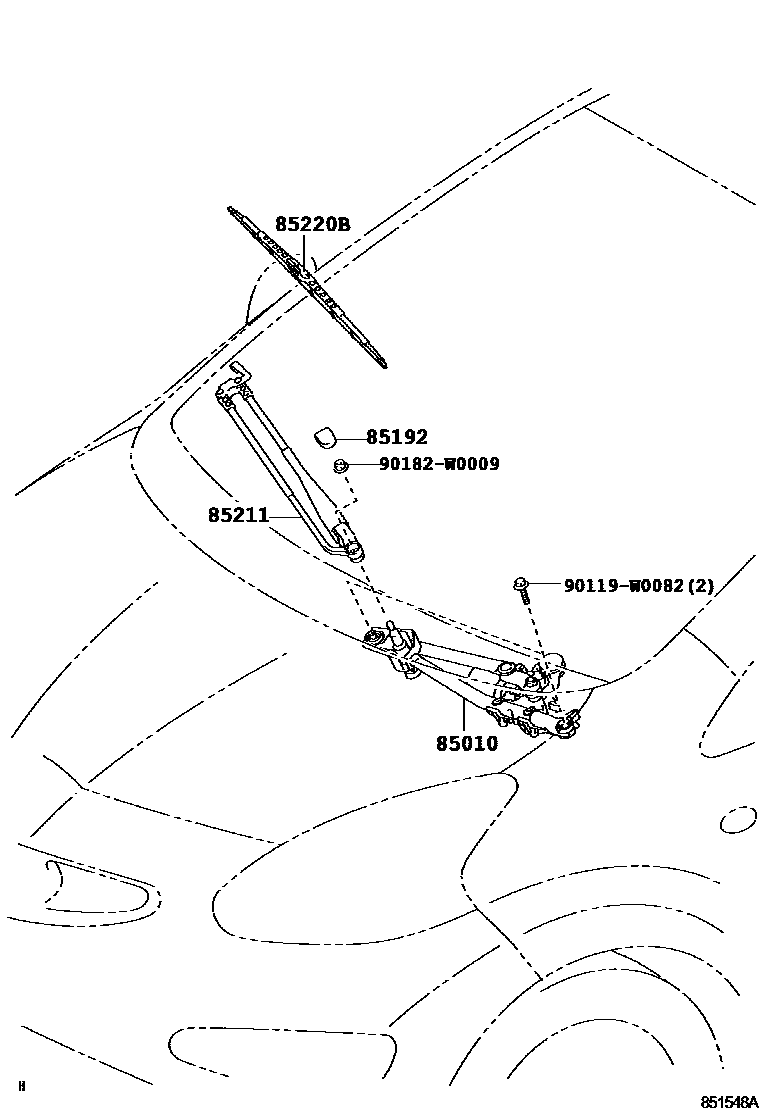

Toyota AYGO — WINDSHIELD WIPER

85010MOTOR & LINK ASSY, FR WIPER

main85010-0H010iKGB10,WNB10..LHD200502-200610

sub85010-0H011

main85010-0H011iKGB10..LHD200611-201202

main85010-0H020iKGB10,WNB10..RHD200502-200610

sub85010-0H021

main85010-0H021iKGB10..RHD200611-201202

85192COVER, WINDSHIELD WIPER ARM

main85292-02010iKGB10,WNB10200502-201202

sub85292-12020

85211ARM, FRONT WIPER

main85211-0H010iKGB10,WNB10..RHD200502-201202

main85221-0H010iKGB10,WNB10..LHD200502-201202

85220BBLADE, FRONT WIPER

main85212-0H010iKGB10,WNB10..RHD200502-201202

main85222-0H010iKGB10..LHD200502-201202

90119W0082

main90119-W0082

90182W0009

main90182-W0009

6 parts on this diagram · 1 diagram in section
