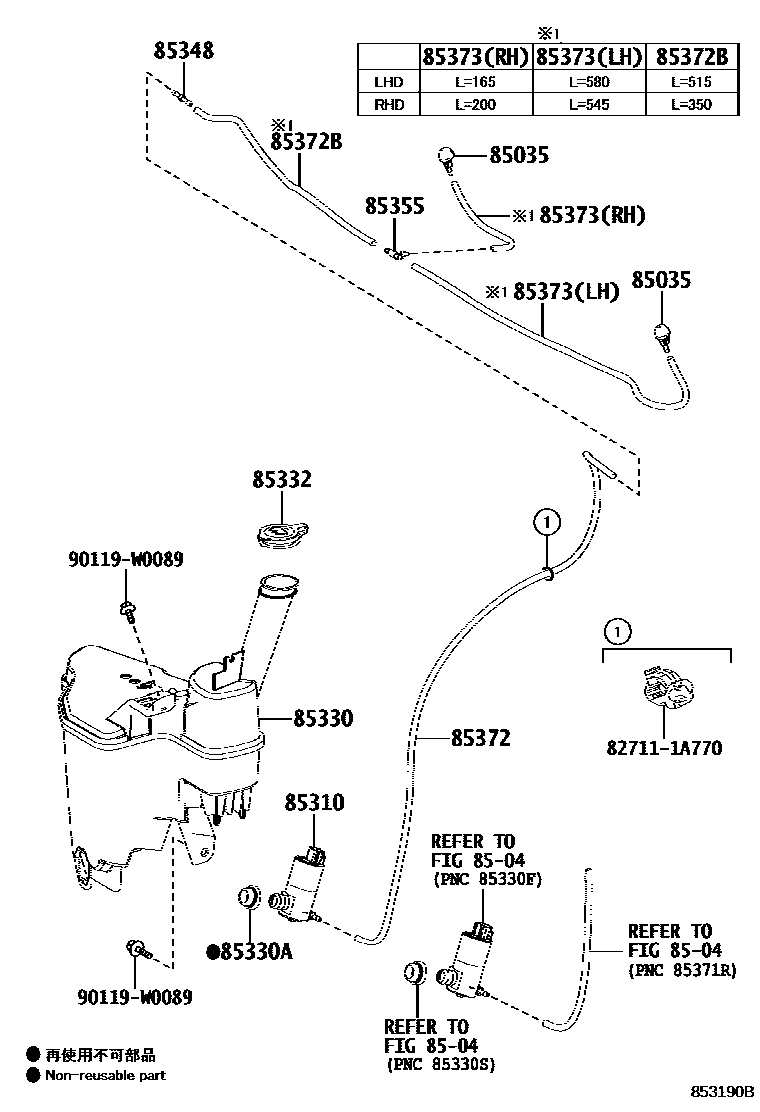

Toyota AYGO — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-0H020×2i201405-201805

8504REAR WASHER

→ Go to FIG 85-04

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-02030i201405-201805

85330JAR ASSY, WINDSHIELD WASHER

main85315-0H030i201405-201805

85330ABUSH, WINDSHIELD WASHER JAR

main90069-20005i201405-201805

85332CAP, WINDSHIELD WASHER JAR

main85316-0D010i201405-201805

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85375-05050i201405-201805

85355VALVE, WINDSHIELD WASHER HOSE

main85378-0H110i201405-201805

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90069-16009i201405-201805

*H,L=905

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90069-16009i201405-201805

*318:REFER ILLUST.

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90069-16009×2i201405-201805

*318:REFER ILLUST.

827111A770WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1A770

90119W0089

main90119-W0089

13 parts on this diagram · 1 diagram in section
