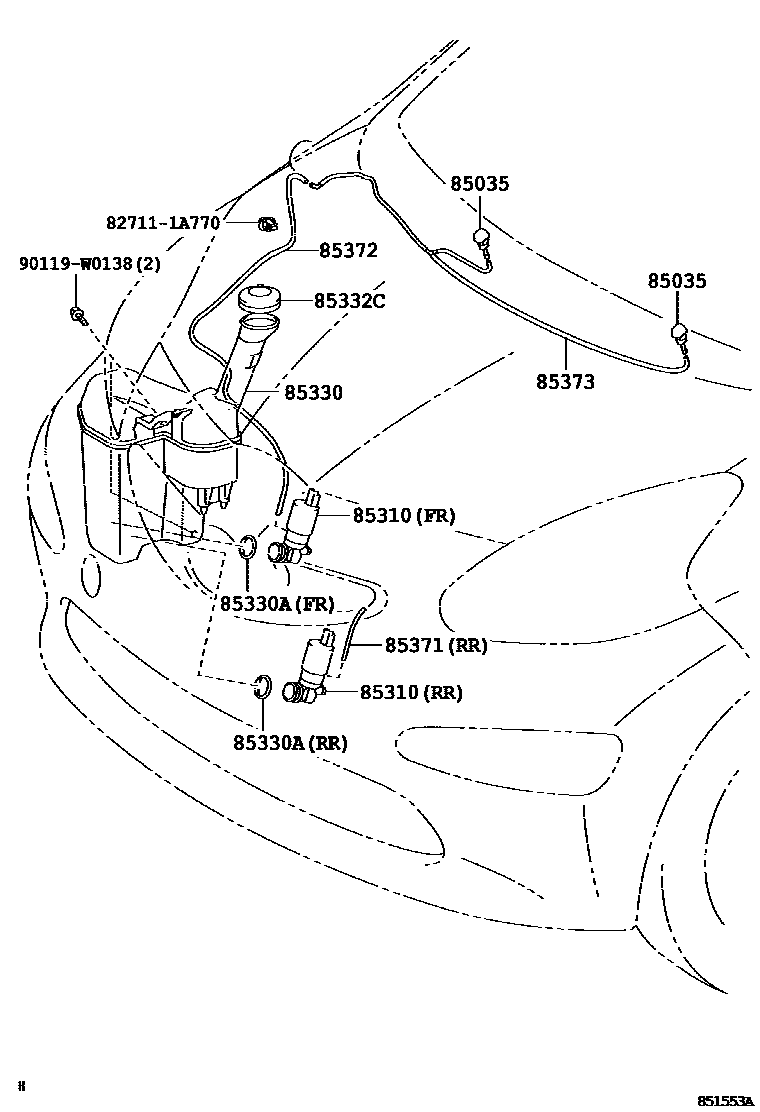

Toyota AYGO — WINDSHIELD WASHER

0001 1 0002 1

85035NOZZLE SUB-ASSY, WASHER

main85381-0H010iWNB10200502-201202

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-0H010iKGB10201104-201202

main85330-0H020iKGB10200502-201104

85330JAR ASSY, WINDSHIELD WASHER

main85315-0H010iKGB10,WNB10200502-201202

main85315-0H011iKGB10201202

85330ABUSH, WINDSHIELD WASHER JAR

main85336-0H010iKGB10,WNB10200502-201202

85332CCAP, FRONT WASHER TANK

main85316-0H010iWNB10200502-201202

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85374-0H010iKGB10,WNB10200502-201202

L=80

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main85370-0H030iKGB10,WNB10200502-201202

L=976

main85370-0H090iKGB10201202

L=994

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main85370-0H010iKGB10,WNB10..LHD200502-201202

main85370-0H020iWNB10..RHD200502-201202

main85370-0H070iKGB10..LHD201202

main85370-0H080iKGB10..RHD201202

827111A770WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1A770

90119W0138

main90119-W0138

10 parts on this diagram · 2 diagrams in section
