Toyota AYGO — WATER PUMP

0001 1 0002 1 0003 1

1603

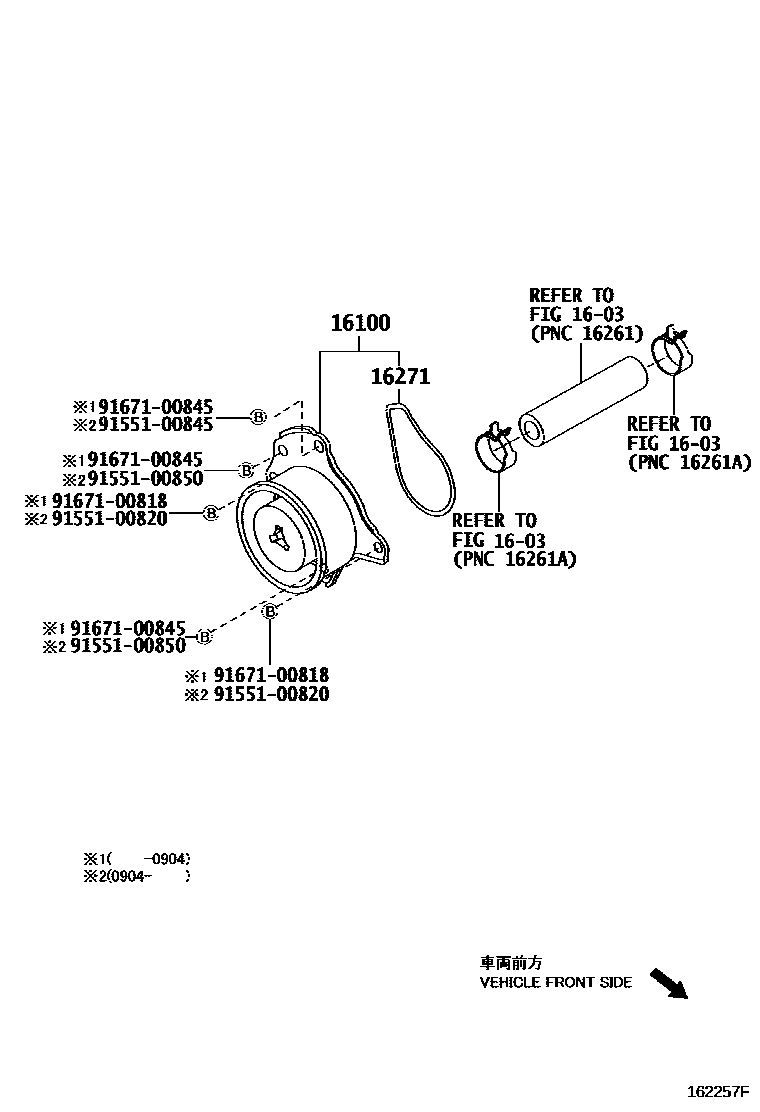

16100PUMP ASSY, ENGINE WATER

main16100-09240i1KRFE..KGB10200502-200508

sub16100-09450

sub91671-00818

sub91671-00845

main16100-09450i1KRFE..KGB10200508-200903

sub16100-09530

sub91551-00820

sub91551-00845

sub91551-00850

main16100-09530i1KRFE..KGB10200904-201406

sub16100-09531

mainSU00100596i2WZTV..WNB10200505-201009

subSU001-00919

16271GASKET, WATER PUMP

main16271-0Q010i1KRFE..KGB10200502-201406

mainSU00100724i2WZTV..WNB10200505-200704

subSU001-00831

mainSU00100831i2WZTV..WNB10200705-201009

9155100820

main91551-00820

9155100845

main91551-00845

9155100850

main91551-00850

9167100818

main91671-00818

9167100845

main91671-00845

8 parts on this diagram · 3 diagrams in section
