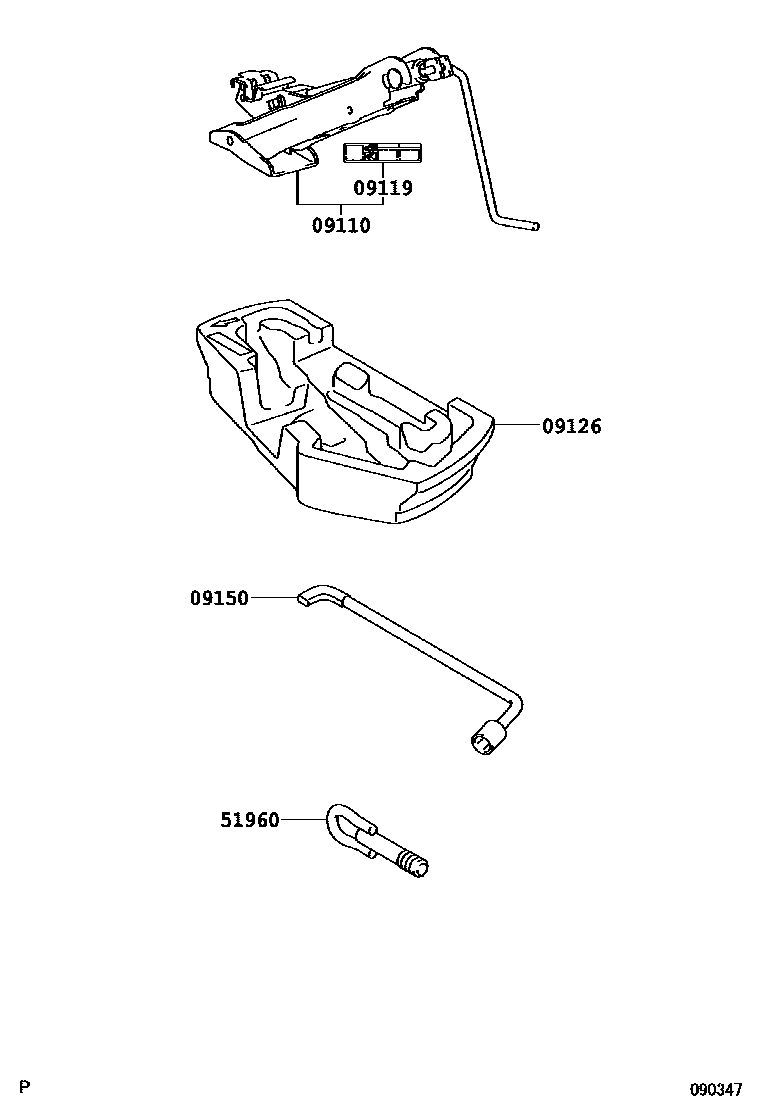

Toyota AYGO — STANDARD TOOL

09110JACK ASSY

main09110-0H010iKGB10,WNB10200502-200812

SPARE TIRE-WITHOUT(TIRE REPAIR KIT)

main09110-0H010iKGB10,WNB10200812-201202

09119LABEL, JACK CAUTION

main09119-0H010iKGB10,WNB10200502-201202

09126BOX, JACK

main09126-0H010iKGB10,WNB10200502-200804

SPARE TIRE-WITHOUT(TIRE REPAIR KIT)

sub09126-0H011

main09126-0H011iKGB10,WNB10200805-200812

SPARE TIRE-WITHOUT(TIRE REPAIR KIT)

main09126-0H011iWNB10200812-201202

09150WRENCH, HUB NUT BOX

main09151-0H010iKGB10,WNB10200502-201202

51960HOOK ASSY, FRONT

main51960-0H010iKGB10,WNB10200502-200812

main51960-0H011iWNB10200812-201105

sub51960-0H012

main51960-0H012iKGB10201106-201202

5 parts on this diagram · 1 diagram in section
