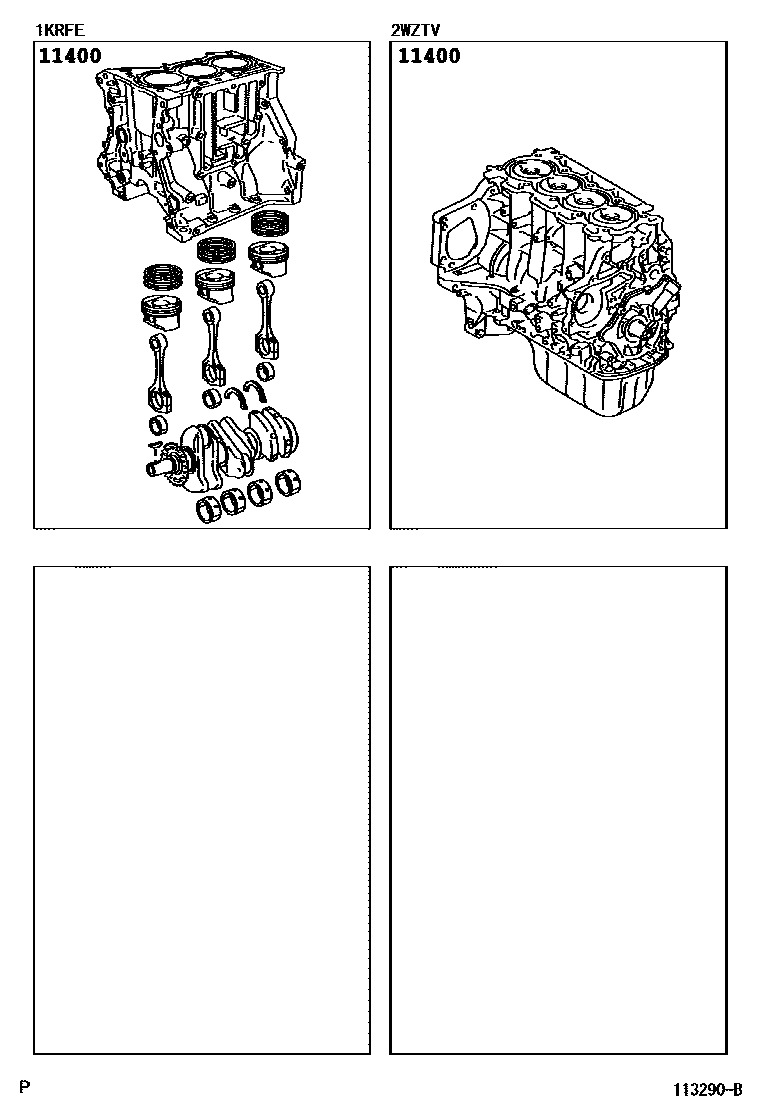

Toyota AYGO — SHORT BLOCK ASSEMBLY

11400BLOCK ASSY, SHORT

main11400-0Q010i1KRFE..KGB10200502-200509

sub11400-40080

main11400-0Q011i1KRFE..KGB10200509-200808

sub11400-0Q020

main11400-0Q020i1KRFE..KGB10200808-201202

main11400-0Q030i1KRFE..KGB10201202-201406

mainSU00100717i2WZTV..WNB10200505-200701

1 parts on this diagram · 1 diagram in section
