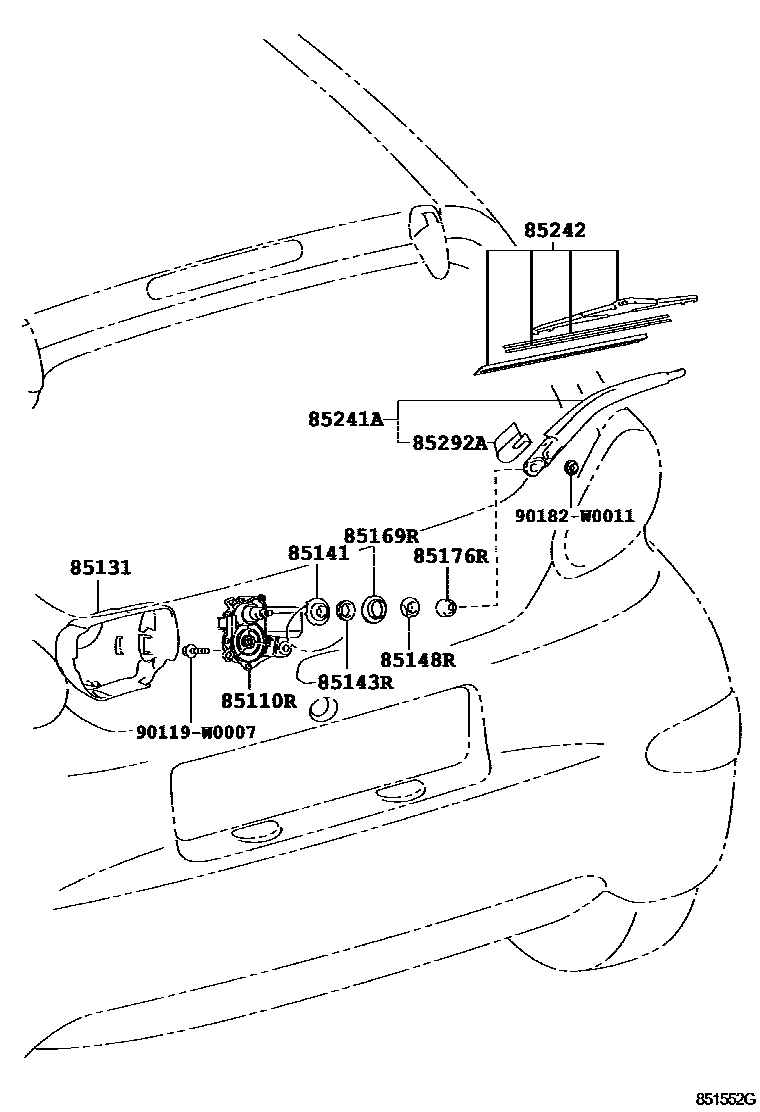

Toyota AYGO — REAR WIPER

85110RMOTOR ASSY, REAR WIPER

main85130-0H010iKGB10,WNB10200502-201202

85131COVER, REAR WIPER MOTOR

main85131-0H010iKGB10,WNB10200502-201202

85141HOLDER, RR WIPER MOTOR W/PACKING

main85141-0H010iKGB10,WNB10200502-201202

85143RGROMMET, REAR WIPER MOTOR

main85143-0H010iKGB10,WNB10200502-201202

85148RNUT, W/WASHER PACKING, REAR WIPER LINK PIVOT

main85133-0H010iKGB10,WNB10200502-201202

85169RWASHER, REAR WIPER LINK PIVOT, NO.1

main85134-0H010iKGB10,WNB10200502-201202

85176RCAP, REAR WIPER LINK

main85172-0H010iKGB10,WNB10200502-201202

85241AARM, REAR WIPER

main85241-0H010iKGB10,WNB10200502-201202

85242BLADE, RR WIPER

main85242-0H010iKGB10,WNB10200502-201202

85292ACAP, REAR WIPER ARM HEAD

main85245-0H010iKGB10,WNB10200502-201202

90119W0007

main90119-W0007

90182W0011

main90182-W0011

12 parts on this diagram · 1 diagram in section
