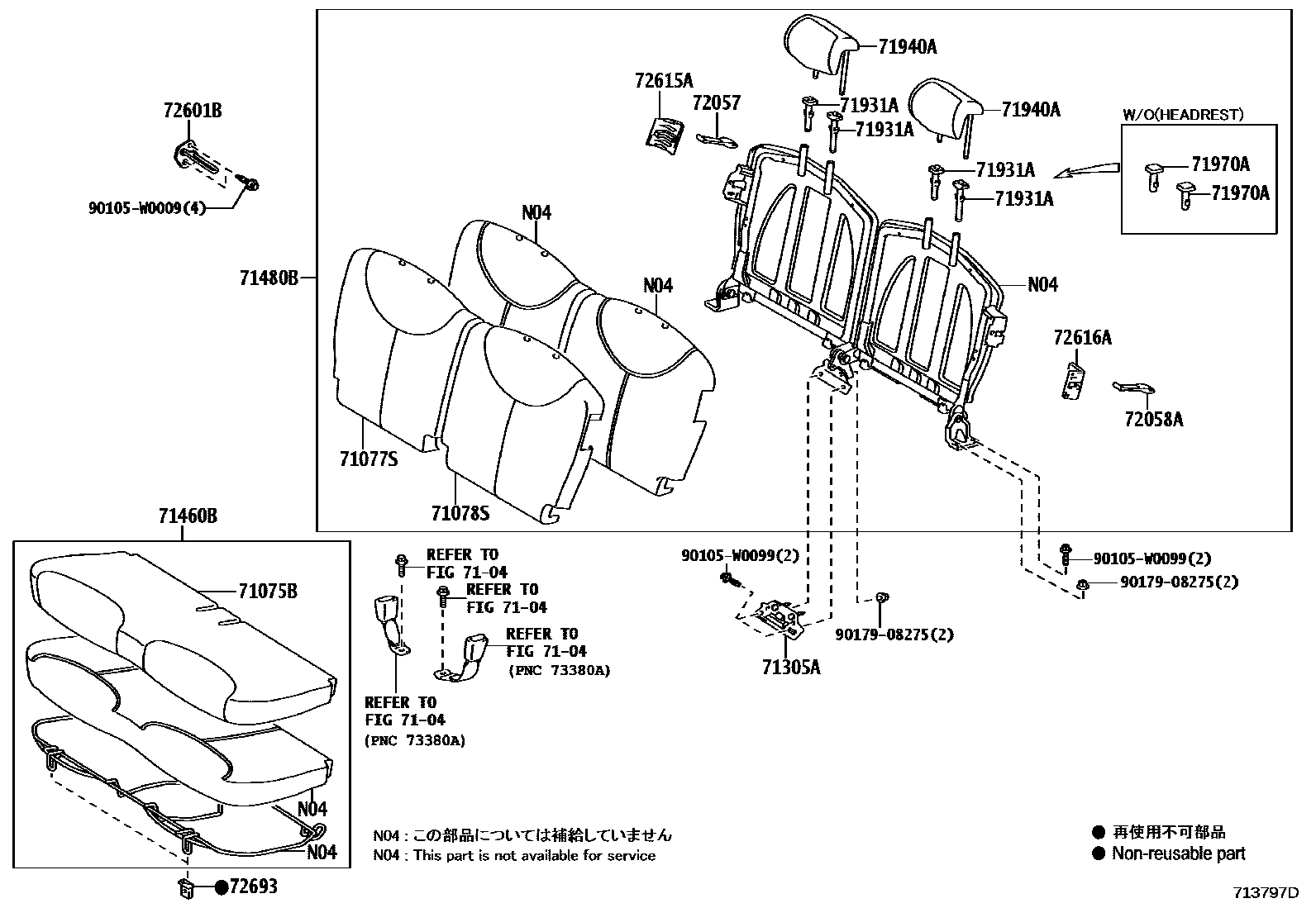

Toyota AYGO — REAR SEAT & SEAT TRACK
7104
71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)
T COLOR RING&REAR SEAT-50:50 FOLD&REAR HEADREST-SEPARATED(2PIECES)&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE E-TYPE),DARK GRAY,TRIM1#&3R3
DARK GRAY,TRIM1#&068 ,1E0 ,1E7 ,211 ,3P0 ,3R3 ,6T7 ,8R3 ,8U7
DARK GRAY,TRIM1#&068 ,1E0 ,1E7 ,211 ,3P0 ,3R3 ,6T7 ,8U7
DARK GRAY,TRIM10&068 ,1E0 ,1E7 ,211 ,3P0 ,3R3 ,6T7 ,8U7
DARK GRAY,TRIM10&068 ,1E0 ,1E7 ,211 ,3P0 ,3R3 ,6T7 ,8R3 ,8U7
T COLOR RING&REAR SEAT-50:50 FOLD&REAR HEADREST-SEPARATED(2PIECES)&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE E-TYPE),DARK GRAY,TRIM10&3R3
T COLOR RING&REAR SEAT-50:50 FOLD&REAR HEADREST-SEPARATED(2PIECES)&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN,E-TYPE),DARK GRAY,TRIM10&3R3
T COLOR RING&REAR SEAT-50:50 FOLD&REAR HEADREST-SEPARATED(2PIECES)&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN,E-TYPE),DARK GRAY,TRIM1#&3R3
T COLOR RING&REAR SEAT-50:50 FOLD&REAR HEADREST-SEPARATED(2PIECES)&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE E-TYPE),DK.GRAY,TRIM10,2#&3R3
DK.GRAY,TRIM10,2#&3R3
T COLOR RING&REAR SEAT-50:50 FOLD&REAR HEADREST-SEPARATED(2PIECES)&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE E-TYPE),DK.GRAY,TRIM1#,2#&3R3
T COLOR RING&REAR SEAT-50:50 FOLD&REAR HEADREST-SEPARATED(2PIECES)&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN,E-TYPE),DK.GRAY,TRIM10,2#&3R3
T COLOR RING&REAR SEAT-50:50 FOLD&REAR HEADREST-SEPARATED(2PIECES)&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN,E-TYPE),DK.GRAY,TRIM1#,2#&3R3
T COLOR RING&REAR SEAT-50:50 FOLD&REAR HEADREST-SEPARATED(2PIECES)&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE E-TYPE),DKGRAY/GREEN,TRIM2#
T COLOR RING&REAR SEAT-50:50 FOLD&REAR HEADREST-SEPARATED(2PIECES)&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN,E-TYPE),DKGRAY/GREEN,TRIM2#
DKGRAY/GREEN,TRIM2#
DK.GREY/WHITE/DARK GREY,TRIM10
DK.GREY/WHITE/ORANGE,TRIM15
DARK GREY/BLUE,TRIM16
DK.GREY/BLUE/DARK GREY,TRIM11
DARK GREY/DARK GREY,TRIM1#
MEDIUM GRAY,TRIM1#
MEDIUM GRAY,TRIM10
BEIGE,TRIM11
DARK GREY/DARK GREY,TRIM1#
71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)
DARK GRAY,TRIM1#&068 ,1E0 ,1E7 ,211 ,3P0 ,3R3 ,6T7 ,8R3 ,8U7
DARK GRAY,TRIM1#&068 ,1E0 ,1E7 ,211 ,3P0 ,3R3 ,6T7 ,8U7
DARK GRAY,TRIM10&068 ,1E0 ,1E7 ,211 ,3P0 ,3R3 ,6T7 ,8U7
T COLOR RING&REAR SEAT-50:50 FOLD&REAR HEADREST-SEPARATED(2PIECES)&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE E-TYPE),DARK GRAY,TRIM10&3R3
T COLOR RING&REAR SEAT-50:50 FOLD&REAR HEADREST-SEPARATED(2PIECES)&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN,E-TYPE),DARK GRAY,TRIM10&3R3
DARK GRAY,TRIM1#&068 ,1E0 ,1E7 ,211 ,3P0 ,3R3 ,6T7 ,8U7
T COLOR RING&REAR SEAT-50:50 FOLD&REAR HEADREST-SEPARATED(2PIECES)&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN,E-TYPE),DARK GRAY,TRIM1#&3R3
T COLOR RING&REAR SEAT-50:50 FOLD&REAR HEADREST-SEPARATED(2PIECES)&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE E-TYPE),DARK GRAY,TRIM1#&3R3
T COLOR RING&REAR SEAT-50:50 FOLD&REAR HEADREST-SEPARATED(2PIECES)&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE E-TYPE),DK.GRAY/RED,TRIM1#,2#&3R3
DK.GRAY/RED,TRIM10,2#&3R3
T COLOR RING&REAR SEAT-50:50 FOLD&REAR HEADREST-SEPARATED(2PIECES)&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE E-TYPE),DK.GRAY/RED,TRIM10,2#&3R3
T COLOR RING&REAR SEAT-50:50 FOLD&REAR HEADREST-SEPARATED(2PIECES)&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN,E-TYPE),DK.GRAY/RED,TRIM10,2#&3R3
T COLOR RING&REAR SEAT-50:50 FOLD&REAR HEADREST-SEPARATED(2PIECES)&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN,E-TYPE),DK.GRAY/RED,TRIM1#,2#&3R3
DKGRAY/GREEN,TRIM2#
T COLOR RING&REAR SEAT-50:50 FOLD&REAR HEADREST-SEPARATED(2PIECES)&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN,E-TYPE),DKGRAY/GREEN,TRIM2#
T COLOR RING&REAR SEAT-50:50 FOLD&REAR HEADREST-SEPARATED(2PIECES)&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE E-TYPE),DKGRAY/GREEN,TRIM2#
DK.GREY/WHITE/DARK GREY,TRIM10
DK.GREY/WHITE/ORANGE,TRIM15
DARK GREY/BLUE,TRIM16
DK.GREY/BLUE/DARK GREY,TRIM11
DARK GREY,TRIM1#
71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)
DARK GRAY,TRIM1#&068 ,1E0 ,1E7 ,211 ,3P0 ,3R3 ,6T7 ,8U7
DARK GRAY,TRIM1#&068 ,1E0 ,1E7 ,211 ,3P0 ,3R3 ,6T7 ,8R3 ,8U7
T COLOR RING&REAR SEAT-50:50 FOLD&REAR HEADREST-SEPARATED(2PIECES)&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN,E-TYPE),DARK GRAY,TRIM10&3R3
DARK GRAY,TRIM10&068 ,1E0 ,1E7 ,211 ,3P0 ,3R3 ,6T7 ,8U7
T COLOR RING&REAR SEAT-50:50 FOLD&REAR HEADREST-SEPARATED(2PIECES)&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE E-TYPE),DARK GRAY,TRIM10&3R3
T COLOR RING&REAR SEAT-50:50 FOLD&REAR HEADREST-SEPARATED(2PIECES)&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN,E-TYPE),DARK GRAY,TRIM1#&3R3
T COLOR RING&REAR SEAT-50:50 FOLD&REAR HEADREST-SEPARATED(2PIECES)&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE E-TYPE),DARK GRAY,TRIM1#&3R3
DARK GRAY,TRIM1#&068 ,1E0 ,1E7 ,211 ,3P0 ,3R3 ,6T7 ,8U7
DK.GRAY/RED,TRIM10,2#&3R3
T COLOR RING&REAR SEAT-50:50 FOLD&REAR HEADREST-SEPARATED(2PIECES)&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE E-TYPE),DK.GRAY/RED,TRIM10,2#&3R3
T COLOR RING&REAR SEAT-50:50 FOLD&REAR HEADREST-SEPARATED(2PIECES)&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE E-TYPE),DK.GRAY/RED,TRIM1#,2#&3R3
T COLOR RING&REAR SEAT-50:50 FOLD&REAR HEADREST-SEPARATED(2PIECES)&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN,E-TYPE),DK.GRAY/RED,TRIM10,2#&3R3
T COLOR RING&REAR SEAT-50:50 FOLD&REAR HEADREST-SEPARATED(2PIECES)&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN,E-TYPE),DK.GRAY/RED,TRIM1#,2#&3R3
T COLOR RING&REAR SEAT-50:50 FOLD&REAR HEADREST-SEPARATED(2PIECES)&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN,E-TYPE),DKGRAY/GREEN,TRIM2#
DKGRAY/GREEN,TRIM2#
T COLOR RING&REAR SEAT-50:50 FOLD&REAR HEADREST-SEPARATED(2PIECES)&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE E-TYPE),DKGRAY/GREEN,TRIM2#
DK.GREY/WHITE/DARK GREY,TRIM10
DK.GREY/WHITE/ORANGE,TRIM15
DARK GREY/BLUE,TRIM16
DK.GREY/BLUE/DARK GREY,TRIM11
DARK GREY,TRIM1#
71305AHINGE SUB-ASSY, REAR SEATBACK, CENTER
REAR SEAT-50:50 FOLD
71460BCUSHION ASSY, REAR SEAT (FOR BENCH TYPE)
DK.GRAY,TRIM1#&068 ,1E0 ,1E7 ,211 ,3P0 ,3R3 ,6T7 ,8R3 ,8U7
DK.GRAY,TRIM1#&068 ,1E0 ,1E7 ,211 ,3P0 ,3R3 ,6T7 ,8U7
DK.GRAY,TRIM1#
DK.GRAY/RED,TRIM21
T COLOR RING&REAR SEAT-50:50 FOLD&REAR HEADREST-SEPARATED(2PIECES)&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN,E-TYPE),DK.GRAY/RED,TRIM21
T COLOR RING&REAR SEAT-50:50 FOLD&REAR HEADREST-SEPARATED(2PIECES)&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE E-TYPE),DK.GRAY/RED,TRIM21
DK.GRAY/RED,TRIM2#
T COLOR RING&REAR SEAT-50:50 FOLD&REAR HEADREST-SEPARATED(2PIECES)&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE E-TYPE),DK.GRAY/RED,TRIM2#
T COLOR RING&REAR SEAT-50:50 FOLD&REAR HEADREST-SEPARATED(2PIECES)&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN,E-TYPE),DK.GRAY/RED,TRIM2#
T COLOR RING&REAR SEAT-50:50 FOLD&REAR HEADREST-SEPARATED(2PIECES)&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE E-TYPE),DKGRAY/GREEN,TRIM2#
DKGRAY/GREEN,TRIM22
T COLOR RING&REAR SEAT-50:50 FOLD&REAR HEADREST-SEPARATED(2PIECES)&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE E-TYPE),DKGRAY/GREEN,TRIM22
T COLOR RING&REAR SEAT-50:50 FOLD&REAR HEADREST-SEPARATED(2PIECES)&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN,E-TYPE),DKGRAY/GREEN,TRIM22
DKGRAY/GREEN,TRIM2#
T COLOR RING&REAR SEAT-50:50 FOLD&REAR HEADREST-SEPARATED(2PIECES)&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN,E-TYPE),DKGRAY/GREEN,TRIM2#
DARK GREY/DARK GREY,TRIM10
DK.GREY/WHITE/DARK GREY,TRIM11
DK.GREY/WHITE/ORANGE,TRIM15
DARK GRAY/BLUE,TRIM16
DARK GREY/DARK GREY,TRIM1#
DK.GREY,TRIM10
DK.GREY/BEIGE(TMC),TRIM11
DK.GRAY,TRIM10
DK.GRAY/BEIGE,TRIM11
DK.GRAY,TRIM10
DK.GRAY,TRIM1#
DK.GRAY/BEIGE,TRIM11
DARK GREY/DARK GREY,TRIM1#
71480BBACK ASSY, REAR SEAT (FOR BENCH TYPE)
DARK GRAY,TRIM1#
DARK GRAY,TRIM1#&068 ,1E0 ,1E7 ,211 ,3P0 ,3R3 ,6T7 ,8R3 ,8U7
DARK GRAY,TRIM1#&068 ,1E0 ,1E7 ,211 ,3P0 ,3R3 ,6T7 ,8U7
T COLOR RING&REAR SEAT-50:50 FOLD&REAR HEADREST-SEPARATED(2PIECES)&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN,E-TYPE),DK.GRAY/RED,TRIM21
DK.GRAY/RED,TRIM2#
T COLOR RING&REAR SEAT-50:50 FOLD&REAR HEADREST-SEPARATED(2PIECES)&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE E-TYPE),DK.GRAY/RED,TRIM2#
T COLOR RING&REAR SEAT-50:50 FOLD&REAR HEADREST-SEPARATED(2PIECES)&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN,E-TYPE),DK.GRAY/RED,TRIM2#
DK.GRAY/RED,TRIM21
T COLOR RING&REAR SEAT-50:50 FOLD&REAR HEADREST-SEPARATED(2PIECES)&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE E-TYPE),DK.GRAY/RED,TRIM21
DKGRAY/GREEN,TRIM22
T COLOR RING&REAR SEAT-50:50 FOLD&REAR HEADREST-SEPARATED(2PIECES)&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE E-TYPE),DKGRAY/GREEN,TRIM22
T COLOR RING&REAR SEAT-50:50 FOLD&REAR HEADREST-SEPARATED(2PIECES)&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN,E-TYPE),DKGRAY/GREEN,TRIM22
DKGRAY/GREEN,TRIM2#
T COLOR RING&REAR SEAT-50:50 FOLD&REAR HEADREST-SEPARATED(2PIECES)&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE E-TYPE),DKGRAY/GREEN,TRIM2#
T COLOR RING&REAR SEAT-50:50 FOLD&REAR HEADREST-SEPARATED(2PIECES)&SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN,E-TYPE),DKGRAY/GREEN,TRIM2#
DARK GREY/DARK GREY,TRIM10
DK.GREY/WHITE/DARK GREY,TRIM11
DK.GREY/WHITE/DARK GREY,TRIM15
DARK GRAY/BLUE,TRIM16
DARK GRAY/DARK GREY,TRIM1#
DARK GREY/DARK GREY,TRIM1#
DARK GREY,TRIM1#
DARK GREY/DARK GREY,TRIM10
BEIGE/BEIGE,TRIM11
DK.GRAY,TRIM10
DK.GRAY/BEIGE,TRIM11
DK.GREY,TRIM1#
DK.GREY,TRIM10
DK.GREY/BEIGE,TRIM11
71931ASUPPORT, REAR SEAT HEADREST
W/O(LOCK),REAR SEAT-50:50 FOLD&REAR HEADREST-SEPARATEDX2&SRS AIR BAG-WITH(DRIVER+PASSENGER+SIDE E-TYPE)
W/O(LOCK)
W/O(LOCK),REAR HEADREST-SEPARATED(2PIECES)
W/O(LOCK),REAR SEAT-50:50 FOLD&REAR HEADREST-SEPARATEDX2
W/O(LOCK),REAR SEAT-50:50 FOLD&REAR HEADREST-SEPARATEDX2&SRS AIR BAG-W(DRIVER+PASSENGER+SIDE+CURTAIN,E-TYPE)
W/O(LOCK),REAR HEADREST-SEPARATEDX2
W/O(LOCK),REAR HEADREST-SEPARATEDX2&SRS AIR BAG-WITH(DRIVER+PASSENGER+SIDE E-TYPE)
W/O(LOCK),REAR HEADREST-SEPARATEDX2&SRS AIR BAG-W(DRIVER+PASSENGER+SIDE+CURTAIN,E-TYPE)
W(LOCK)
W(LOCK),REAR SEAT-50:50 FOLD&REAR HEADREST-SEPARATEDX2
W(LOCK),REAR SEAT-50:50 FOLD&REAR HEADREST-SEPARATEDX2&SRS AIR BAG-WITH(DRIVER+PASSENGER+SIDE E-TYPE)
W(LOCK),REAR SEAT-50:50 FOLD&REAR HEADREST-SEPARATEDX2&SRS AIR BAG-W(DRIVER+PASSENGER+SIDE+CURTAIN,E-TYPE)
W(LOCK),REAR HEADREST-SEPARATEDX2
W(LOCK),REAR HEADREST-SEPARATEDX2&SRS AIR BAG-WITH(DRIVER+PASSENGER+SIDE E-TYPE)
W(LOCK),REAR HEADREST-SEPARATEDX2&SRS AIR BAG-W(DRIVER+PASSENGER+SIDE+CURTAIN,E-TYPE)
W(LOCK),REAR HEADREST-SEPARATED(2PIECES)
71940AHEADREST ASSY, REAR SEAT
DARK GREY,TRIM1#
DARK GREY,TRIM10,11,16
ORANGE,TRIM15
REAR SEAT-50:50 FOLD&REAR HEADREST-SEPARATEDX2&SRS AIR BAG-W(DRIVER+PASSENGER+SIDE+CURTAIN,E-TYPE),DARK GREY,TRIM1#
REAR HEADREST-SEPARATEDX2,DARK GREY,TRIM1#
REAR HEADREST-SEPARATEDX2&SRS AIR BAG-WITH(DRIVER+PASSENGER+SIDE E-TYPE),DARK GREY,TRIM1#
REAR HEADREST-SEPARATEDX2&SRS AIR BAG-W(DRIVER+PASSENGER+SIDE+CURTAIN,E-TYPE),DARKGREY,TRIM1#
DARK GREY,TRIM10
REAR SEAT-50:50 FOLD&REAR HEADREST-SEPARATEDX2,DARK GREY,TRIM1#
REAR SEAT-50:50 FOLD&REAR HEADREST-SEPARATEDX2&SRS AIR BAG-WITH(DRIVER+PASSENGER+SIDE E-TYPE),DARK GREY,TRIM1#
DARK GREY,TRIM1#,2#
BEIGE,TRIM11
71970ACOVER, REAR SEAT HEADREST
72057LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, RH
MEDIUM GREY,TRIM1#
MEDIUM GREY,TRIM1#,2#
DARK GREY,TRIM1#
72058ALEVER SUB-ASSY, REAR SEAT LOCK CONTROL, LH
MEDIUM GREY,TRIM1#
MEDIUM GREY,TRIM1#,2#
DARK GREY,TRIM1#
72615ACOVER, REAR SEATBACK LOCK STRIKER, RH
DARK GREY,TRIM1#,2#
DARK GREY,TRIM1#
72616ACOVER, REAR SEATBACK LOCK STRIKER, LH
DARK GREY,TRIM1#
DARK GREY,TRIM1#,2#
72693HOOK, REAR SEAT CUSHION LOCK
90105W0009
main90105-W0009
90105W0099
main90105-W0099
9017908275
main90179-08275
19 parts on this diagram · 2 diagrams in section
