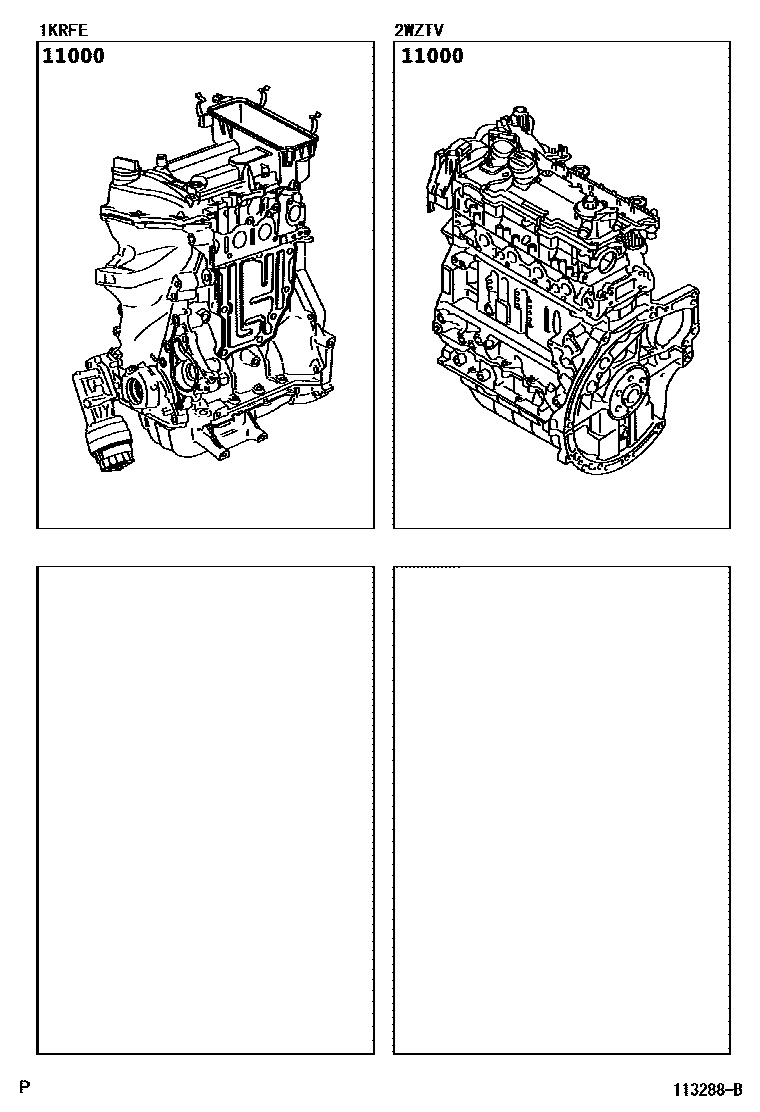

Toyota AYGO — PARTIAL ENGINE ASSEMBLY

11000ENGINE ASSY, PARTIAL

main19000-0Q010i1KRFE..KGB10200502-200509

sub19000-0Q011

sub89661-0H012

sub89661-0H022

main19000-0Q011i1KRFE..KGB10200509-201009

sub19000-0Q040

main19000-0Q040i1KRFE..KGB10201009-201202

main19000-0Q060i1KRFE..KGB10201202-201406

mainSU00100718i2WZTV..WNB10200505-201009

1 parts on this diagram · 1 diagram in section
