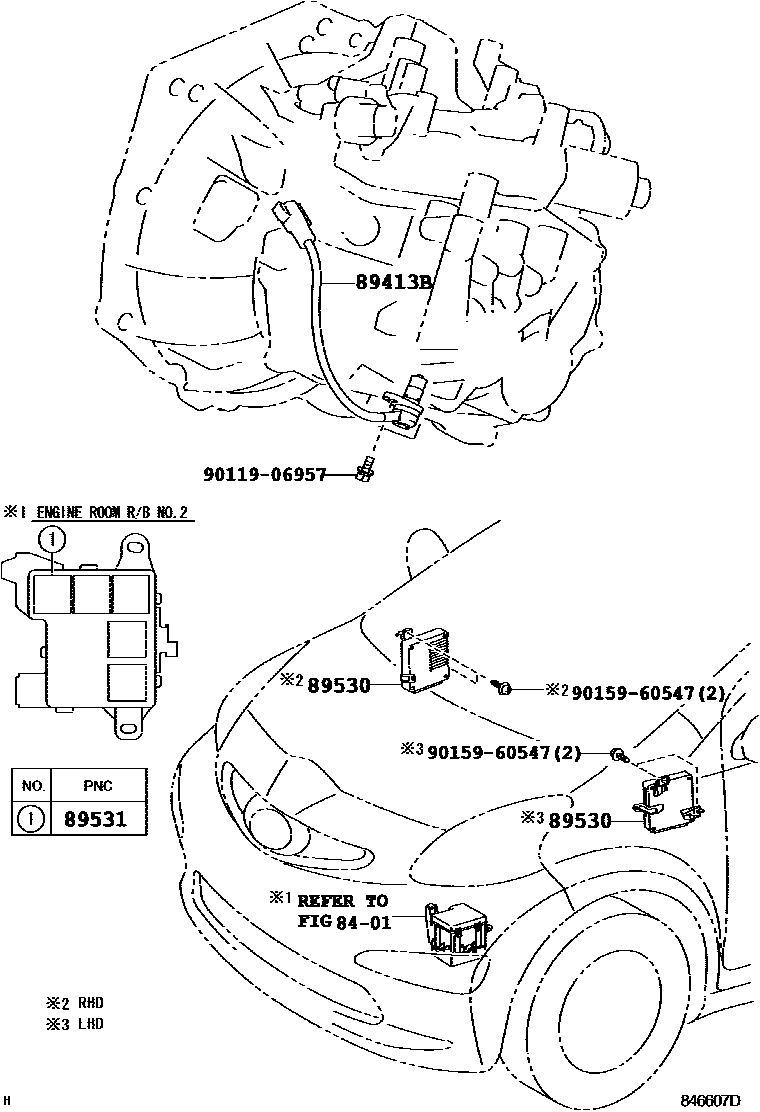

Toyota AYGO — OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

8401

89413BSENSOR, TRANSMISSION REVOLUTION

main89413-70010iKGB10..5FS200505-201406

sub89413-70020

89530COMPUTER ASSY, TRANSMISSION CONTROL

main89530-70010iKGB10..LHD..5FS200505-200904

sub89530-70011

main89530-70011iKGB10..LHD..5FS200905-201009

sub89530-70090

main89530-70020iKGB10..RHD..5FS200505-200904

sub89530-70021

main89530-70021iKGB10..RHD..5FS200905-201009

sub89530-70100

main89530-70090iKGB10..LHD..5FS201009-201202

main89530-70100iKGB10..RHD..5FS201009-201202

main89530-70130iKGB10..LHD..5FS201202-201307

main89530-70140iKGB10..RHD..5FS201202-201307

main89530-70150iKGB10..LHD..5FS201307

main89530-70160iKGB10..RHD..5FS201307

89531RELAY, TRANSMISSION CONTROL

main90080-87030iKGB10..5FS200505-201202

9011906957

main90119-06957

9015960547

main90159-60547

6 parts on this diagram · 1 diagram in section
