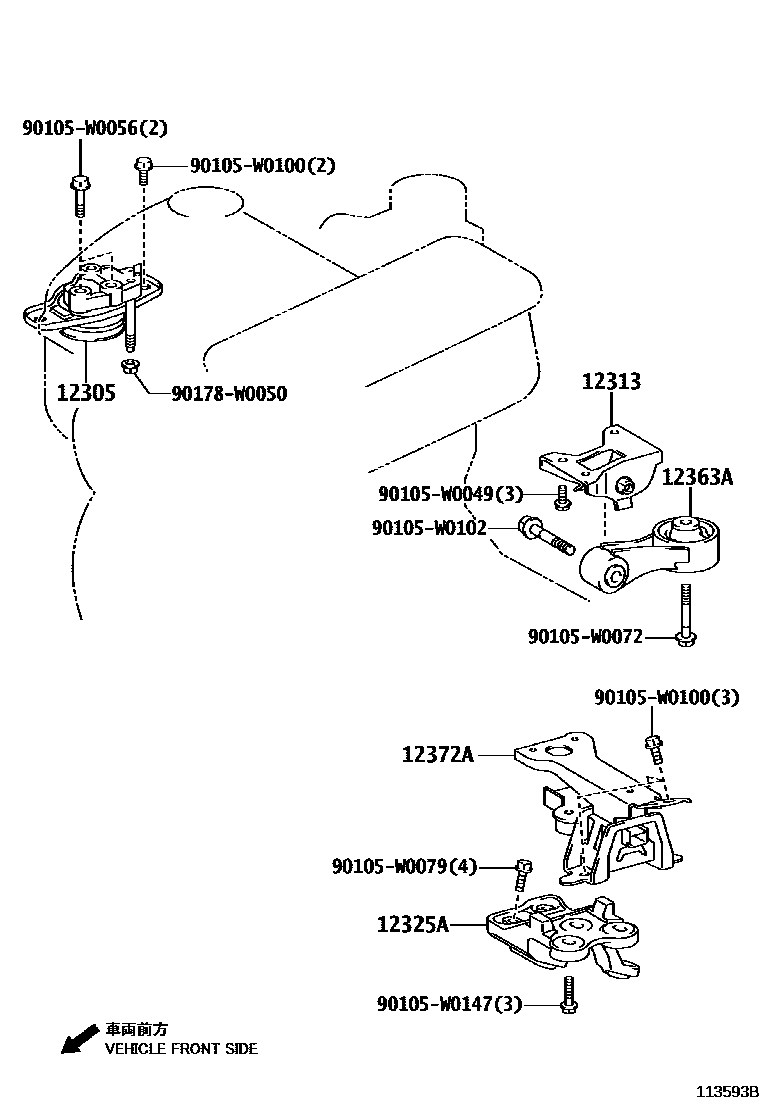

Toyota AYGO — MOUNTING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH

main12305-0Q010i1KRFE..KGB10200502-201202

main12305-YV010i2WZTV..WNB10200505-201009

12313BRACKET, ENGINE MOUNTING CONTROL(FOR TRANSVERSE ENGINE)

main12313-0Q010i1KRFE..KGB10200502-201202

main12313-YV010i2WZTV..WNB10200505-201009

12325ABRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12325-0Q010i1KRFE..KGB10200502-201202

sub12325-0Q041

main12325-YV010i2WZTV..WNB10200505-201009

12363AROD, ENGINE MOVING CONTROL

main12363-0Q010i1KRFE..KGB10200502-201202

main12363-YV010i2WZTV..WNB10200505-201009

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12372-0Q010i1KRFE..KGB10200502-200705

sub12372-0Q030

main12372-0Q030i1KRFE..KGB10200705-201402

sub12372-0Q031

main12372-0Q031i1KRFE..KGB10201402-201405

main12372-YV010i2WZTV..WNB10200505-200706

sub12372-YV020

main12372-YV020i2WZTV..WNB10200706-201009

90105W0049

main90105-W0049

90105W0056

main90105-W0056

90105W0072

main90105-W0072

90105W0079

main90105-W0079

90105W0100

main90105-W0100

90105W0102

main90105-W0102

90105W0147

main90105-W0147

90178W0050

main90178-W0050

13 parts on this diagram · 6 diagrams in section
