Toyota AYGO — MIRROR
87810MIRROR ASSY, INNER REAR VIEW
DARK GREY,TRIM1#,2#
87908BMIRROR SUB-ASSY, RH
87909BMIRROR SUB-ASSY, LH
87910MIRROR ASSY, OUTER REAR VIEW, RH
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
87915COVER, OUTER MIRROR, RH
T IP+SP PACKAGE; T IP+SP+MIRROR+HANDLE PACKAGE
87940MIRROR ASSY, OUTER REAR VIEW, LH
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
87945COVER, OUTER MIRROR, LH
90159W0016
main90159-W0016
9016360024
main90163-60024
9 parts on this diagram · 1 diagram in section

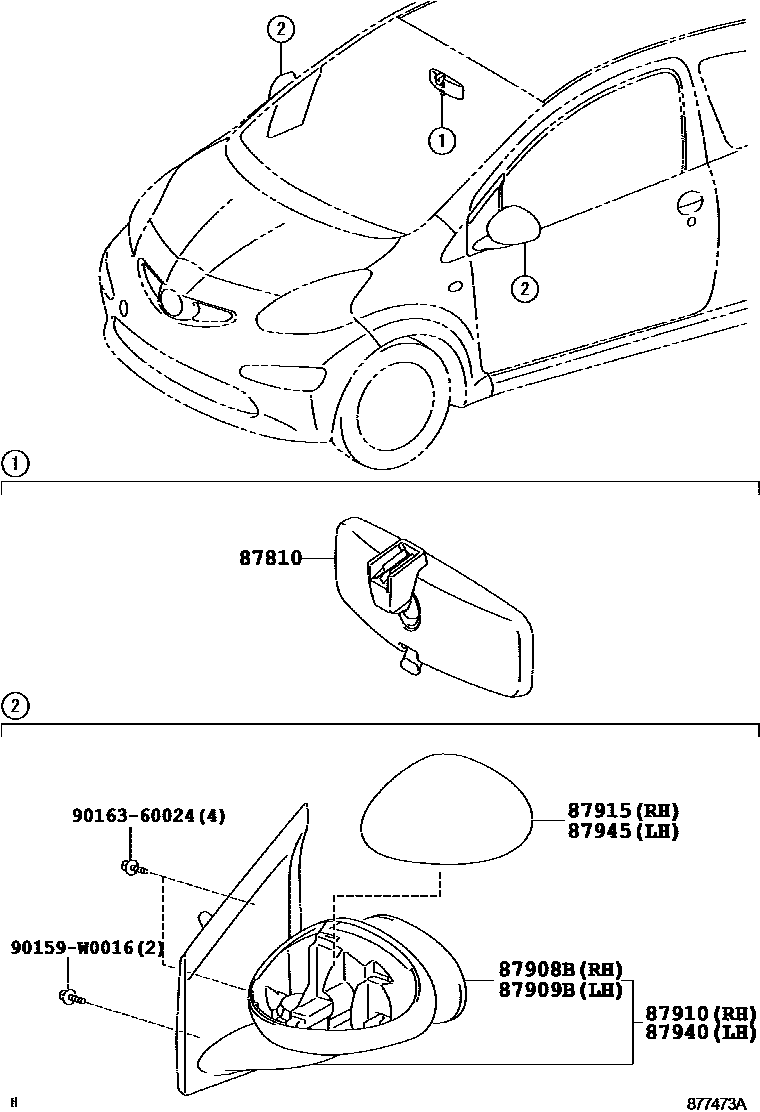

MIRROR for Toyota AYGO
This section contains 9 genuine Toyota parts for the MIRROR system of the Toyota AYGO. Key components include: MIRROR ASSY, INNER REAR VIEW, MIRROR SUB-ASSY, RH, MIRROR SUB-ASSY, LH, MIRROR ASSY, OUTER REAR VIEW, RH, COVER, OUTER MIRROR, RH.
