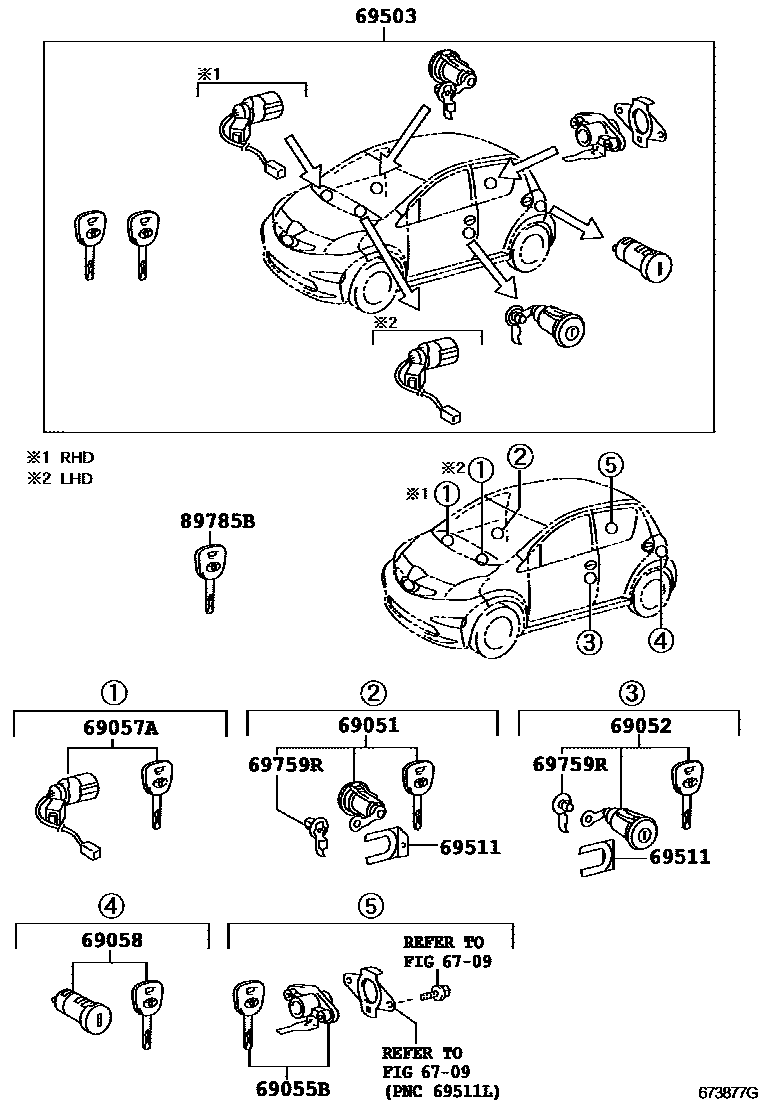

Toyota AYGO — LOCK CYLINDER SET

0001 1W/O(WIRELESS DOOR LOCK) 0002 1W(WIRELESS DOOR LOCK)

6709

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-0H010iKGB10,WNB10200502-201202

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69051-0H010iKGB10,WNB10200502-201202

69055BCYLINDER & KEY SET, BACK DOOR LOCK

main69055-0H010iKGB10..LEDIN200502-201202

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-0H010iKGB10,WNB10200502-200812

sub69057-0H011

main69057-0H011iWNB10200812-201011

sub69057-0H012

main69057-0H012iKGB10201012-201202

69058CYLINDER & KEY SET, FUEL FILLER LID

main69058-0H010iKGB10,WNB10200502-201202

69503CYLINDER SET, LOCK

main69005-0H901iKGB10,WNB10..LV1200502-200805

POWER PACKAGE

sub69005-0H904

main69005-0H902iKGB10..LEDIN200502-200805

sub69005-0H903

main69005-0H903iKGB10..LEDIN200806-201011

sub69005-0H908

main69005-0H904iKGB10..LHD..LEDIN200806-201011

POWER PACKAGE

sub69005-0H909

main69005-0H904iWNB10200812-201009

sub69005-0H909

main69005-0H908iKGB10..LEDIN201012-201306

sub69005-0H911

main69005-0H910iKGB10..LEDIN201012-201202

POWER PACKAGE

main69005-0H911iKGB10..LEDIN201306

69511RETAINER, FRONT DOOR LOCK CYLINDER

main69511-0H010iKGB10,WNB10200502-200612

sub69511-0H011

main69511-0H011iWNB10200701-201202

69759RSNAP, FRONT DOOR LOCK CYLINDER

main69759-32090iKGB10,WNB10200502-201202

RH

main69759-32100iKGB10200502-201202

LH

89785BTRANSMITTER, TRANSPONDER KEY MASTER

main89785-0H010iKGB10..LEDIN200502-201406

CUT KEY

main89785-0H010iKGB10..LEDIN200502-201406

POWER PACKAGE,CUT KEY

main89785-0H040iKGB10,WNB10200502-201406

BLANK KEY

10 parts on this diagram · 2 diagrams in section
