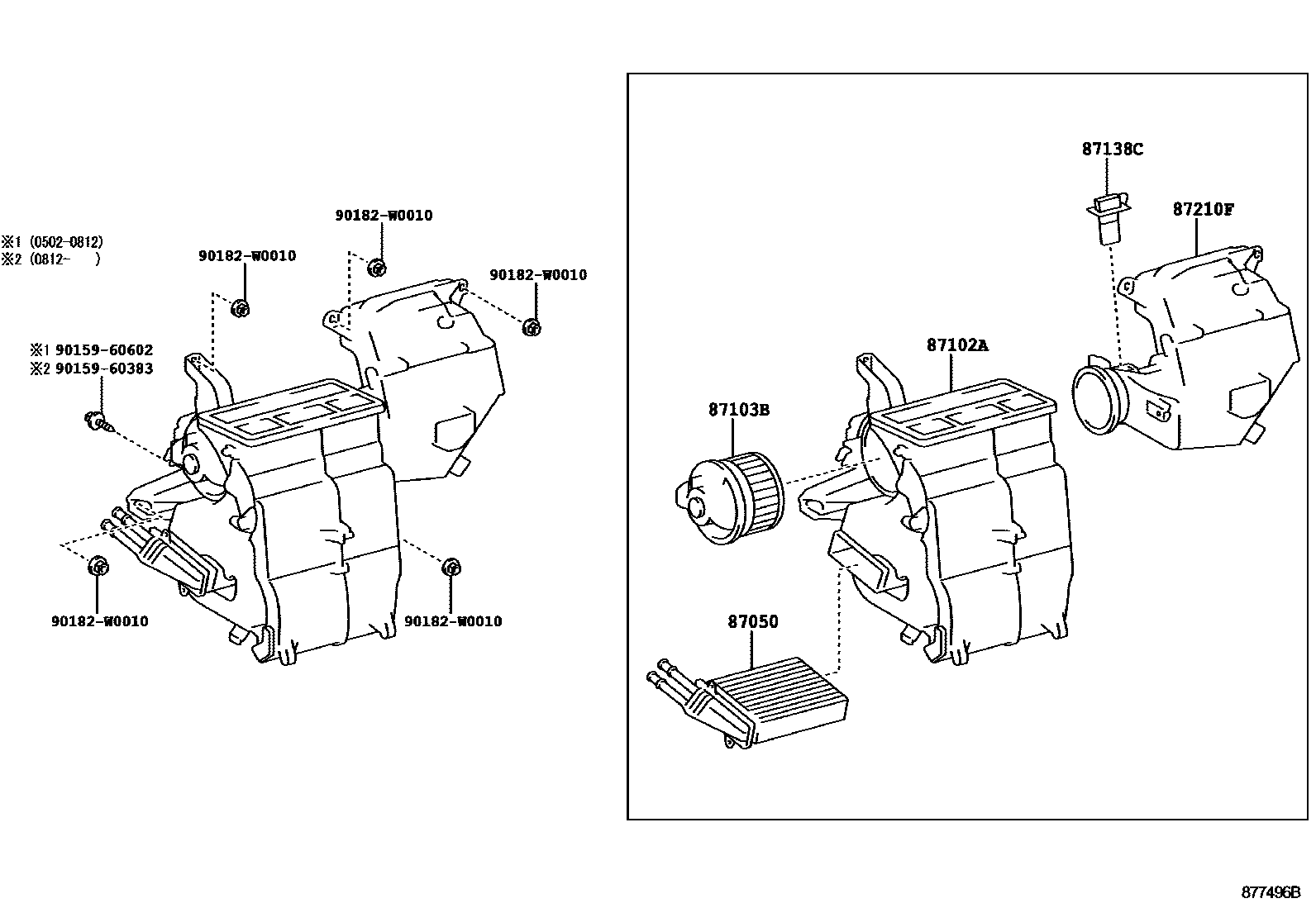

Toyota AYGO — HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1 0003 1COLD SPEC 0004 1COLD SPEC 0005 1W(AIR CONDITIONER) 0006 1COLD SPEC & W(AIR CONDITIONER0007 1COLD SPEC & W(AIR CONDITIONER0008 1 0009 1 0010 1W(AIR CONDITIONER)

87050RADIATOR ASSY, AIR CONDITIONER

main87050-0H010iKGB10200502-201202

main87050-0H040iWNB10200505-201009

87102ACASE SUB-ASSY, RADIATOR

main87102-0H010iKGB10200502-201202

main87102-0H040iWNB10200505-201009

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-0H020iWNB10..LHD200502-201107

sub87103-0H021

main87103-0H021iKGB10..LHD201108-201202

main87103-0H040iKGB10..RHD200502-201107

sub87103-0H041

main87103-0H041iKGB10..RHD201108-201202

87138CRESISTOR, BLOWER

main87138-0H010iKGB10200502-201202

87210FCASE ASSY, AIR DAMPER

main87210-0H020iKGB10,WNB10..LHD200502-201202

main87210-0H040iKGB10,WNB10..RHD200502-201202

9015960383

main90159-60383

9015960602

main90159-60602

90182W0010

main90182-W0010

8 parts on this diagram · 10 diagrams in section
