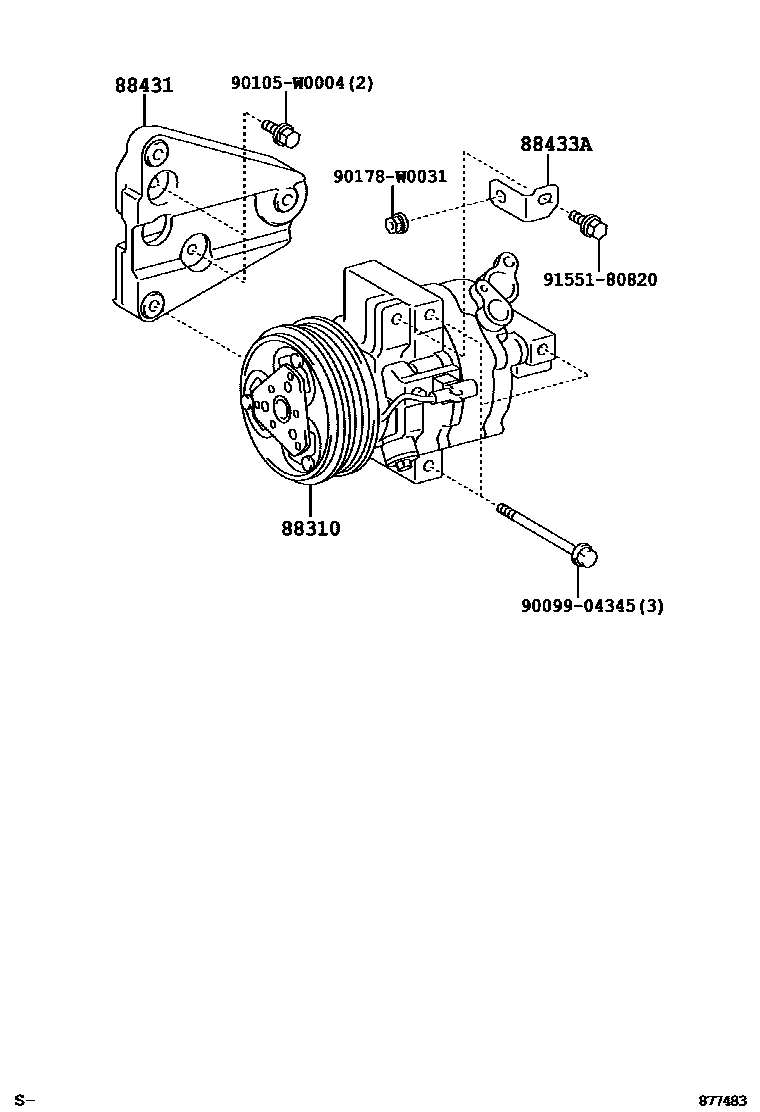

Toyota AYGO — HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1

88310COMPRESSOR ASSY, W/PULLEY

main88310-0H010

main88310-0H020

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-0H010

88433ASTAY, COMPRESSOR

9009904345

main90099-04345

90105W0004

main90105-W0004

90178W0031

main90178-W0031

9155180820

main91551-80820

7 parts on this diagram · 2 diagrams in section
