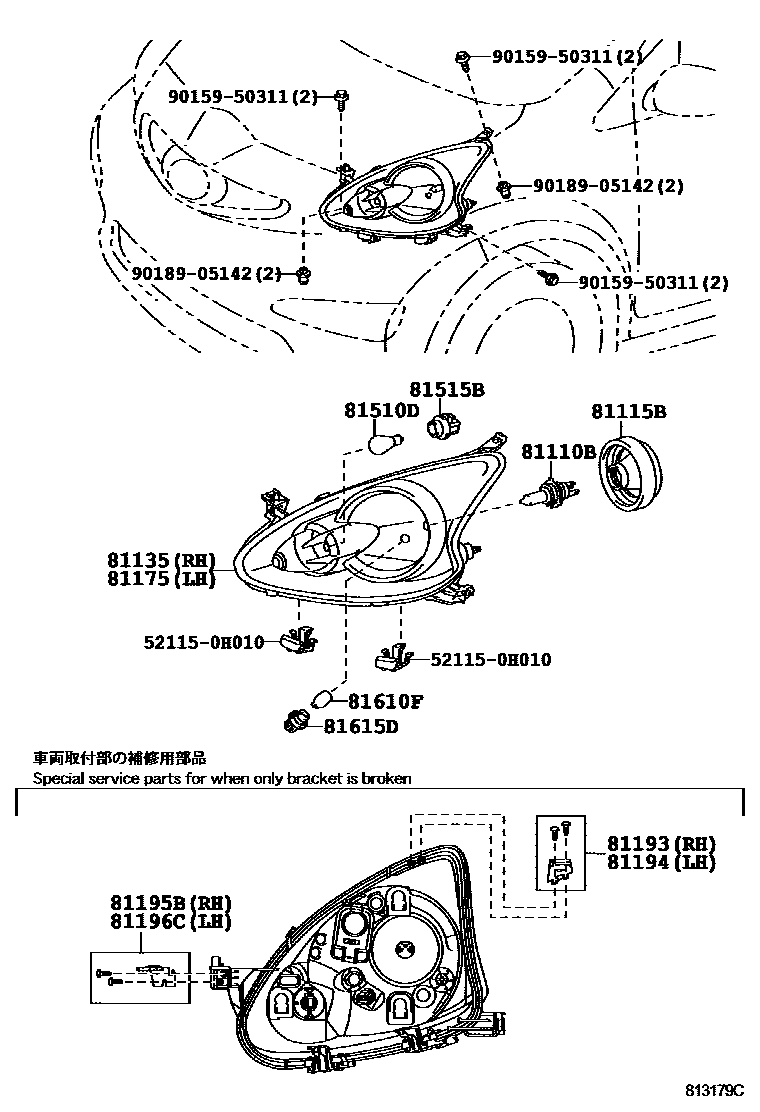

Toyota AYGO — HEADLAMP

0001 1 0002 1

81110BBULB(FOR HEADLAMP, NO.1)

main90080-81085iKGB10,WNB10200502-201202

12V 55/60W

81115BSOCKET,HEADLAMP, NO.1

main81139-0D010iKGB10,WNB10200502-201202

81135UNIT ASSY, HEADLAMP, RH

main81130-0H010iWNB10..LHD200502-201104

sub81130-0H011

main81130-0H011iKGB10..LHD201104-201202

main81130-0H020iKGB10..RHD200502-201104

sub81130-0H021

main81130-0H021iKGB10..RHD201104-201202

81175UNIT ASSY, HEADLAMP, LH

main81170-0H010iWNB10..LHD200502-201104

sub81170-0H011

main81170-0H011iKGB10..LHD201104-201202

main81170-0H020iKGB10..RHD200502-201104

sub81170-0H021

main81170-0H021iKGB10..RHD201104-201202

81193RETAINER, HEADLAMP PROTECTOR, UPPER RH

main81193-0H010iWNB10200502-201202

81194RETAINER, HEADLAMP PROTECTOR, UPPER LH

main81194-0H010iKGB10,WNB10200502-201202

81195BRETAINER, RH HEADLAMP PROTECTOR, LOWER RH

main81195-0H010iKGB10,WNB10200502-201202

81196CRETAINER, LH HEADLAMP PROTECTOR, LOWER LH

main81196-0H010iKGB10,WNB10200502-201202

81510DBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-WF003iKGB10,WNB10200502-201202

12V 21W

81515BSOCKET, FRONT TURN SIGNAL LAMP

main90069-81082iKGB10,WNB10200502-201202

81610FBULB(FOR CLEARANCE LAMP)

main90981-WB003iKGB10,WNB10200502-201202

12V 5W

81615DSOCKET, CLEARANCE LAMP

main81275-02070iKGB10,WNB10200502-201202

521150H010GUARD, BUMPER, FRONT LH

main52115-0H010

9015950311

main90159-50311

9018905142

main90189-05142

15 parts on this diagram · 2 diagrams in section
