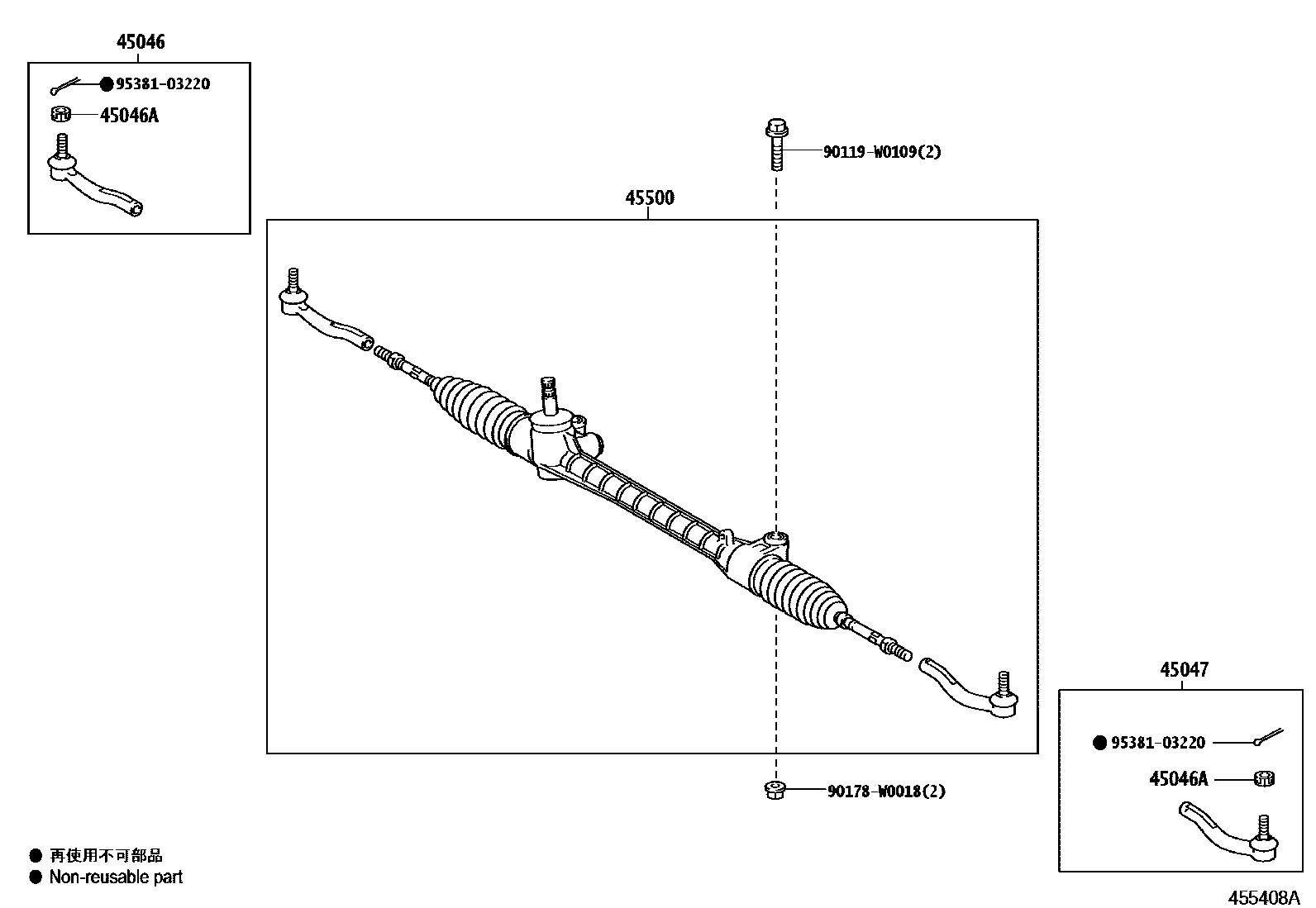

Toyota AYGO — FRONT STEERING GEAR & LINK

0001 1 0003 1 0004 1 0006 1

45046END SUB-ASSY, TIE ROD, RH

main45046-09295iKGB10200502-201202

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iKGB10,WNB10200502-201202

45047END SUB-ASSY, TIE ROD, LH

main45047-09125iWNB10200502-201202

45500LINK ASSY, STEERING

main45500-0H010iKGB10,WNB10..LHD..LV1200502-201202

STEERING-ELECTRIC POWER STEERING

main45500-0H010iKGB10..LHD..LEDIN200812-201009

main45500-0H020iWNB10..RHD200812-201202

main45500-0H020iKGB10,WNB10..RHD..LV1200502-200812

STEERING-ELECTRIC POWER STEERING

main45500-0H030iKGB10..LHD..LEDIN200502-201307

main45500-0H040iKGB10..RHD..LEDIN200502-200812

90119W0109

main90119-W0109

90178W0018

main90178-W0018

9538103220

main95381-03220

7 parts on this diagram · 4 diagrams in section
