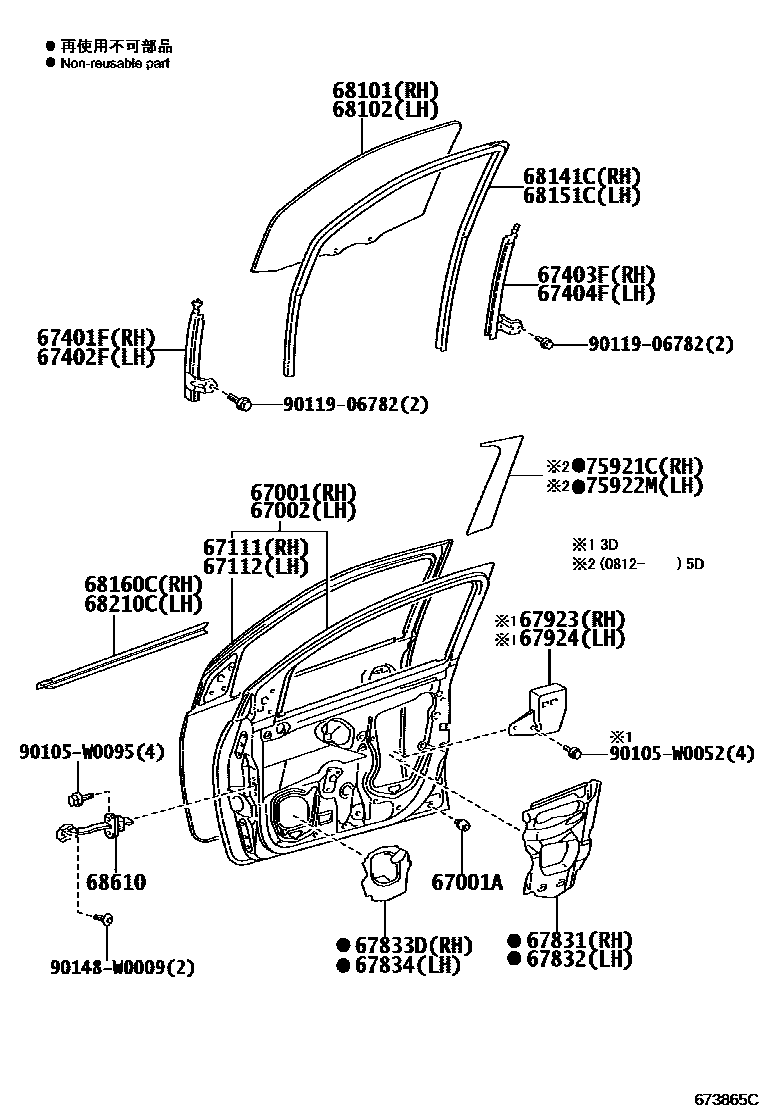

Toyota AYGO — FRONT DOOR PANEL & GLASS
67001PANEL SUB-ASSY, FRONT DOOR, RH
67001ACUSHION, FRONT DOOR PANEL
67002PANEL SUB-ASSY, FRONT DOOR, LH
67111PANEL, FRONT DOOR, OUTER RH
67112PANEL, FRONT DOOR, OUTER LH
67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH
67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH
67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67831COVER, FRONT DOOR SERVICE HOLE, RH
67832COVER, FRONT DOOR SERVICE HOLE, LH
67833DCOVER, FRONT DOOR SERVICE HOLE, NO.2 RH
AUDIO-RADIO LESS,4SPEAKER
AUDIO-RADIO+CD 4SPEAKER
AUDIO-RADIO+CD+USB+BLUETOOTH 4SPEAKER
67834COVER, FRONT DOOR SERVICE HOLE, NO.2 LH
AUDIO-RADIO+CD 4SPEAKER
AUDIO-RADIO+CD+USB+BLUETOOTH 4SPEAKER
AUDIO-RADIO LESS,4SPEAKER
67923CUSHION, FRONT DOOR STIFFENER, NO.1
67924CUSHION, FRONT DOOR STIFFENER, NO.2
68101GLASS SUB-ASSY, FRONT DOOR, RH
*TT,T=3.1,GREEN
*TT,T=3.1,GREEN
68102GLASS SUB-ASSY, FRONT DOOR, LH
*TT,T=3.1,GREEN
*TT,T=3.1,GREEN
68141CRUN, FRONT DOOR GLASS, RH
68151CRUN, FRONT DOOR GLASS, LH
75921CTAPE, BLACK OUT, NO.1 RH
75922MTAPE, BLACK OUT, NO.1 LH
90105W0052
main90105-W0052
90105W0095
main90105-W0095
9011906782
main90119-06782
90148W0009
main90148-W0009
28 parts on this diagram · 2 diagrams in section
