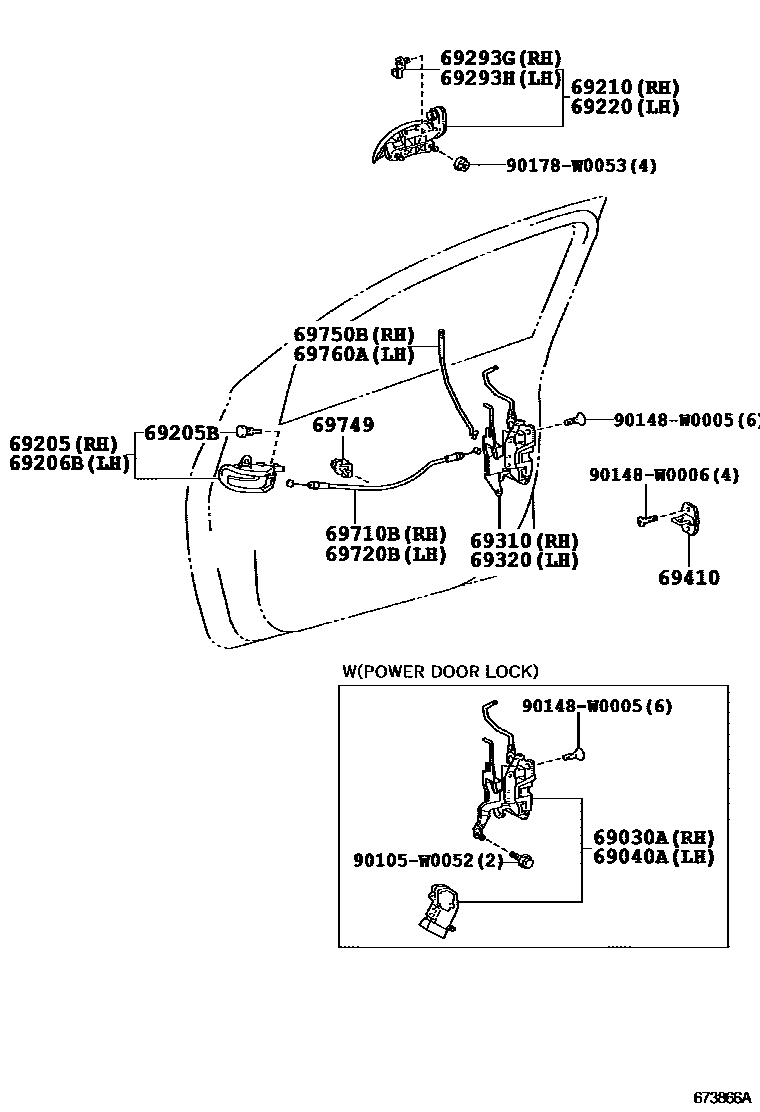

Toyota AYGO — FRONT DOOR LOCK & HANDLE
69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH
POWER PACKAGE
POWER PACKAGE
POWER PACKAGE
POWER PACKAGE
69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH
POWER PACKAGE
POWER PACKAGE
POWER PACKAGE
POWER PACKAGE
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
MEDIUM GREY,TRIM1#
MEDIUM GREY,TRIM1#,2#
DARK GREY,TRIM1#
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
MEDIUM GREY,TRIM1#
MEDIUM GREY,TRIM1#,2#
DARK GREY,TRIM1#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
NO PAINT REQ.
T IP+SP+MIRROR+HANDLE PACKAGE
T IP+SP PACKAGE
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
BLACK
T IP+SP PACKAGE
T IP+SP+MIRROR+HANDLE PACKAGE
69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH
69293HSNAP, FRONT DOOR OUTSIDE HANDLE, LH
69310LOCK ASSY, FRONT DOOR, RH
69320LOCK ASSY, FRONT DOOR, LH
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
69749CLAMP, FRONT DOOR LOCK LINK
69750BLINK ASSY, FRONT DOOR INSIDE LOCKING, RH
MEDIUM GREY,TRIM1#
MEDIUM GREY,TRIM1#,2#
DARK GREY,TRIM1#
MEDIUM GREY,TRIM1#,2#
MEDIUM GREY,TRIM1#
DARK GREY,TRIM1#
69760ALINK ASSY, FRONT DOOR INSIDE LOCKING, LH
MEDIUM GREY,TRIM1#,2#
MEDIUM GREY,TRIM1#
DARK GREY,TRIM1#
MEDIUM GREY,TRIM1#
MEDIUM GREY,TRIM1#,2#
DARK GREY,TRIM1#
90105W0052
main90105-W0052
90148W0005
main90148-W0005
90148W0006
main90148-W0006
90178W0053
main90178-W0053
21 parts on this diagram · 1 diagram in section
