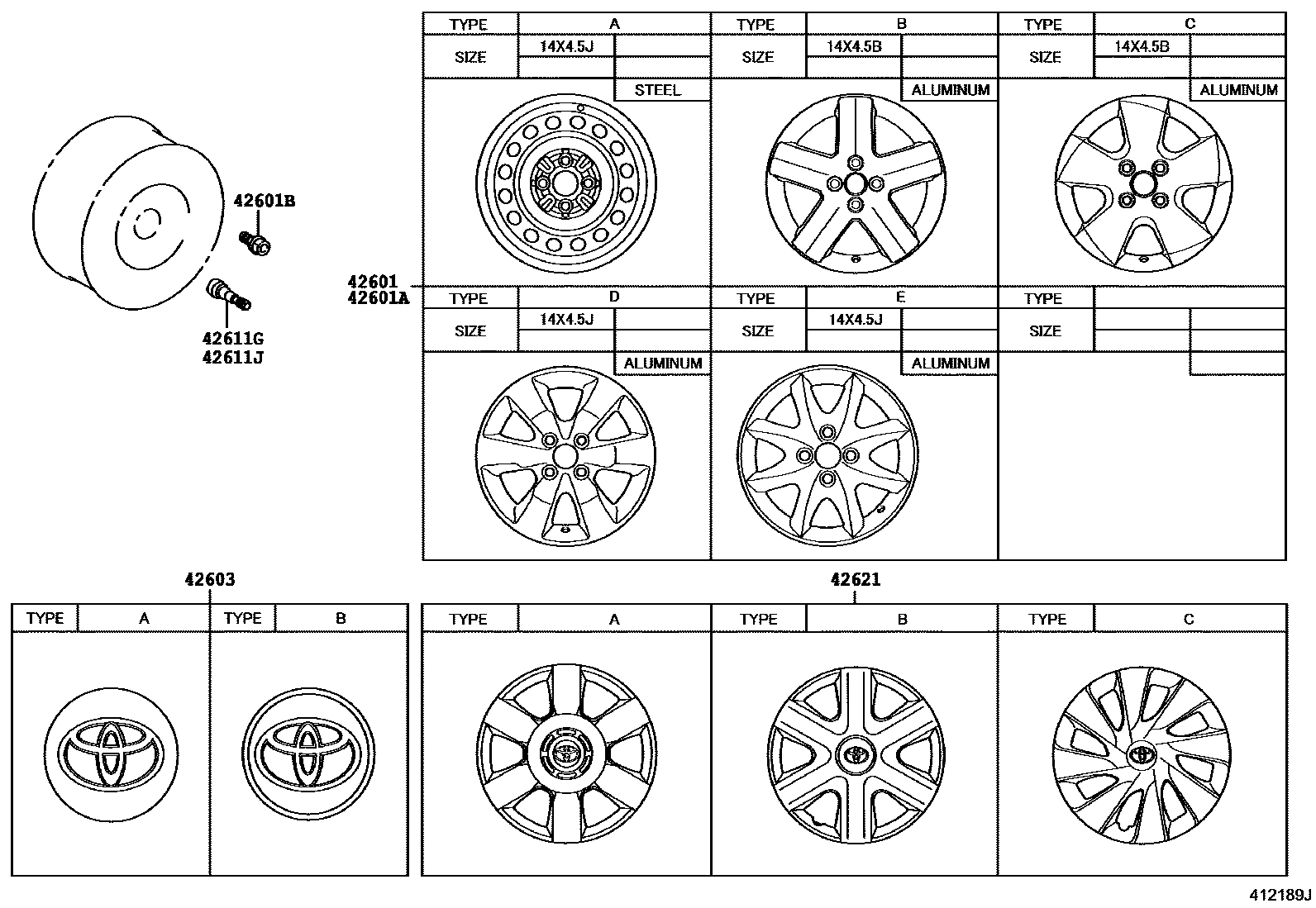

Toyota AYGO — DISC WHEEL & WHEEL CAP

0001 1 0002 1

42601WHEEL, DISC

main42611-0H010iKGB10,WNB10200502-201406

14X4.5J, #,TYPE A:REFER ILLUST.

42601AWHEEL, DISC (FOR SPARE)

main42611-0H010iKGB10,WNB10200502-201406

14X4.5J, #,TYPE A:REFER ILLUST.

42601BBOLT, HUB (FOR AXLE)

main90942-W2001iKGB10,WNB10200502-201202

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-0D060

main42603-YY080

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009iKGB10,WNB10200502-201406

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iKGB10,WNB10200502-201406

42621CAP, WHEEL

main42602-0H010iKGB10,WNB10200502-200812

TYPE A:REFER ILLUST.

main42602-0H040iKGB10,WNB10200812-201202

TYPE B:REFER ILLUST.

main42602-0H070iKGB10201202

TYPE C:REFER ILLUST.

7 parts on this diagram · 2 diagrams in section
