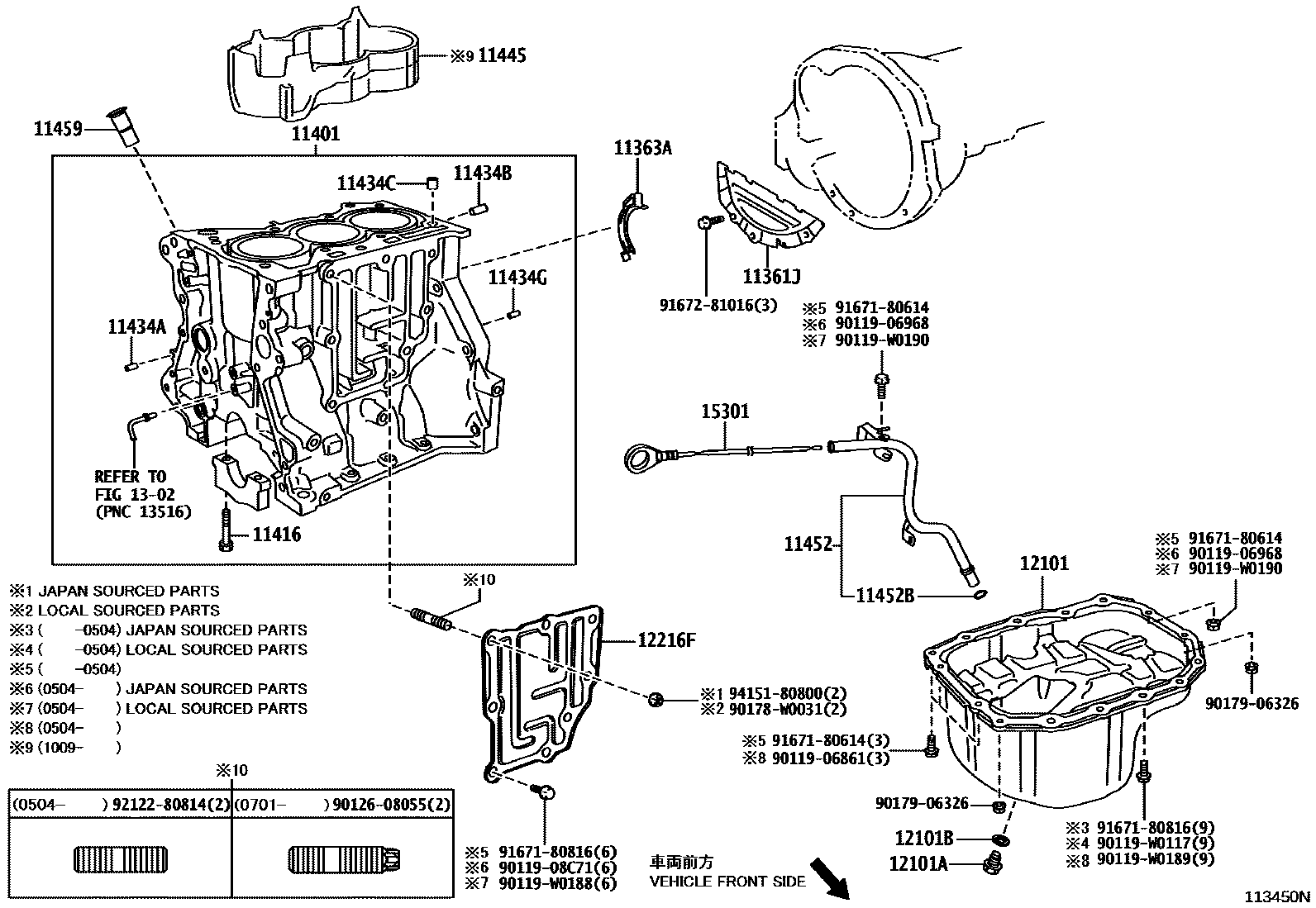

Toyota AYGO — CYLINDER BLOCK

0001 1 0002 1

11361JCOVER, FLYWHEEL HOUSING UNDER

main11361-0Q010i1KRFE..KGB10200502-201202

11363ACOVER, FLYWHEEL HOUSING SIDE

main11363-0Q010i1KRFE..KGB10200502-201202

(L)

main11363-40010i1KRFE..KGB10200502-201202

(J)

11401BLOCK SUB-ASSY, CYLINDER

main11401-0Q010i1KRFE..KGB10200502-200509

sub11401-40040

main11401-0Q011i1KRFE..KGB10200509-201310

sub11401-0Q030

sub11381-0Q020

main11401-0Q030i1KRFE..KGB10201310-201406

mainSU00100716i2WZTV..WNB10200505-201004

mainSU00100888i2WZTV..WNB10201004-201009

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90105-10531i1KRFE..KGB10200502-201406

11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)

main90250-06003i1KRFE..KGB10200502-201406

L=14,OD=6

11434BPIN, STRAIGHT(FOR CLUTCH HOUSING SET)

main90250-10214i1KRFE..KGB10200502-200503

L=14,OD=10

main90250-10232i1KRFE..KGB10200503-201406

L=15,OD=8

mainSU00100515i2WZTV..WNB10200505-201009

L=20,OD=14

11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)

main90253-12002i1KRFE..KGB10200502-201406

L=12,OD=12

11434GPIN, STRAIGHT(FOR END PLATE)

main90250-06003i1KRFE..KGB10200502-201406

11445SPACER, CYLINDER BLOCK WATER JACKET

main11445-40010i1KRFE..KGB10201009-201406

11452GUIDE, OIL LEVEL GAGE

main11409-40010i1KRFE..KGB10200502-201406

main11452-YV010i2WZTV..WNB10200505-201009

NO.2

mainSU00100588i2WZTV..WNB10200505-201009

subSU001-01197

11452BRING, O(FOR OIL LEVEL GAGE GUIDE)

main96721-19010i1KRFE..KGB10200502-201406

mainSU00100855i2WZTV..WNB10200505-201009

11459SUPPORT, OIL LEVEL GAGE GUIDE

main11459-40010i1KRFE..KGB10200502-201406

12101PAN SUB-ASSY, OIL

main12101-0Q010i1KRFE..KGB10200502-200804

sub12101-0Q011

main12101-0Q011i1KRFE..KGB10200804-201406

mainSU00100578i2WZTV..WNB10200505-201009

12101APLUG(FOR OIL PAN DRAIN)

main90341-12032i1KRFE..KGB10200502-201406

mainSU00100579i2WZTV..WNB10200505-201009

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90080-43037i1KRFE..KGB10200502-201406

mainSU00100580i2WZTV..WNB10200505-200704

subSU001-00823

mainSU00100823i2WZTV..WNB10200705-201009

12216FPLATE, VENTILATION BAFFLE

main12216-40020i1KRFE..KGB10200502-201406

1302

15301GAGE SUB-ASSY, OIL LEVEL

main15301-0Q010i1KRFE..KGB10200502-201406

main15301-YV011i2WZTV..WNB10200505-200611

sub15301-YV012

main15301-YV012i2WZTV..WNB10200612-201009

9011906861

main90119-06861

9011906968

main90119-06968

9011908C71

main90119-08C71

90119W0117

main90119-W0117

90119W0188

main90119-W0188

90119W0189

main90119-W0189

90119W0190

main90119-W0190

9012608055

main90126-08055

90178W0031

main90178-W0031

9017906326

main90179-06326

9167180614

main91671-80614

9167180816

main91671-80816

9167281016

main91672-81016

9212280814

main92122-80814

9415180800

main94151-80800

33 parts on this diagram · 2 diagrams in section
