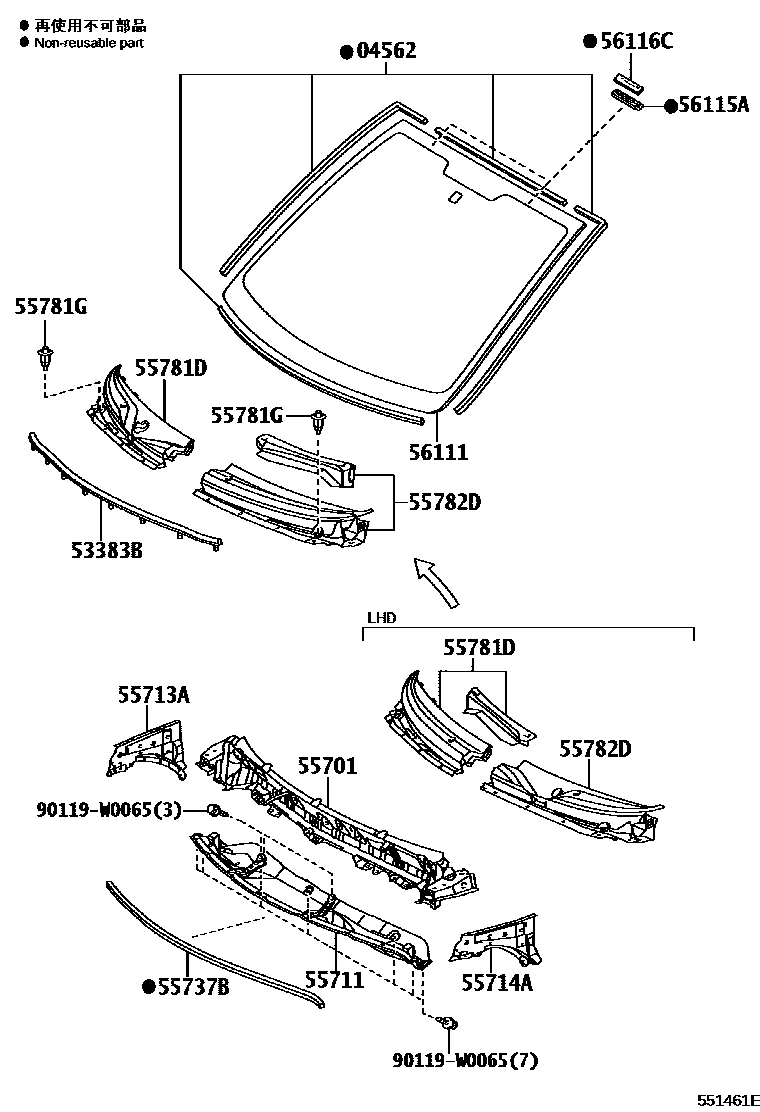

Toyota AYGO — COWL PANEL & WINDSHIELD GLASS

0001 1 0002 1

04562DAM KIT, WINDSHIELD GLASS

main04562-0H010iWNB10200502-201202

53383BSEAL, HOOD TO COWL TOP

main53383-0H010iKGB10,WNB10200502-201202

main53383-0H020iKGB10201202

55701PANEL SUB-ASSY, COWL

main55700-0H020iKGB10,WNB10..RHD200502-201405

main55700-0H040iKGB10,WNB10..LHD200502-201405

55711PANEL, COWL TOP, OUTER

main55701-0H010iWNB10..RHD200502-201202

main55701-0H020iWNB10..LHD200502-201202

main55701-0H030iKGB10..RHD201202

main55701-0H040iKGB10..LHD201202

55713APANEL, COWL TOP SIDE, RH

main55713-0H010iKGB10,WNB10200502-201405

55714APANEL, COWL TOP SIDE, LH

main55714-0H010iKGB10,WNB10200502-201405

55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1

main55737-0H010iKGB10,WNB10200502-201206

sub55737-0H011

main55737-0H011iKGB10201207

55781DLOUVER, COWL TOP VENTILATOR, RH

main55708-0H010iKGB10..LHD200502-201202

main55708-0H020iKGB10,WNB10..RHD200502-201202

main55708-0H050iWNB10..LHD200505-201009

main55708-0H070iKGB10..RHD201202

main55708-0H090iKGB10..LHD201202

55781GCLIP, COWL TOP VENTILATOR LOUVER

main90467-W0008-C0iKGB10,WNB10200502-201405

BLACK

55782DLOUVER, COWL TOP VENTILATOR, LH

main55709-0H010iKGB10..LHD200502-201202

main55709-0H020iKGB10..RHD200502-201202

main55709-0H050iWNB10..RHD200505-201009

56111GLASS, WINDSHIELD

main56101-0H010iKGB10,WNB10200502-200704

*LAM,T=4.56,GREEN

sub56101-0H011

main56101-0H011iKGB10,WNB10200705-200803

*LAM,T=4.56,GREEN

sub56101-0H020

main56101-0H020iKGB10200803-201202

*LAM,T=4.56,GREEN

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30100iKGB10,WNB10200502-201202

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050iKGB10,WNB10200502-201202

90119W0065

main90119-W0065

14 parts on this diagram · 2 diagrams in section
