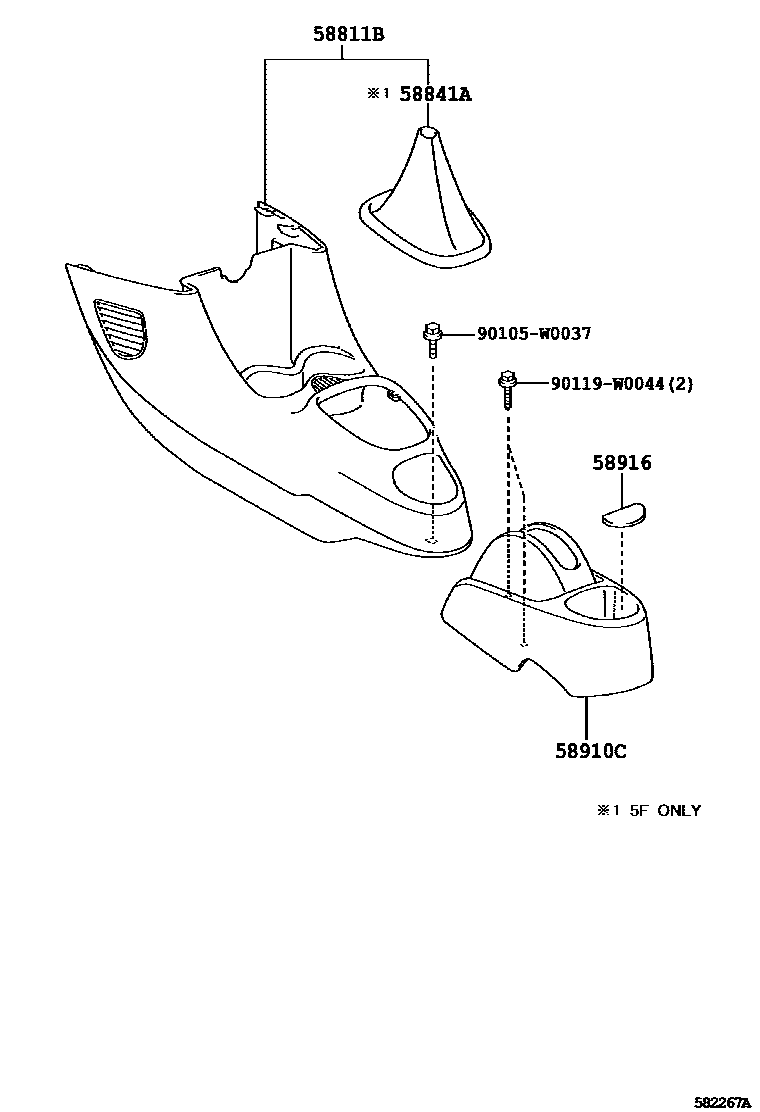

Toyota AYGO — CONSOLE BOX & BRACKET

0001 1 0002 1

58811BBOX, CONSOLE

main58811-0H010-B0iKGB10,WNB10200502-200812

MEDIUM GREY,TRIM1#

main58811-0H010-B1iKGB10201202-201406

DARK GREY,TRIM1#

58841ACOVER, SHIFTING HOLE

main58841-0H010-B0iKGB10,WNB10..5F200502-200812

DARK GREY,TRIM1#

58910CBOX ASSY, CONSOLE, REAR

main58911-0H010-B0iKGB10,WNB10200502-200812

MEDIUM GREY,TRIM1#

main58911-0H010-B1iKGB10201202-201406

DARK GREY,TRIM1#

58916MAT, BOX BOTTOM

main58916-0H010iKGB10,WNB10200502-200812

90105W0037

main90105-W0037

90119W0044

main90119-W0044

6 parts on this diagram · 2 diagrams in section
