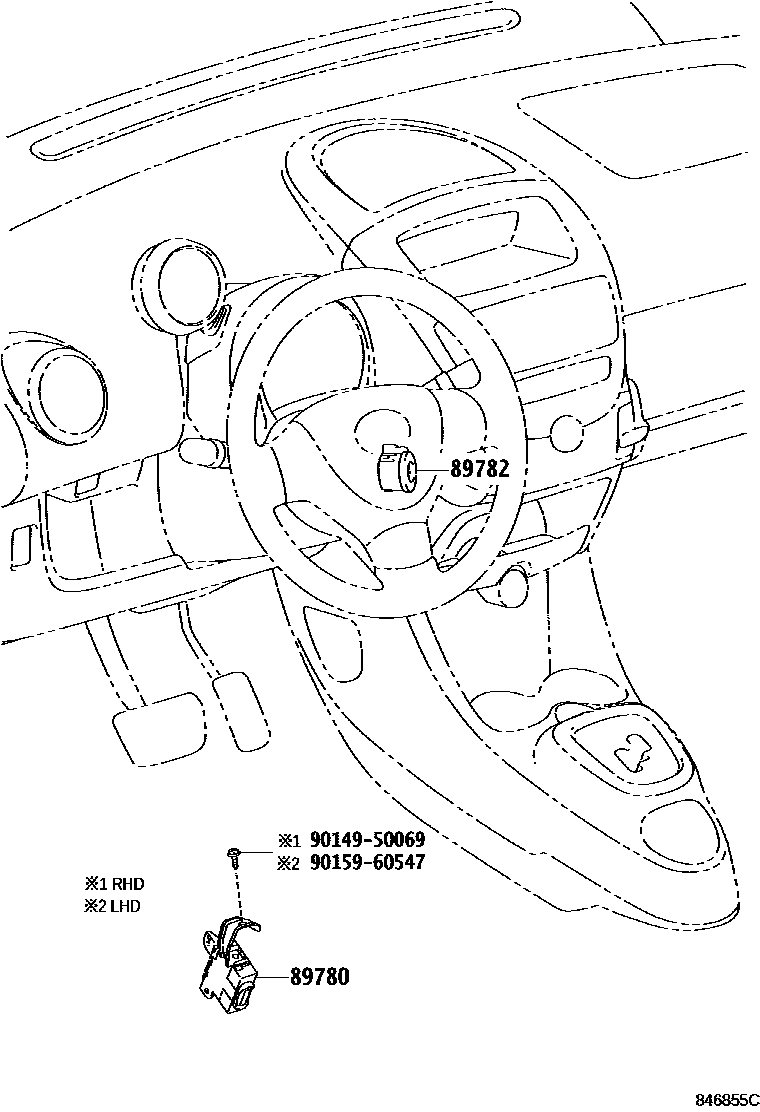

Toyota AYGO — ANTI-THEFT DEVICE

89780COMPUTER ASSY, TRANSPONDER KEY

main89780-0H010iKGB10,WNB10..RHD200502-200702

sub89780-0H011

main89780-0H011iKGB10..RHD200703-201202

main89780-0H020iKGB10,WNB10..LHD200502-200702

sub89780-0H021

main89780-0H021iKGB10..LHD200703-201202

89782COIL, TRANSPONDER KEY

main89782-0H010iKGB10,WNB10200502-201202

9014950069

main90149-50069

9015960547

main90159-60547

4 parts on this diagram · 1 diagram in section
