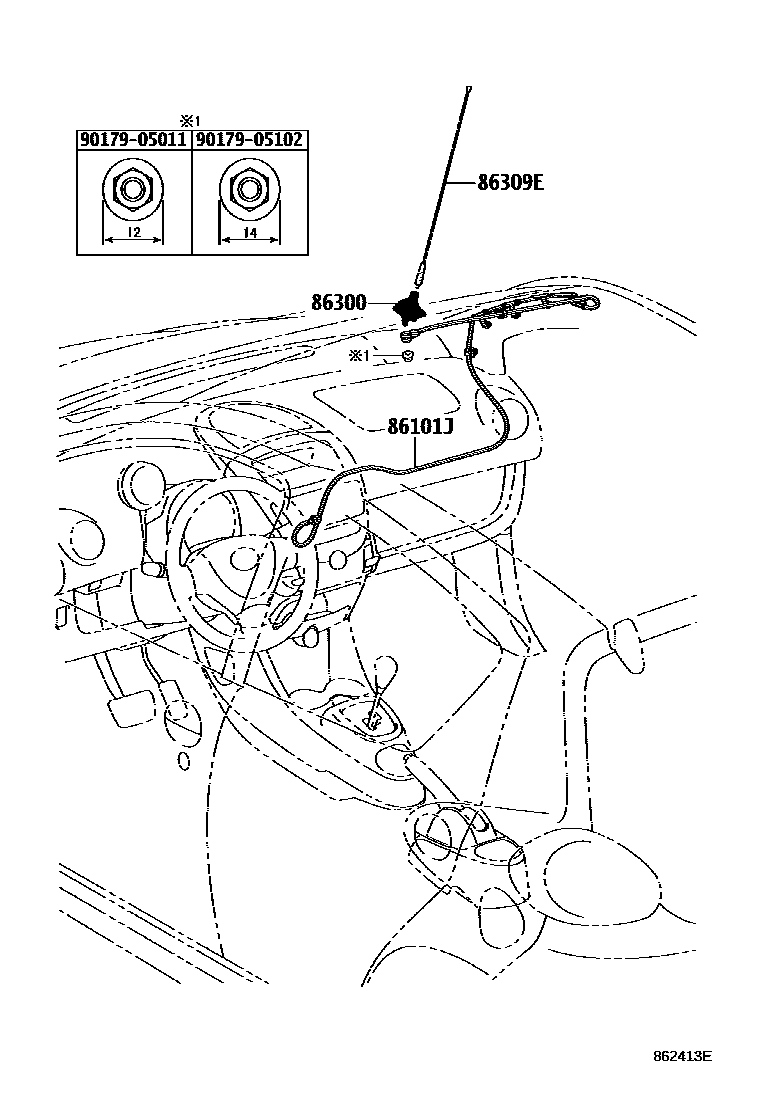

Toyota AYGO — ANTENNA

86101JCORD SUB-ASSY, ANTENNA, NO.2

main86101-0H010iKGB10,WNB10..RHD200502-201308

main86101-0H011iKGB10..RHD201308

main86101-0H020iKGB10..LHD200502-201308

main86101-0H021iKGB10..LHD201308

86300ANTENNA ASSY, W/HOLDER

main86300-0H010iKGB10,WNB10200502-201308

main86300-0H011iKGB10201308

86309EPOLE SUB-ASSY, ROOF ANTENNA

main86309-0H010iKGB10,WNB10200502-201202

9017905011

main90179-05011

9017905102

main90179-05102

5 parts on this diagram · 1 diagram in section
