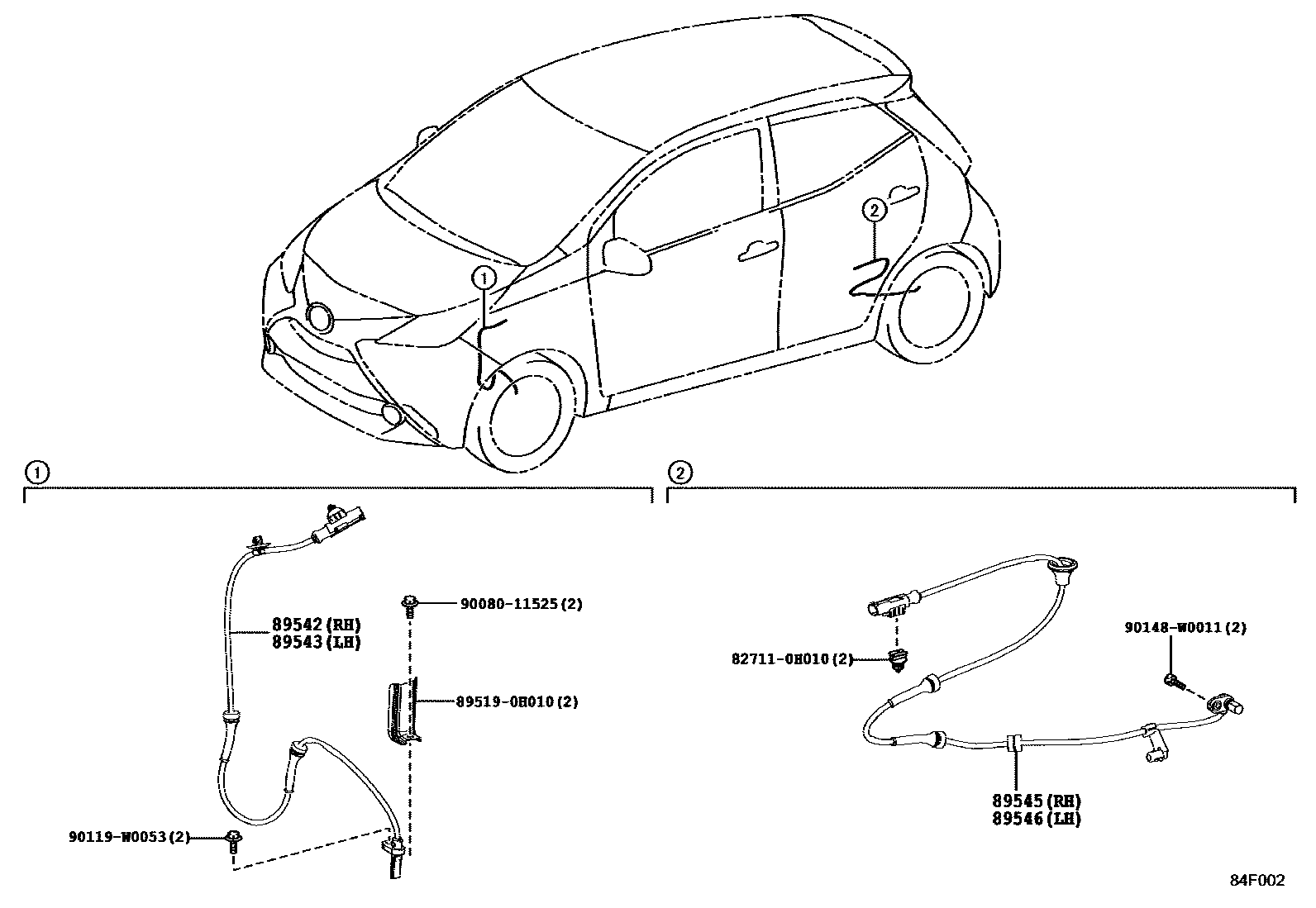

Toyota AYGO — ABS & VSC

89542SENSOR, SPEED, FRONT RH

main89542-0H030i201405-201805

main89542-0H040i201405-201805

VSC-WITHOUT

89543SENSOR, SPEED, FRONT LH

main89542-0H030i201805

main89542-0H040i201405-201805

VSC-WITHOUT

89545SENSOR, SPEED, REAR RH

main89544-0H020i201405-201805

89546SENSOR, SPEED, REAR LH

main89544-0H020i201405-201805

827110H010WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-0H010

895190H010BRACKET, POWER SUPPLY

main89519-0H010

9008011525

main90080-11525

90119W0053

main90119-W0053

90148W0011

main90148-W0011

9 parts on this diagram · 1 diagram in section

ABS & VSC for Toyota AYGO

This section contains 9 genuine Toyota parts for the ABS & VSC system of the Toyota AYGO. Key components include: SENSOR, SPEED, FRONT RH, SENSOR, SPEED, FRONT LH, SENSOR, SPEED, REAR RH, SENSOR, SPEED, REAR LH, WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER).
