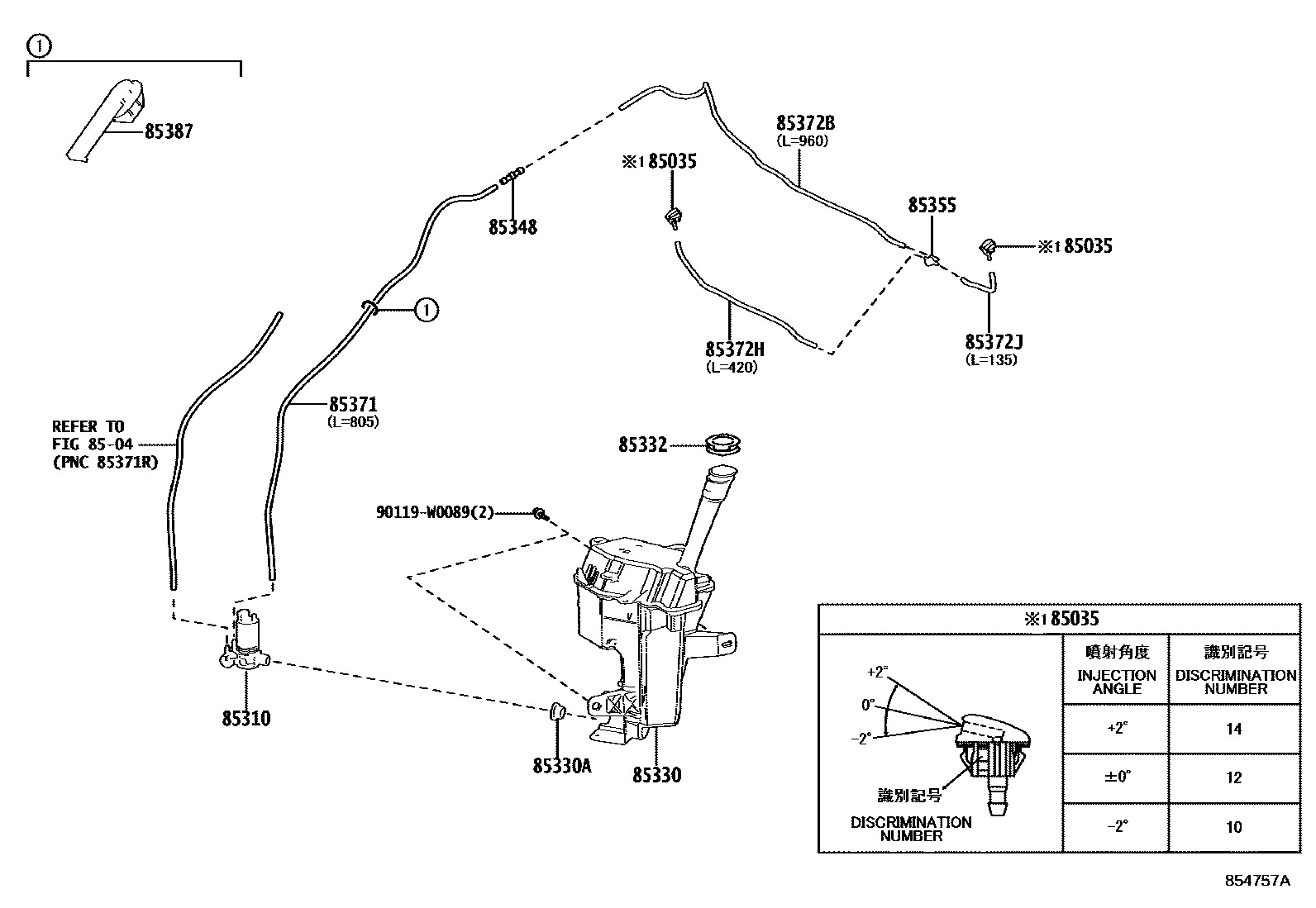

Toyota AYGO X — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-52430×2i202203-202401

ANGLE 0

main85381-52440×2i202203-202401

ANGLE -2

main85381-52450×2i202203-202401

ANGLE +2

8504REAR WASHER

→ Go to FIG 85-04

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-02070i202203-202304

main85330-0D110i202304-202401

85330JAR ASSY, WINDSHIELD WASHER

main85315-K0070i202203-202401

85330ABUSH, WINDSHIELD WASHER JAR

main90069-20005i202203-202401

85332CAP, WINDSHIELD WASHER JAR

main85316-0D010i202203

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85375-05050i202203-202401

85355VALVE, WINDSHIELD WASHER HOSE

main85376-02240i202203-202401

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90069-16009i202203-202401

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90069-16009i202203-202401

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90069-16009i202203-202401

85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4

main90069-16009i202203-202401

85387CLAMP NO.1 (FOR WINDSEIELD WASHER)

main82711-52090i202203-202401

90119W0089

main90119-W0089

14 parts on this diagram · 2 diagrams in section

WINDSHIELD WASHER for Toyota AYGO X

This section contains 14 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota AYGO X. Key components include: NOZZLE SUB-ASSY, WASHER, REAR WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, JAR ASSY, WINDSHIELD WASHER, BUSH, WINDSHIELD WASHER JAR.
