Toyota AYGO X — WATER PUMP

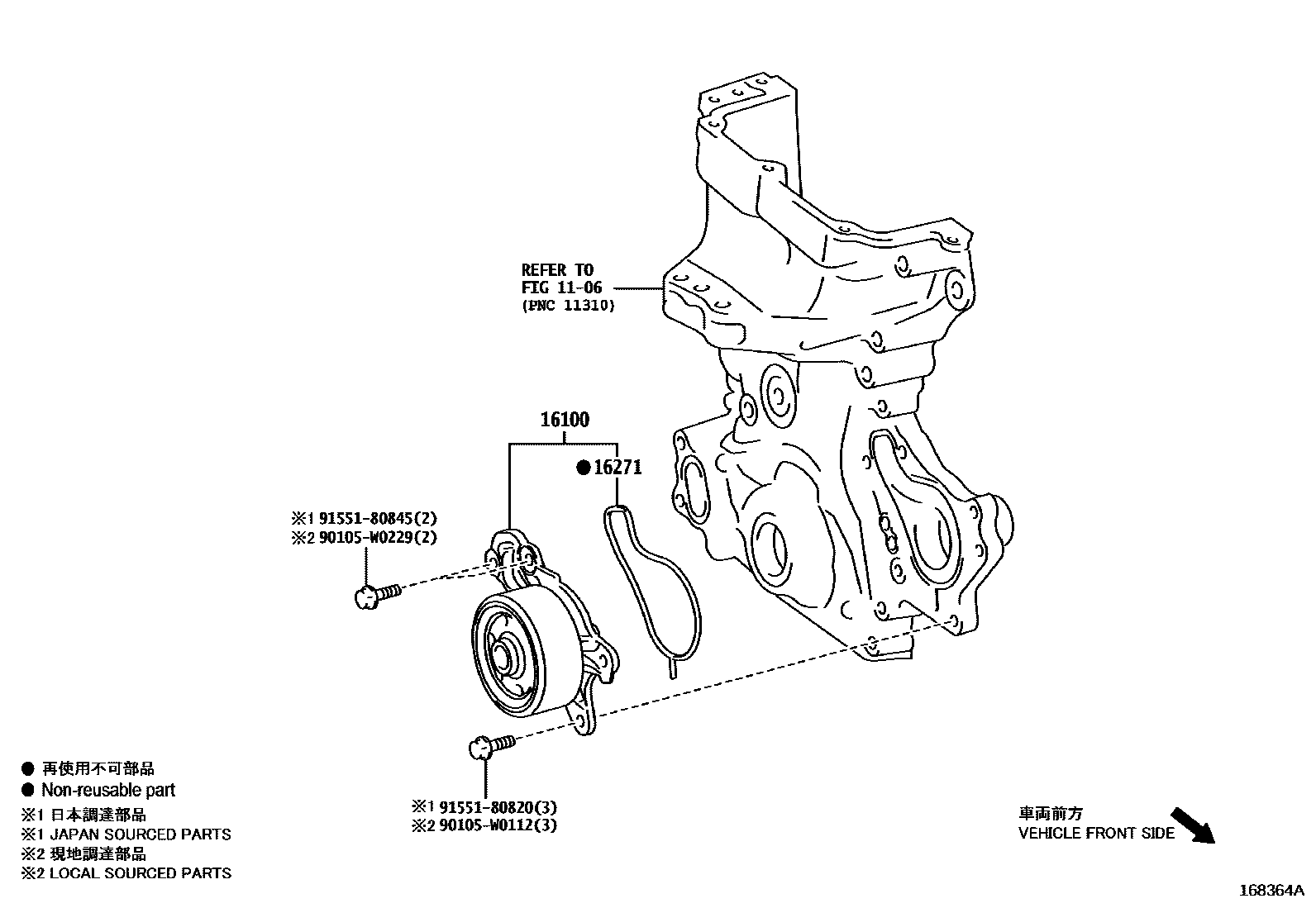

Parts diagram

1106TIMING GEAR COVER & REAR END PLATE

→ Go to FIG 11-06

16100PUMP ASSY, ENGINE WATER

main16100-09781i202203-202401

16271GASKET, WATER PUMP

main16271-0Q020i202203-202401

90105W0112

main90105-W0112

90105W0229

main90105-W0229

9155180820

main91551-80820

9155180845

main91551-80845

7 parts on this diagram · 1 diagram in section

WATER PUMP for Toyota AYGO X

This section contains 7 genuine Toyota parts for the WATER PUMP system of the Toyota AYGO X. Key components include: TIMING GEAR COVER & REAR END PLATE, PUMP ASSY, ENGINE WATER, GASKET, WATER PUMP.
