Toyota AYGO X — STARTER

28011CLUTCH SUB-ASSY, STARTER

main28011-0Q120i202203-202401

28100STARTER ASSY

main28100-0Q170i202203-202401

12V 1.0KW

28110HOUSING ASSY, STARTER DRIVE

main28110-0Q120i202203-202401

28112BOLT, HOUSING SET

main28112-0Q120i202203-202401

28113LEVER, STARTER PINION DRIVE

main28113-0Q170i202203-202401

28120YOKE ASSY, STARTER

main28120-0Q170i202203-202401

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-0Q120i202203-202401

28150SWITCH ASSY, MAGNET STARTER

main28150-0Q170i202203-202401

28160ARMATURE ASSY, STARTER

main28160-0Q120i202203-202401

90105W0268

main90105-W0268

90178W0031

main90178-W0031

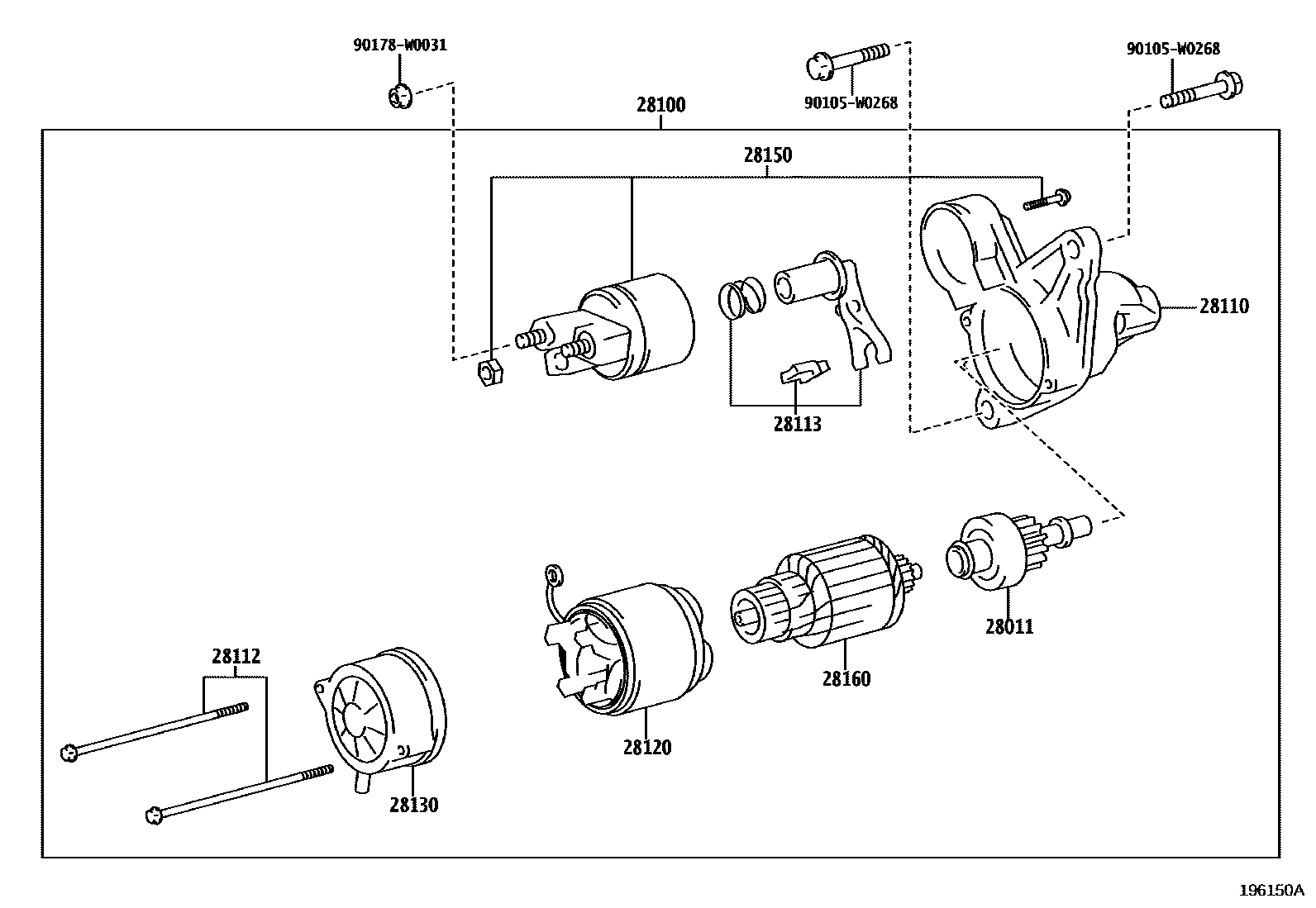

11 parts on this diagram · 1 diagram in section

STARTER for Toyota AYGO X

This section contains 11 genuine Toyota parts for the STARTER system of the Toyota AYGO X. Key components include: CLUTCH SUB-ASSY, STARTER, STARTER ASSY, HOUSING ASSY, STARTER DRIVE, BOLT, HOUSING SET, LEVER, STARTER PINION DRIVE.
