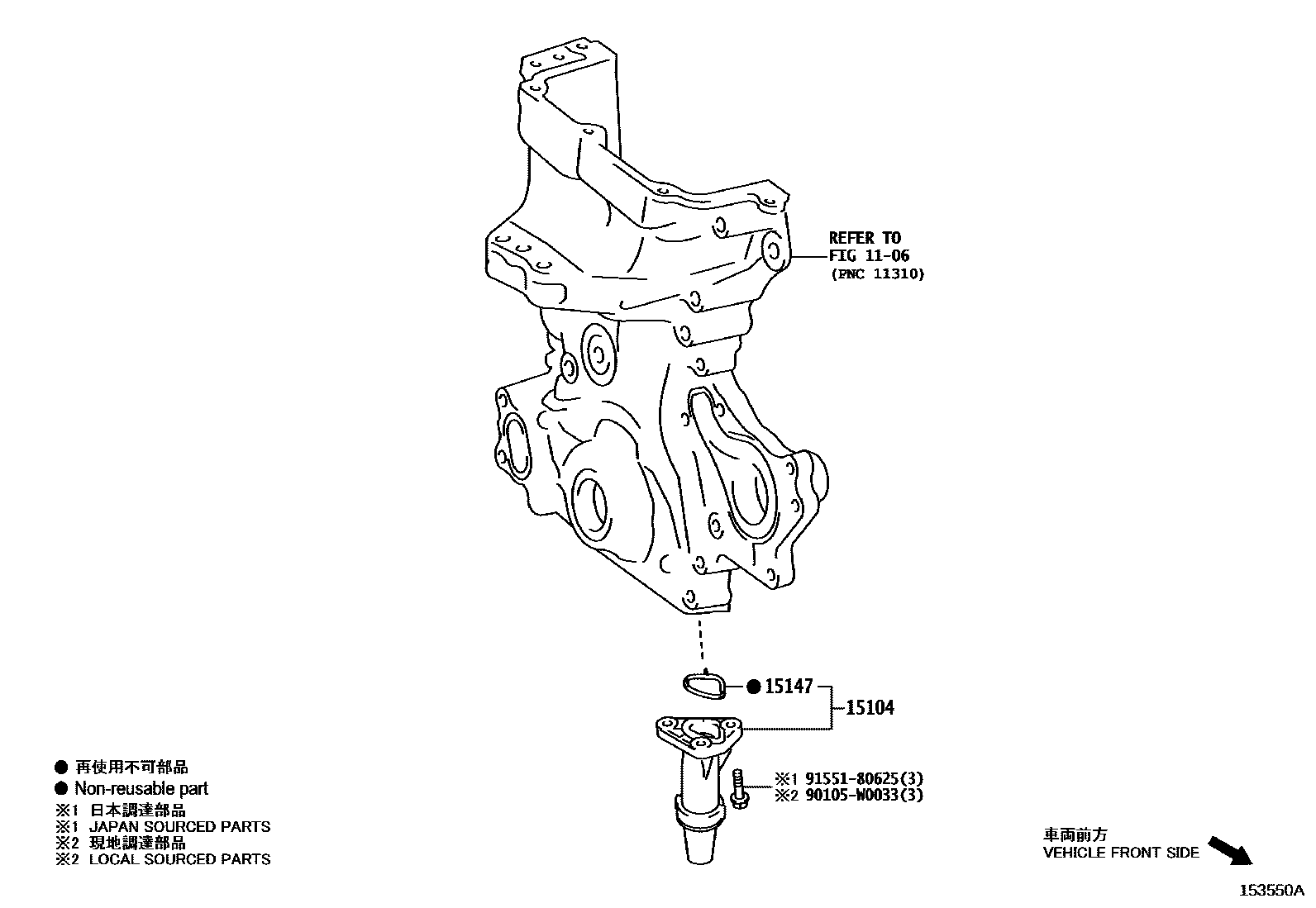

Toyota AYGO X — ENGINE OIL PUMP

1106TIMING GEAR COVER & REAR END PLATE

→ Go to FIG 11-06

15104STRAINER SUB-ASSY, OIL

main15104-0Q040i202203-202401

15147GASKET, OIL STRAINER

main15147-0Q020i202203-202401

90105W0033

main90105-W0033

9155180625

main91551-80625

5 parts on this diagram · 1 diagram in section

ENGINE OIL PUMP for Toyota AYGO X

This section contains 5 genuine Toyota parts for the ENGINE OIL PUMP system of the Toyota AYGO X. Key components include: TIMING GEAR COVER & REAR END PLATE, STRAINER SUB-ASSY, OIL, GASKET, OIL STRAINER.
