Toyota AVENSIS — WINDSHIELD WIPER

85010MOTOR & LINK ASSY, FR WIPER

main85010-05090i201107-201111

85211BARM, FRONT WIPER, RH

main85211-05100i201107-201111

85211CARM, FRONT WIPER, RH(DOP)

main85211-20490i201107-201111

85212ABLADE, FR WIPER, RH

main85212-05110i201107-201111

85214ARUBBER, WIPER, RH

main85214-05150i201107-201111

85214BRUBBER, WIPER, LH

main85214-05140i201107-201111

85221BARM, FRONT WIPER, LH

main85221-05100i201107-201111

85221DARM, FRONT WIPER, LH(DOP)

main85221-47080i201107-201111

85222ABLADE, FR WIPER, LH

main85222-05080i201107-201111

85291ABLADE, FRONT WIPER, WINTER, RH

main85291-47040i201107-201111

85291BBLADE, FRONT WIPER, WINTER, LH

main85291-28150i201107-201111

85292BCAP, FRONT WIPER ARM HEAD

main85292-13010×2i201107-201111

89941SENSOR, RAIN

main89941-05030i201107-201111

89943COVER, RAIN SENSOR

main89943-05050i201107-201111

89944TAPE, RAIN SENSOR

main89944-05020i201107-201111

8994305010COVER, RAIN SENSOR

main89943-05010

90119W0082

main90119-W0082

9018210006

main90182-10006

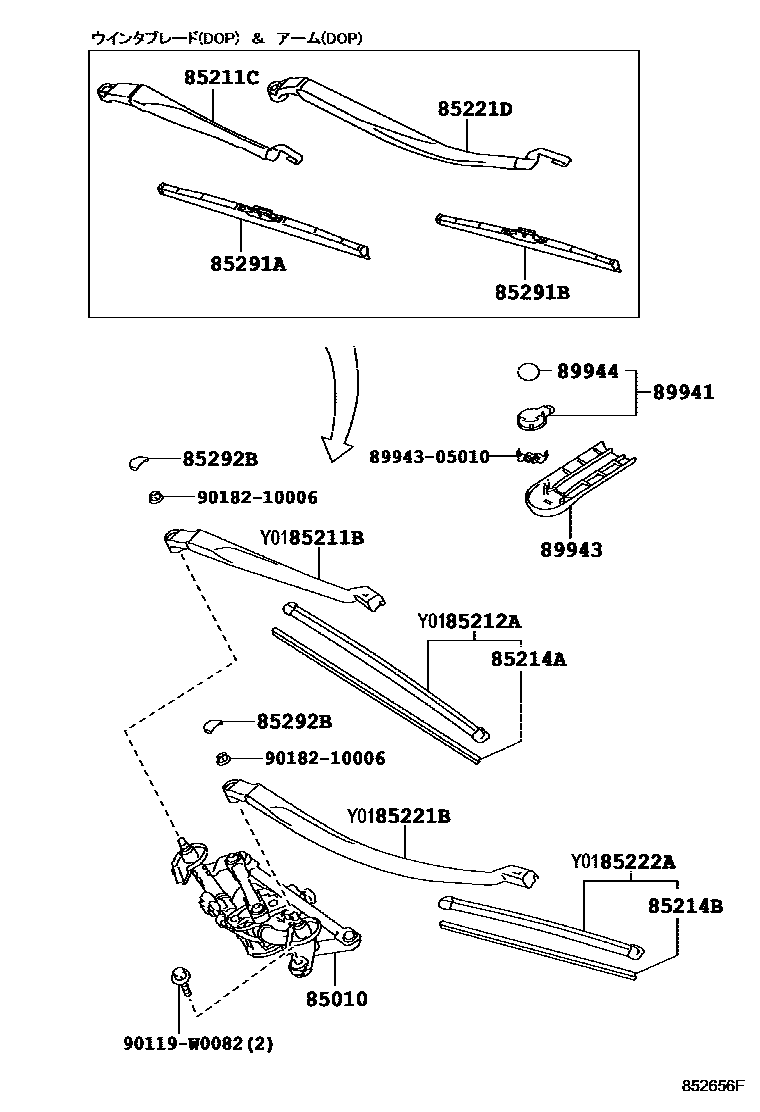

18 parts on this diagram · 1 diagram in section

WINDSHIELD WIPER for Toyota AVENSIS

This section contains 18 genuine Toyota parts for the WINDSHIELD WIPER system of the Toyota AVENSIS. Key components include: MOTOR & LINK ASSY, FR WIPER, ARM, FRONT WIPER, RH, ARM, FRONT WIPER, RH(DOP), BLADE, FR WIPER, RH, RUBBER, WIPER, RH.
