Toyota AVENSIS — WINDSHIELD WASHER

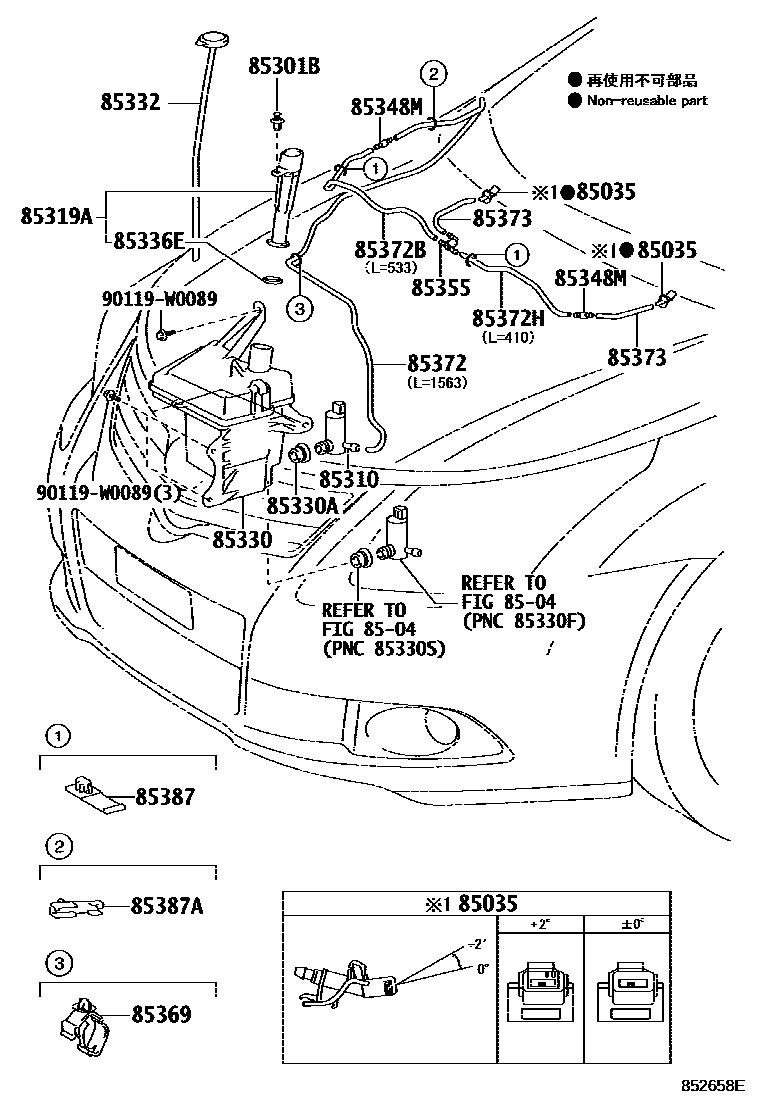

Parts diagram
85035NOZZLE SUB-ASSY, WASHER
main85381-20230×2i201507
main85381-20300×2i201507
main85381-20310×2i201507
main85381-30110×2i201107-201111
main85381-30150×2i201202-201505
8504REAR WASHER
→ Go to FIG 85-04
85301INLET SUB-ASSY, WASHER
main85301-05011i201311-201505
85301BCLIP, WASHER
main90467-07076-C0i201107-201111
BLACK
main90467-07076-C7i201703
BLACK
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
main85330-02030i201202-201505
85319AHOSE, INLET
main90069-46037i201107-201111
85330JAR ASSY, WINDSHIELD WASHER
main85315-05140i201107-201111
85330ABUSH, WINDSHIELD WASHER JAR
main90069-20005i201107-201111
85332CAP, WINDSHIELD WASHER JAR
main85356-02060i201107-201111
85336EPACKING, WINDSHIELD WASHER INLET HOSE
main90069-38005i201202-201505
85348MJOINT, WINDSHIELD WASHER HOSE, NO.3
main85375-05050×2i201107-201111
85355VALVE, WINDSHIELD WASHER HOSE
main85321-28020i201107-201111
85369CLAMP
main82711-1E350i201107-201111
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
main90069-16010i201107-201111
85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
main90069-16009i201107-201111
85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
main90069-16009i201107-201111
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
main90099-33080×2i201107-201111
85387CLAMP NO.1 (FOR WINDSEIELD WASHER)
main82711-3A540×2i201107-201111
85387ACLAMP, WASHER, NO.2
main85387-02240i201107-201111
main85387-12840i201507
90119W0089
main90119-W0089

20 parts on this diagram · 3 diagrams in section

WINDSHIELD WASHER for Toyota AVENSIS

This section contains 20 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota AVENSIS. Key components include: NOZZLE SUB-ASSY, WASHER, REAR WASHER, INLET SUB-ASSY, WASHER, CLIP, WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER.
