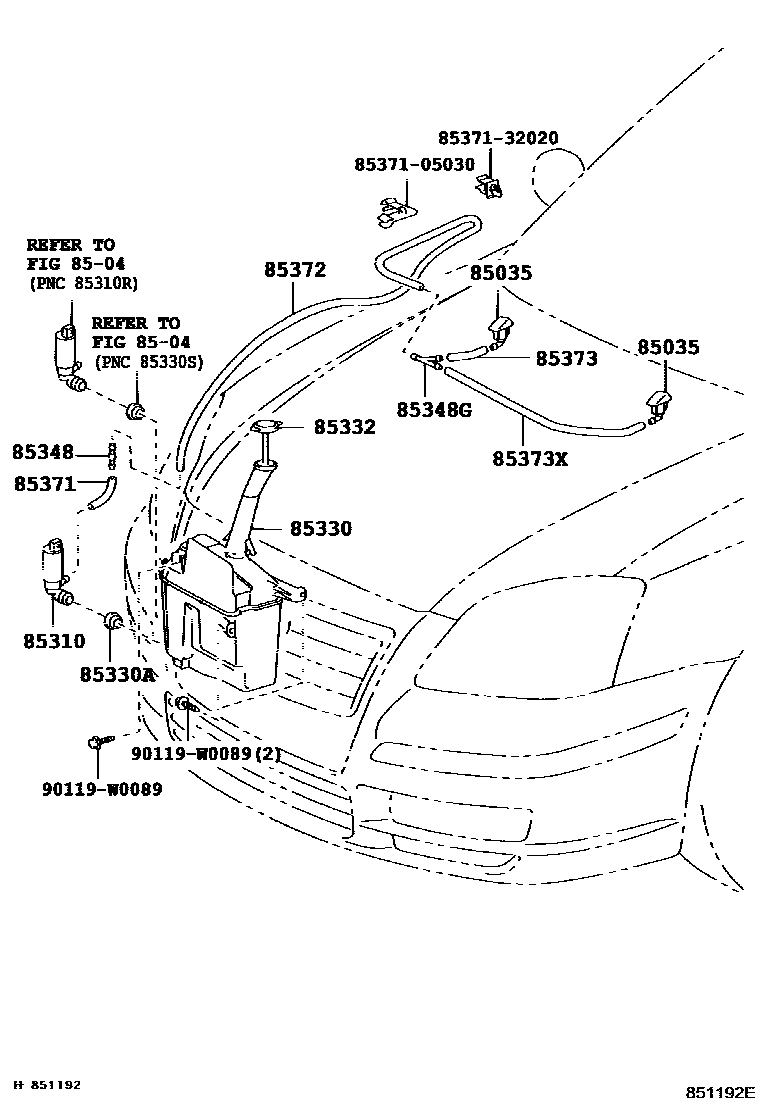

Toyota AVENSIS — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-05040×2i200307-200504

main85381-05041×2i200505-200606

8504REAR WASHER

→ Go to FIG 85-04

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-05030i200307-200505

main85330-05031i200606

85330JAR ASSY, WINDSHIELD WASHER

main85315-02090i200307-200606

main85315-05110i200307-200606

85330ABUSH, WINDSHIELD WASHER JAR

main90069-20005i200307-200606

85332CAP, WINDSHIELD WASHER JAR

main85316-02090i200307-200606

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85375-05050i200307-200606

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85378-05030i200307-200606

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90069-46011i200307-200606

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90069-46012i200307-200606

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90069-16009i200307-200606

85373XHOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE), NO.2

main90069-16009i200307-200606

8537105030HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-05030

8537132020HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-32020

90119W0089

main90119-W0089

15 parts on this diagram · 1 diagram in section

WINDSHIELD WASHER for Toyota AVENSIS

This section contains 15 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota AVENSIS. Key components include: NOZZLE SUB-ASSY, WASHER, REAR WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, JAR ASSY, WINDSHIELD WASHER, BUSH, WINDSHIELD WASHER JAR.
